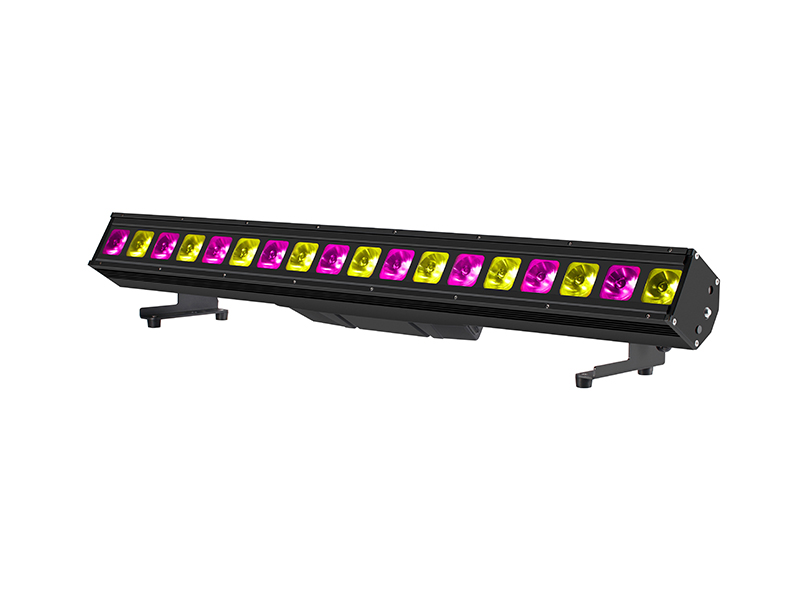

1830 BAR IP
IP66 18x30W high power LED wall wash BAR
1830 BAR IP Hex is an exceptionally powerful IP65 bar, highlumen delivery ouput and ready for all weathers.
● 18x30W RGBW
● Individual pixel control
● Unique square lens design
● IP66 Rating
| SPECIFICATIONS |
|
LIGHT SOURCE ● Light source: 18x30W RGBW ● Life expectancy: 50000hours OPTICS ● Beam angle: 6° DYNAMIC EFFECTS ● Standalone Color Mixing: Yes ● 0-10 dim smoothly and not color drafting ● Built-in Automated Programs: Yes ● Individual pixel control: Yes CONTROL ● Protocols: DMX512, RDM ● Display: LCD ● Channels: 9/72/74 CHs |
ELECTRONICS ● Dimmer: linear 0 ~ 100% electronic 16bit dimmer ● Strobe Rate: 0 to 30Hz ● Operating temperature: -20° ~ +45° ELECTRICAL ● Mains power supply: 100-240VAC- 50/60Hz ● Max power consumption: 400W PHYSICAL ● Housing Material: Aluminum, black ● Cooling: Temp controlled, noiseless fan for forced air ● Signal connection: Seetronic XLR 3/5p IN/OUT ● Power connection: Seetronic powerCON TRUE1 In/Out ● Dimensions: 1002x90x90mm ● Weight: 8.0kgs ● IP rating: IP66 CERTIFICATIONS ● Certifcations: CE,RoHS Standard Included ● 1x 1830 BAR IP ● 1x 1.5m Seetronic Powerkon IP65 power cord ● 2x Omega ● 1x Manual ● 1x Safety Cable ● 1x Diffuser Optional Accessories ● Flight case 4-in1 ● IP DMX Cable ● Splicing components ● Stand |
| DIMENSION |
| Filename | size | Uploaded | Download |
| Datesheet | |||
 1830 BAR IP_datasheet.pdf |
150k | 2025-07-01 |  |
