P6 - Guangzhou Crolighting CO., LTD

P6

600W BSWF

P6 is an exceptionally powerful IP20 moving BSWF, high lumen delivery output, high CRI>90.

● 600W LED source 7000K white
● 72000lux @5meter
● IP20

SPECIFICATIONS

LIGHT SOURCE

● LED: 600W 7000K WHITE
● Life expectancy: 50000 hours
● CRI: Ra≥90
● CTO: 3000K~ 7000K

OPTICS

● Beam angle: 4°~45°

DYNAMIC EFFECTS

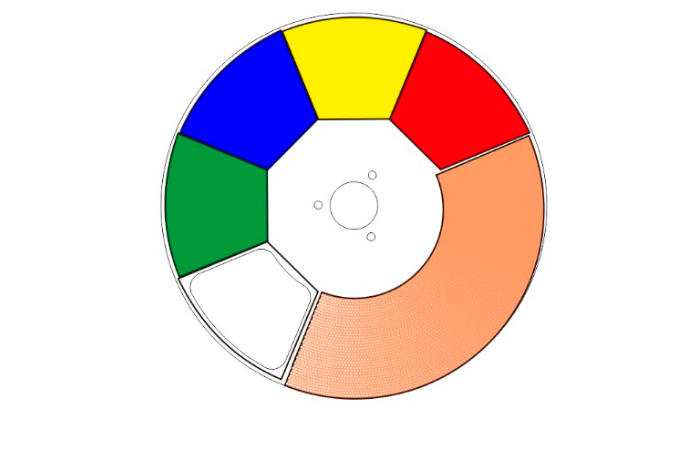

● Color: 1 color wheel, 4 colors + CTO+ open

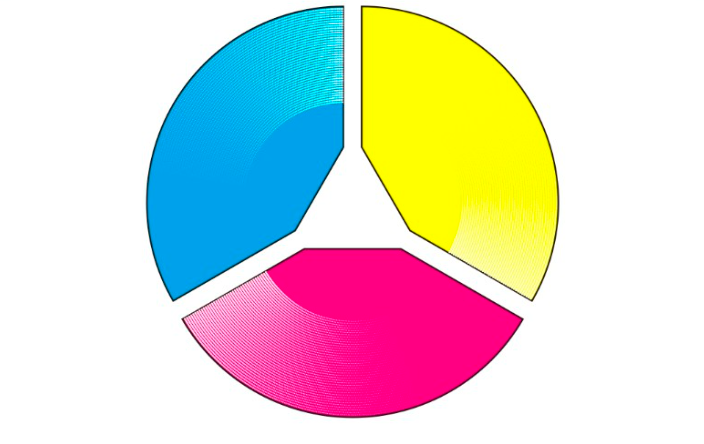

● 1x CMY wheel

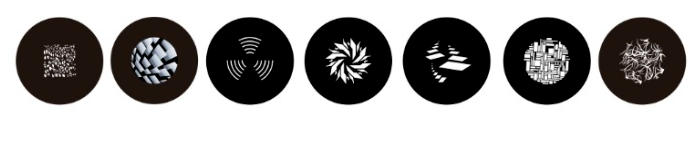

● Rotating gobos: 7 rotating glass gobos + open

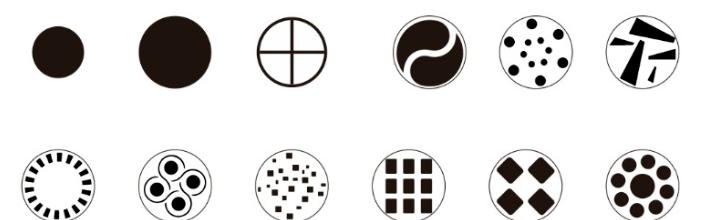

● Fixed gobos: 11 gobos + open
● Prism: 3-prism
● Movement: Pan 540°, Titl 270°
● Focus: motorized focus
● Framing system: electronic, 4 shutter blades

CONTROL

● Protocols: DMX512, RDM, (optional Art-Net, sACN)
● Channels: 36 Chs
● Display: LCD

ELECTRONICS

● Dimmer: linear 0 ~ 100% electronic dimmer, 16 bit
● Strobe: 1-25 Hz
● Operating temperature: -20° ~ +45°

ELECTRICAL

● Mains power supply: 100-240V - 50/60Hz
● Max power consumption: 750 W

PHYSICAL

● Body: Flame-retardant plastic(V0), black
● Cooling: Temp controlled, overheating protection
● Signal connection: Seetronic XLR 3/5p IN/OUT
● Power connection: Seetronic powerCON IN/OUT
● Dimensions: 403x309x659.9 mm
● Weight: 28.0 kgs
