P10

1000W BSWF

P10 is an exceptionally powerful IP66 moving BSWF, high lumen delivery output, high CRI>95.

1000W LED source 7000K white
72000lux @5meter
IP20

SPECIFICATIONS



LIGHT SOURCE

LED: 1000W 7000K WHITE
Life expectancy: 50000 hours
CRI: Ra≥95
CTO: 3000K~ 7000K

OPTICS

Beam angle: 4°~36°

DYNAMIC EFFECTS

Color: 1 color wheel, 6 colors + open
1x CMY wheel
Rotating gobos: 6 rotating glass gobos + open

Fixed gobos: 10 gobos + open
Prism: 3-prism
Movement: Pan 540°, Titl 270°
Focus: motorized focus
Framing system: electronic, 4 shutter blades

CONTROL

Protocols: DMX512, RDM, (optional Art-Net, sACN)
Channels: 36 Chs
Display: LCD

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer, 16 bit
Strobe: 1-25 Hz
Operating temperature: -20° ~ +45°

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption : 1150 W

PHYSICAL

Body: Flame-retardant plastic(V0), black
Cooling: Temp controlled, overheating protection
Signal connection: Seetronic XLR 3/5p IN/OUT
Power connection: Seetronic powerCON IN/OUT
Dimensions: 420x310x755 mm
Weight: 36.0 kgs

IP rating: IP20

CERTIFICATIONS

Certifcations: CE



Effects

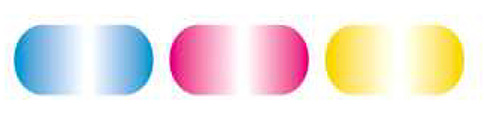

CMY

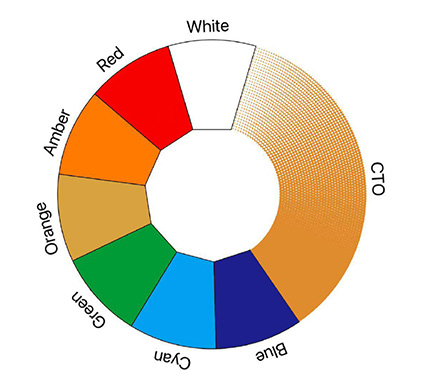

COLOR WHEEL

FIXED GOBO WHEEL

(Diameter 14MM,External diameter 17.9MM,Thickness 1.1MM

ROTATING GOBO WHEEL

(Diameter 14MM,External diameter 22.9MM,Thickness 1.1MM

FRAMING+ANIMATION+IRIS





ACCESSORY



True 1 power cord: 1pcs 1.5m                                                                                                                                                          IP DMX cable: 1pcs 1.5m
Safety cord: 1pcs
Clamps: 2pcs

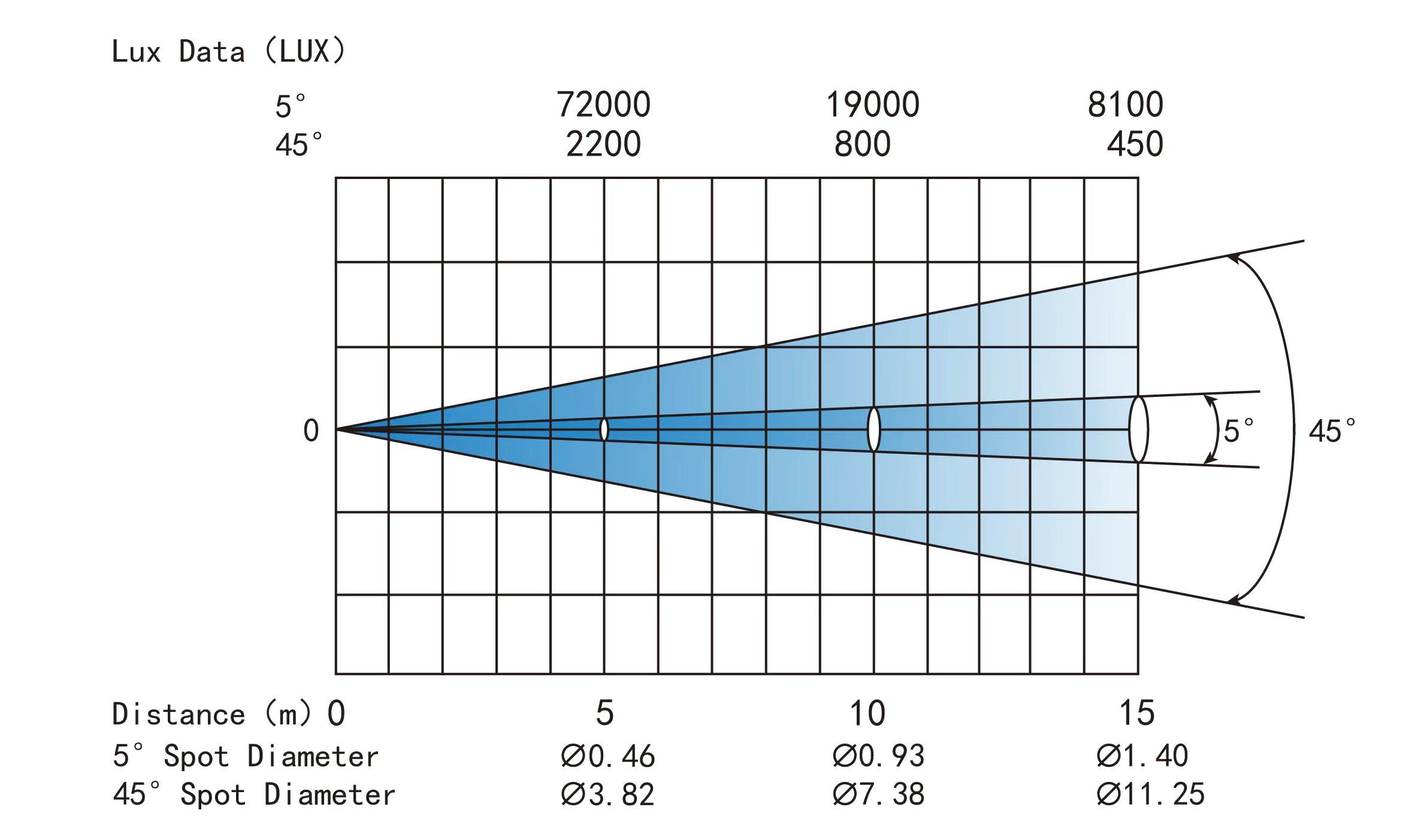

ILLUMINATION

Filename size Uploaded Downloading
SPECIFICATIONS
P10_datasheet.pdf 150k 2025-07-01
MANUALS
P10_manual.pdf 150k 2025-07-01
