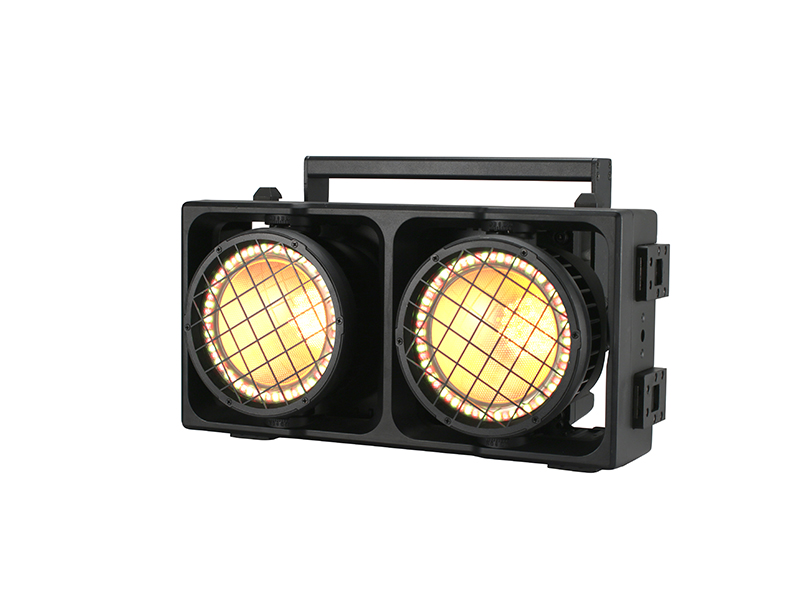

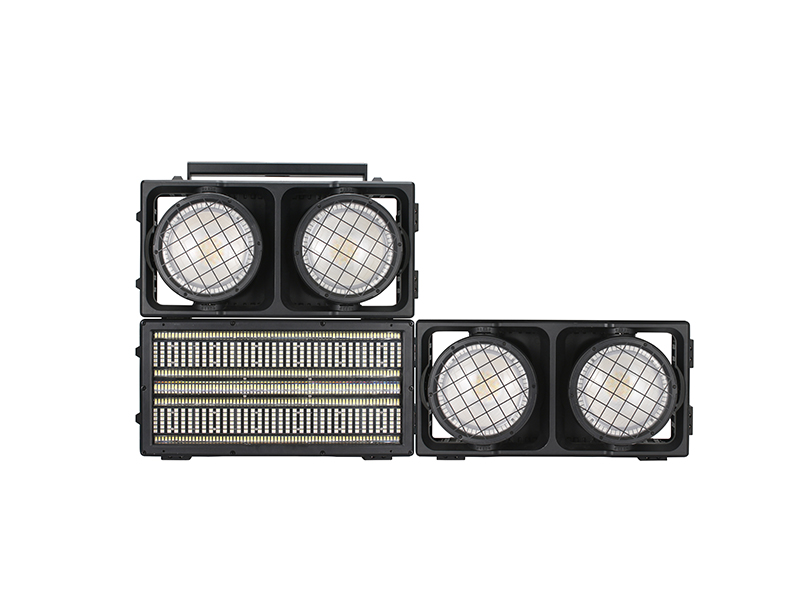

B2 Hex
IP65 RGBALC 2x475w blinder
B2 Hex is an exceptionally powerful IP65 bliner,highlumen delivery ouput and ready for all weathers.
● 2x475W RGBALC Leds, 120x0.2W RGB 3in1 led ring
● Traditional tungsten wire bubble effect
● 22,500lm
● IP65 Rating
| SPECIFICATIONS |
|
LIGHT SOURCE ● Light source: 2x475W RGBALC Leds, 120x0.2W RGB 3in1 led ring ● 22,500lm ● CRI: Ra≥90 ● CTO: 1800K-8500K ● Life expectancy: 50000hours OPTICS ● Beam angle: 50° ● Selectable PWM: 1kHz, 2kHz, 4kHz, 12kHz, 16kHz, 25kHz DYNAMIC EFFECTS ● Standalone Color Mixing: Yes ● Preset color card: 60 colors ● Dim Modes: 4 selectable dimming modes available ● Built-in Automated Programs: Yes CONTROL ● Protocols: DMX512, RDM, optional WDMX+CRMX(Timo FX RDM) ● Display: LCD ● Channels: 1/2/4/6/9/10/13/14/19/22/24/30/33/45 CHs |

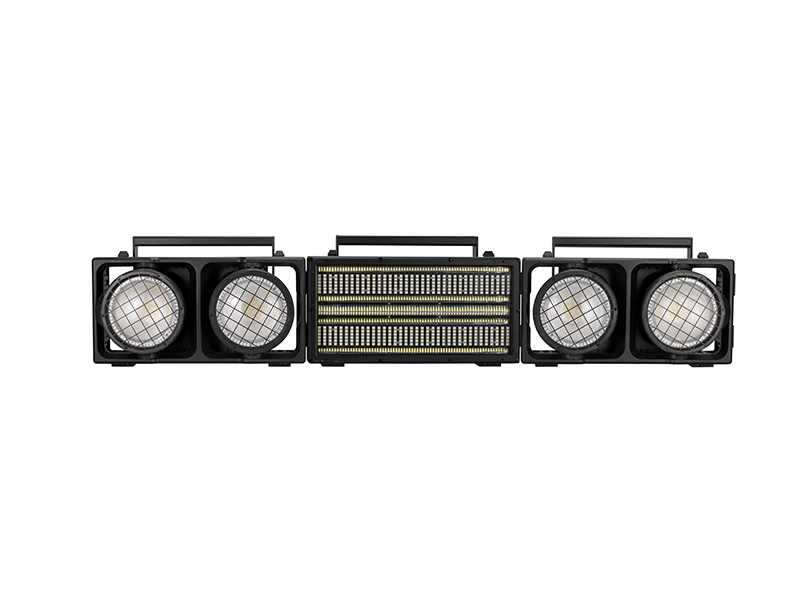

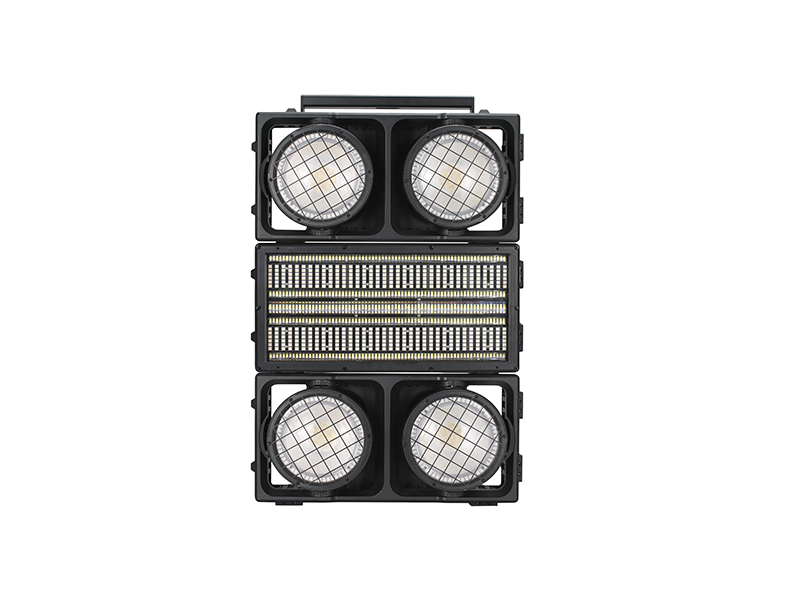

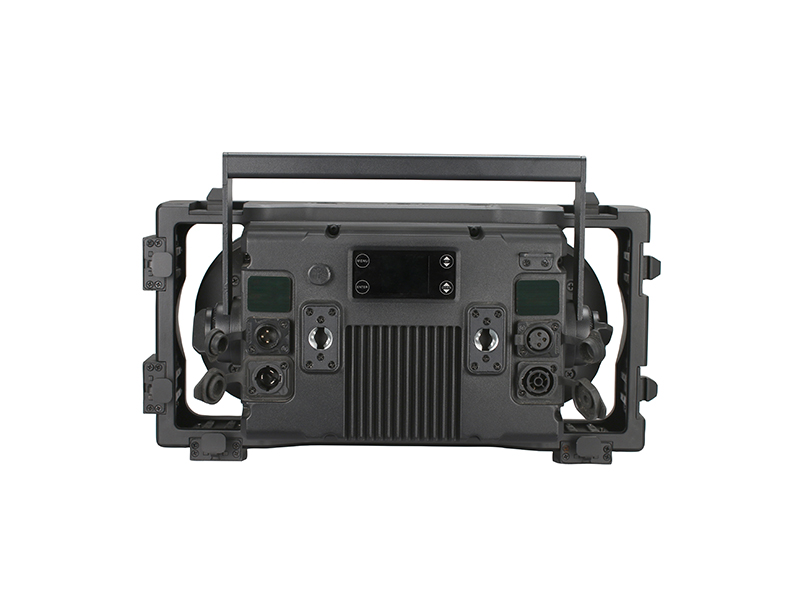

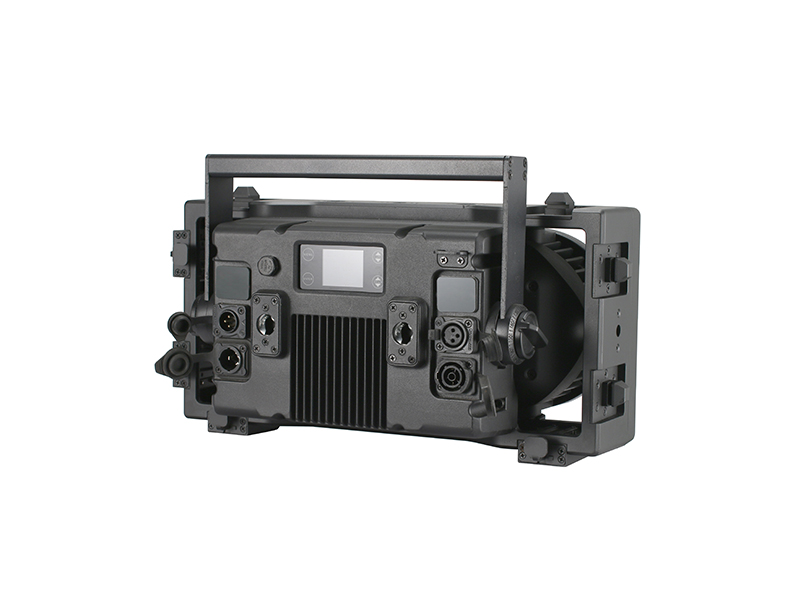

EL ECTRONICS ● Dimmer: linear 0 ~ 100% electronic 16bit dimmer ● Strobe Rate: 0 to 30Hz ● Operating temperature: -20° ~ +45° ELECTRICAL ● Mains power supply: 100-240VAC- 50/60Hz ● Max power consumption: 900W ● Constant power consumption: 450W @full on ● Max power consumption 200W@single color PHYSICAL ● Housing Material: Die-cast aluminum, black ● Cooling: Temp controlled, noiseless fan for forced air ● Signal connection: Seetronic XLR 3/5p IN/OUT connectors ● Power connection: Seetronic powerCON TRUE1 In/Out ● Dimensions (LxWxH): 399.18x200x240mm ● Weight: 10.3kgs ● IP rating: IP65 CERTIFICATIONS ● Certifcations: CE,RoHS Standard Included ● 1x B2 Hex ● 1x 1.5m Seetronic Powerkon IP65 power cord ● 2x Omega ● 1x Manual ● 1x Safety Cable Optional Accessories ● Flight case 4-in1 ● IP DMX Cable ● Splicing components ● U bracket ● Rigging bracket |

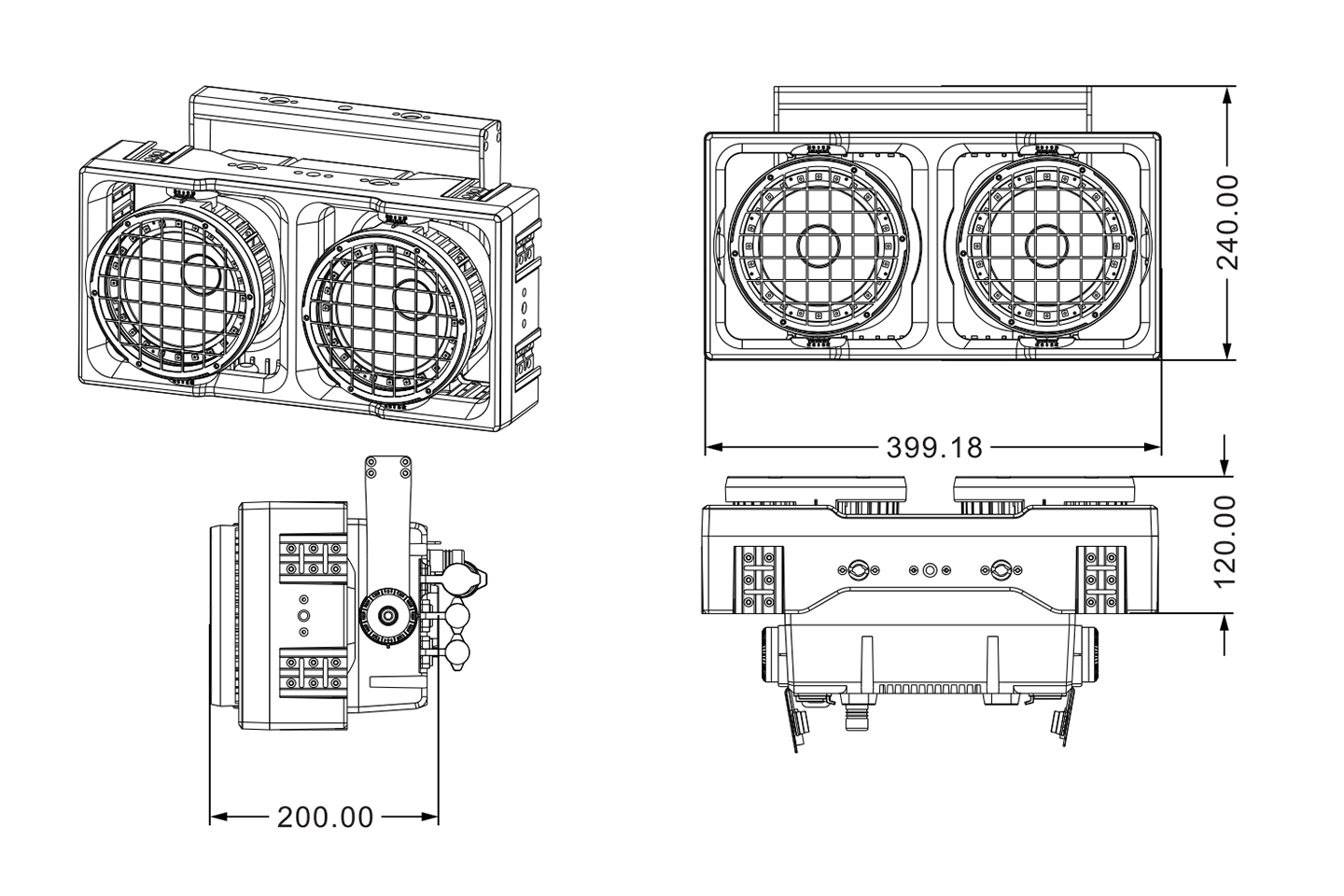

| DIMENSION |
| Filename | size | Uploaded | Download |
| Datesheet | |||
 B2 Hex_datasheet.pdf |
150k | 2025-07-01 |  |
