W2
IP65 color washer
W2 is an exceptionally powerful IP65 color washer,high lumen delivery ouput and ready for all weathers.
● 1100W
● Wash
● 16,200lux @5m
● IP65 Rating
| SPECIFICATIONS |
|
LIGHT SOURCE ● LEDs: 48x 20W LEDs RGBW/RGBALC, optioal RGBL ● LED Segments: 8(4x2) @RGBW/RGBL ● 16,200lux @5m(RGBW) ● CRI: Ra≥80 ● CTO: 2000K-8000K ● Life expectancy: 50000 hours OPTICS ● Beam Angle: 5°/10°/15°/25°/40°/60° ● Selectable PWM: 400Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 8kHz, 16kHz, 24kHz DYNAMIC EFFECTS ● Sophisticated colors mixed ● Coverage with pure mixing ● Preset Color Mixing: Yes ● Dim Modes: 4 selectable dimming modes available ● Built-in Automated Programs:Yes CONTROL ● Protocols: DMX512, RDM, optional WDMX+CRMX(Timo FX RDM) ● Display: LCD ● Channels(standard): 10/14/17/21/33/48 Chs |
ELECTRONICS ● Dimmer: linear 0 ~ 100% electronic 16bit dimmer ● Strobe Rate: 0 to 25Hz ● Operating temperature: -20° ~ +45° ELECTRICAL ● Mains power supply: 100-240VAC, 50/60Hz ● Max power consumption: 1100W PHYSICAL ● Housing Material: Magnesium alloy, black ● Cooling: Temp controlled, noiseless fan for forced air ● Signal connection: Seetronic XLR 3/5p IN/OUT ● Power connection: Seetronic powerCON TRUE1 In/Out ● Dimensions : 570x150x320mm ● Weight: 10.6kgs ● IP rating: IP65 CERTIFICATIONS ● Certifcations: CE,RoHS STANDARD INCLUDED ● 1x W2 ● 1x 1.5m Seetronic Powerkon IP65 power cord ● 2x Omega clamps ● 1x Manual ● 1x Safety Cable OPTIONAL ACCESSORIES ● Flight case 1-in-1 ● IP DMX Cable ● Magnetic 8 way barndoors ● Magnetic diffuser |

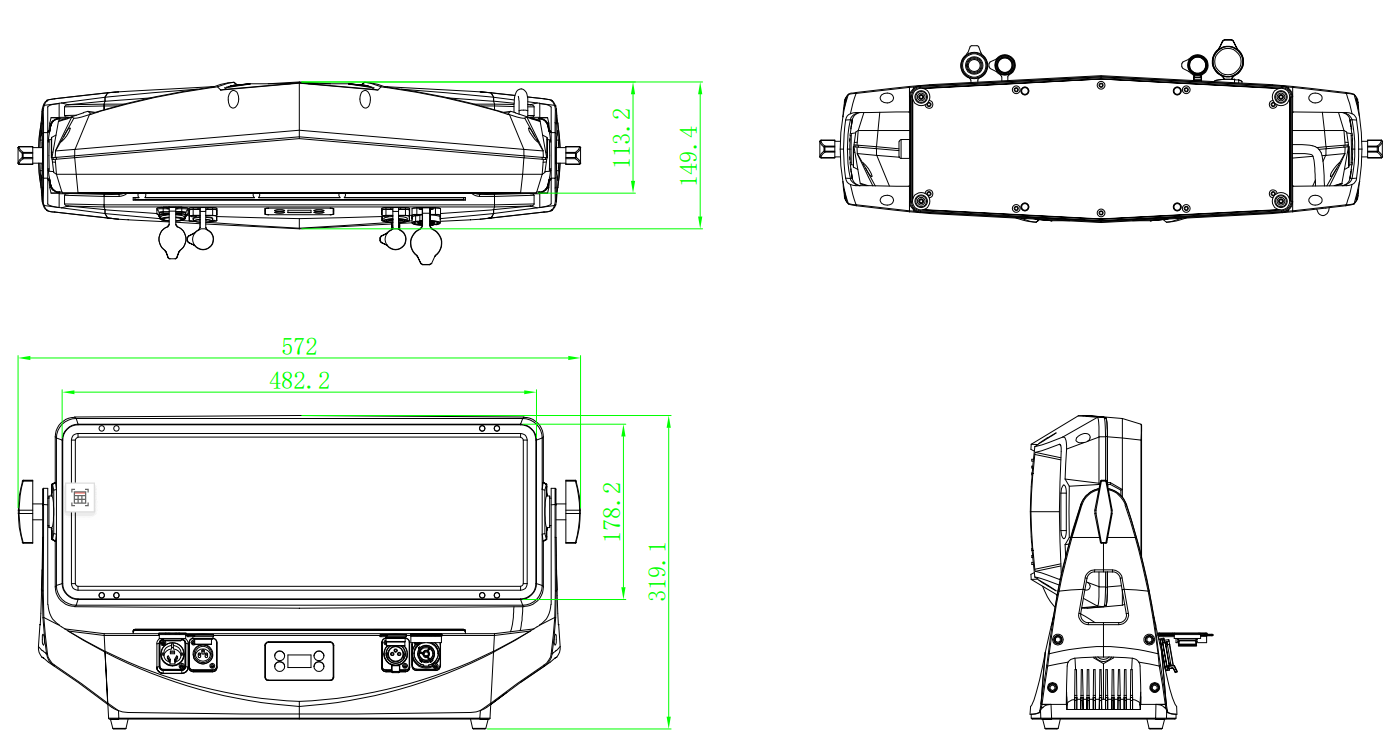

| DIMENSION |
| Filesname | Size | Uploaded | Download |
| Datasheet | |||
 W2_datasheet.pdf |
800k | 2025-07-01 |  |
