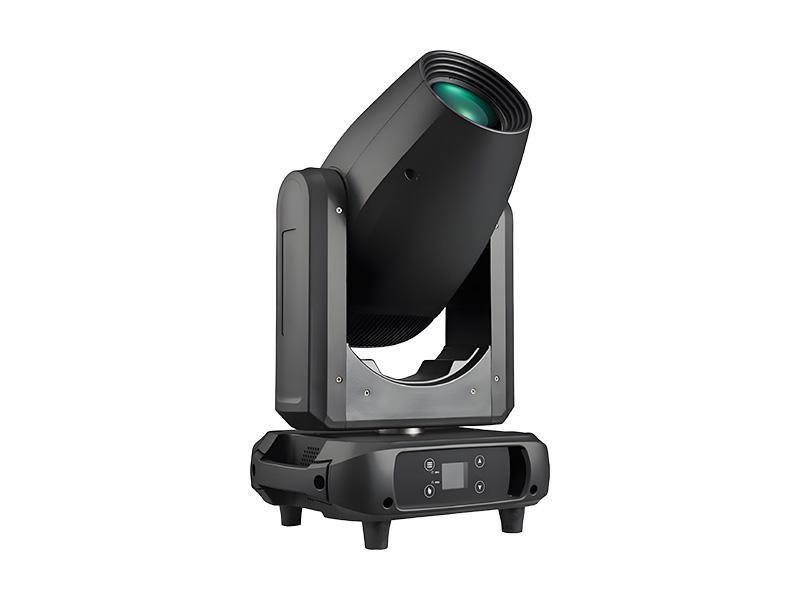

AROLLA 350 BSW
IP20 moving BSW
AROLLA 300 BSW is an exceptionally powerful IP20 moving BSW, highlumen delivery ouput, compact housing and lightweight.
● 350W LED engine module

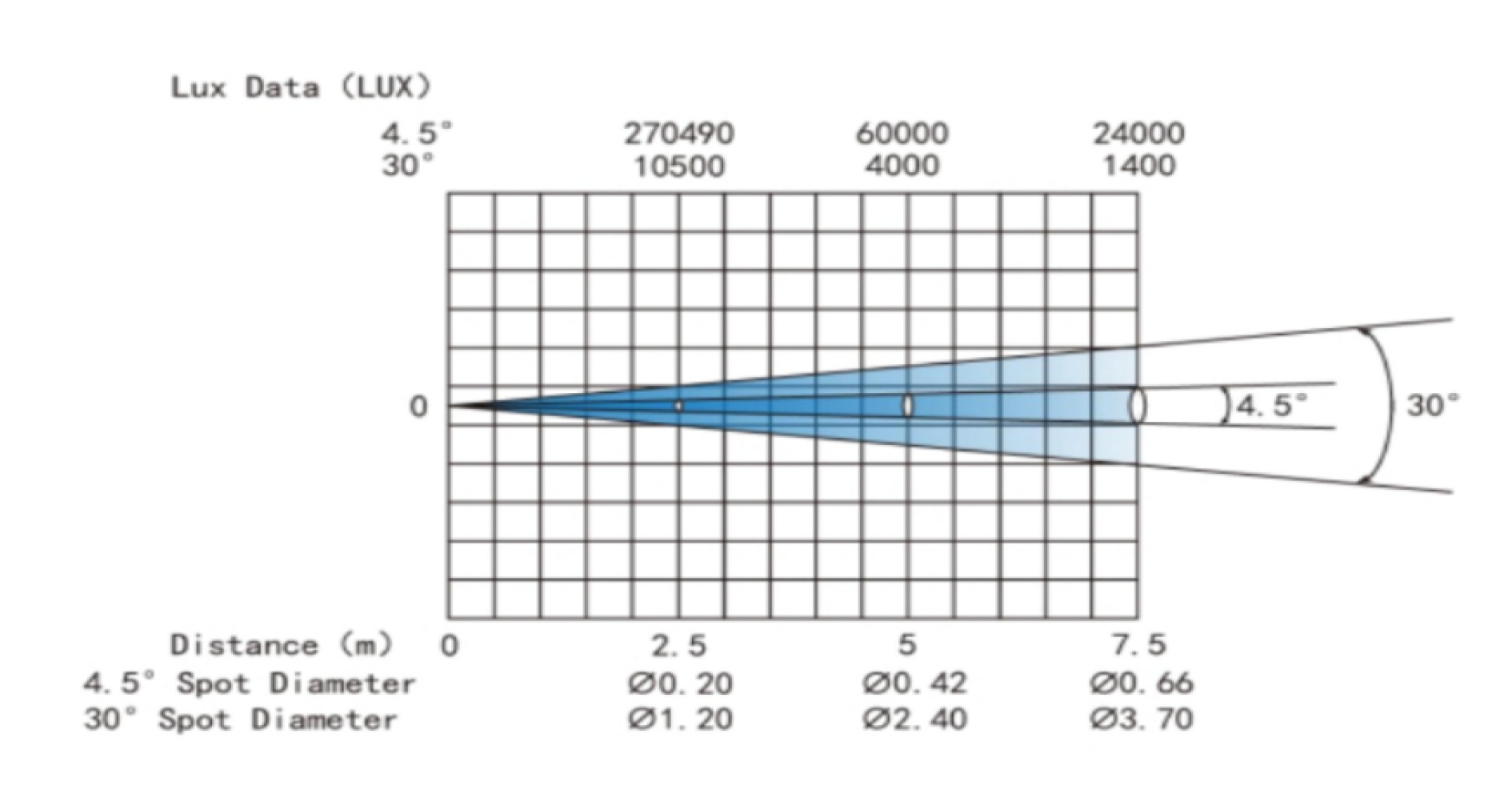

● 60,000 Lux @5meter
● 13.7kgs
● IP20 Rating
| SPECIFICATIONS |
|
LIGHT SOURCE ● Light source: 350W LED engine module ● Life expectancy: 20000 hours OPTICS ● Beam angle: 4.5°~30° DYNAMIC EFFECTS ● Color: 6 colors + CMY Color system, halfcolor and rainbow effect ● Independent CMY ● Rotating gobos:7 rotating glass gobos ● Fixed gobos: 9 gobos + open ● Prism system: 8 facet prism CONTROL ● Protocols: DMX512, RDM, (optional Art-Net, sACN) ● Channels: 22 Chs ● Display: LCD touch display ● Movement: PAN 540°, TILT 270° |
ELECTRONICS ● Dimmer: linear 0 ~ 100% electronic 16 bit dimmer ● Strobe: 0-22Hz ● Operating temperature: -20° ~ +45° ELECTRICAL ● Mains power supply: 100-240V - 50/60Hz ● Max power consumption : 400 W PHYSICAL ● IP rating: IP20 ● Body: Flame-retardant plastic(V0), black ● Cooling: Temp controlled, overheating protection ● Signal connection: Seetronic XLR 3/5p IN/OUT ● Optional:RJ45 Ethernet In/Out(Art-Net, sACN) ● Power connection: Seetronic powerCON IN/OUT ● Dimensions (LxWxH):356x280x676 mm ● Weight:13.7 kgs CERTIFICATIONS ● Certifcations: CE |
| Effects |
CMY
COLOR WHEEL
FIXED GOBO WHEEL
(Diameter 14MM,External diameter 17.9MM,Thickness 1.1MM
ROTATING GOBO WHEEL
(Diameter 14MM,External diameter 22.9MM,Thickness 1.1MM
FRAMING+ANIMATION+IRIS

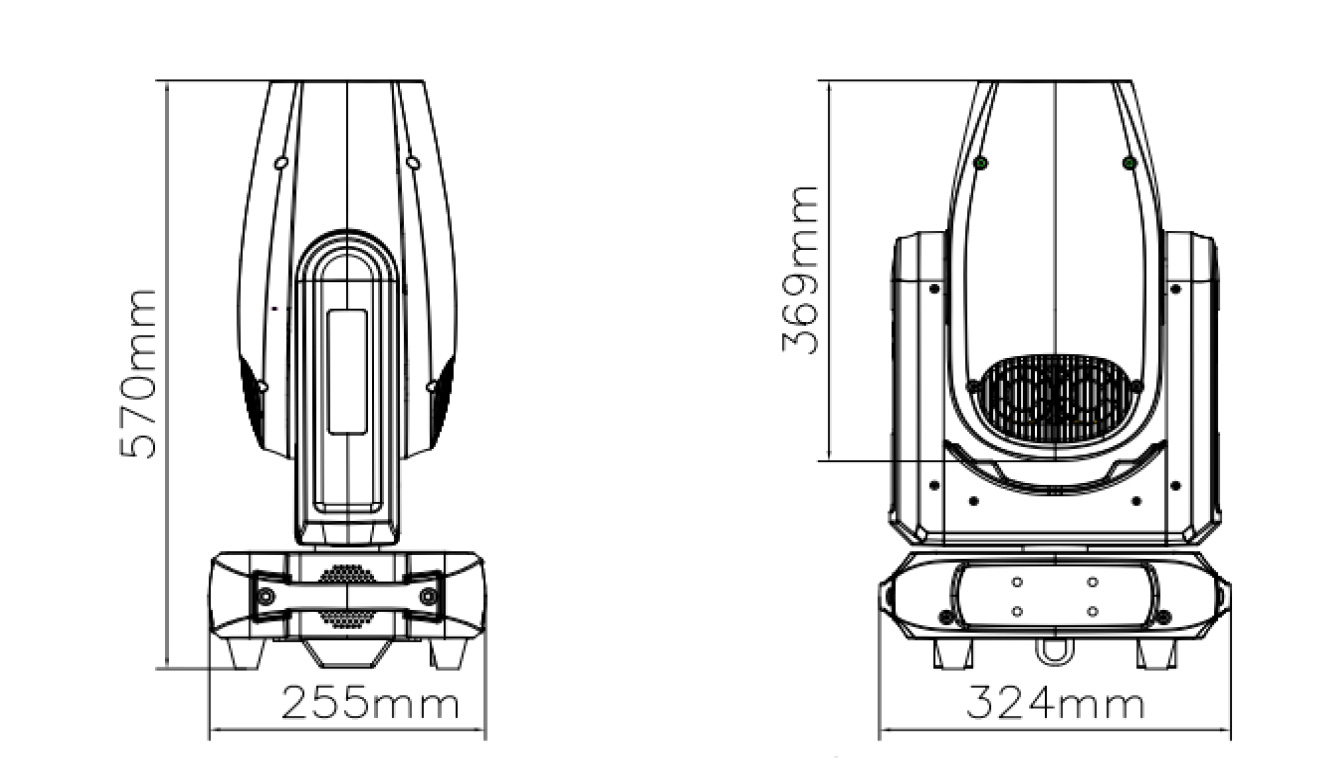

| DIMENSION |
| EFFECT |
| Filename | size | Uploaded | Downloading |
| SPECIFICATIONS | |||
 AROLLA 350 BSW.pdf |
150k | 2025-07-01 |  |
| DMX chart & personalities | |||
 AROLLA 350 BSW.dwg |
150k | 2025-07-01 |  |
