CALIBUR 300 BEAM IP

300W IP66 MOVING LASER BEAM

CALIBUR 300 BEAM IP is an exceptionally powerful IP66 moving laser beam, infinite pan movement, and ready for all weathers.

● 300W Laser source 7000K white
● 430,000lux @ 20meter
● IP66 Rating

SPECIFICATIONS

LIGHT SOURCE

● Laser: 300W 7000K WHITE
● Life expectancy: 20000 hours

OPTICS

● Beam angle: 0.72°
● Lens diameter: Φ168mm

DYNAMIC EFFECTS

● Color: 1 color wheel, 14 colors + white
● Gobo: 1 static gobo wheel, 19+1 gobos
● Prism: 8+ 16prism
● Soft light effect: adjustable indepedent soft light effect
● Movement: Pan infinite, Titl 270°
● Focus: motorized focus

CONTROL

● Protocols: DMX512, RDM
● Channels: 14Chs,16 Chs
● RDM: RDM for remote monitoring and settings
● Display: LCD touch display

ELECTRONICS

● Dimmer: linear 0 ~ 100% electronic dimmer
● Strobe: 1-25 times/second adjustable pulse flicker and random flicker
● Operating temperature: -20° ~ +45°

ELECTRICAL

● Mains power supply: 100-240V - 50/60Hz
● Max power consumption: 400 W

PHYSICAL

● IP rating: IP66
● Body: carbon fiber, aeronautical materials, black
● Cooling: Temp controlled, overheating protection
● Signal connection: IP Seetronic XLR 3/5p IN/OUT
● Power connection: IP Seetronic powerCON IN/OUT
● Dimensions: 418x430x618 mm
● Weight:20.0 kgs

CERTIFICATIONS

● Certifcations: CE, RoHS

STANDARD INCLUDED

● 1x CALIBUR 300 BEAM IP

● 1x 1.5m Seetronic Powerkon IP65 power cord

● 2x Fold clamps

● 1x Manual

● 1x Safety Cable

OPTIONAL ACCESSORIES

● Flight case

● 1.5m IP DMX Cable

Effects

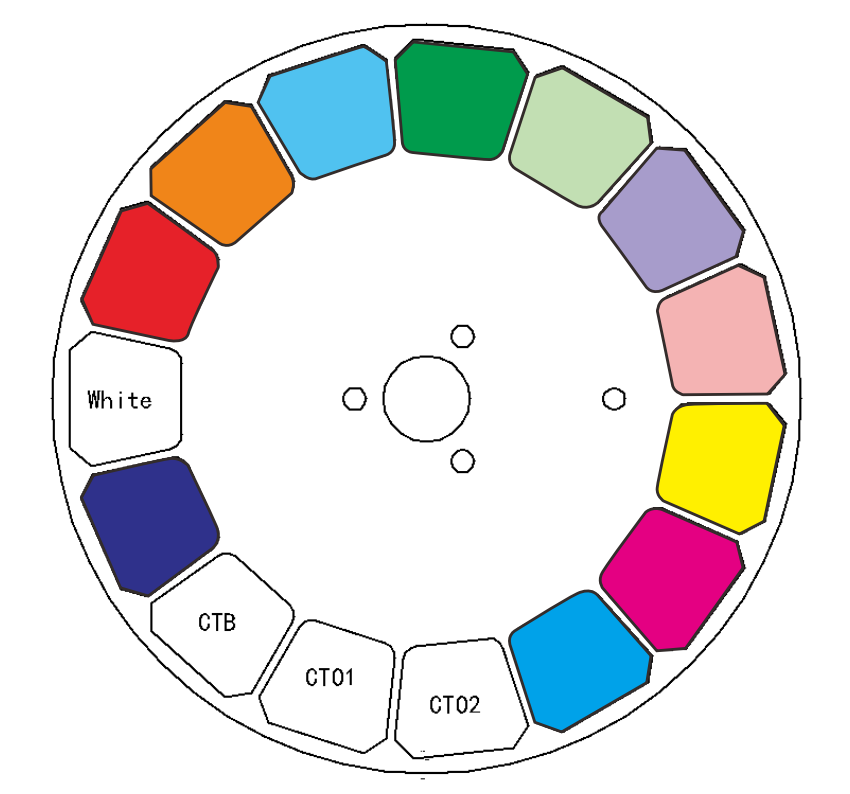

COLOR WHEEL

FIXED GOBO WHEEL

EFFECTS

DIMENSION

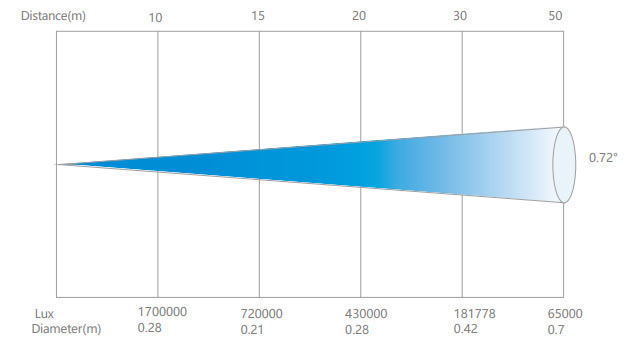

ILLUMINATION

Filename	Size	Uploaded	Download
SPECIFICATIONS
CALIBUR 300 BEAM IP_datasheet.pdf	150k	2025-07-01
MANUALS
CALIBUR 300 BEAM IP -manual.pdf	150k	2025-07-01
CALIBUR 300 BEAM IP_dimension.pdf	150k	2025-07-01
CALIBUR 300 BEAM IP_tender.pdf	150k	2025-07-01
