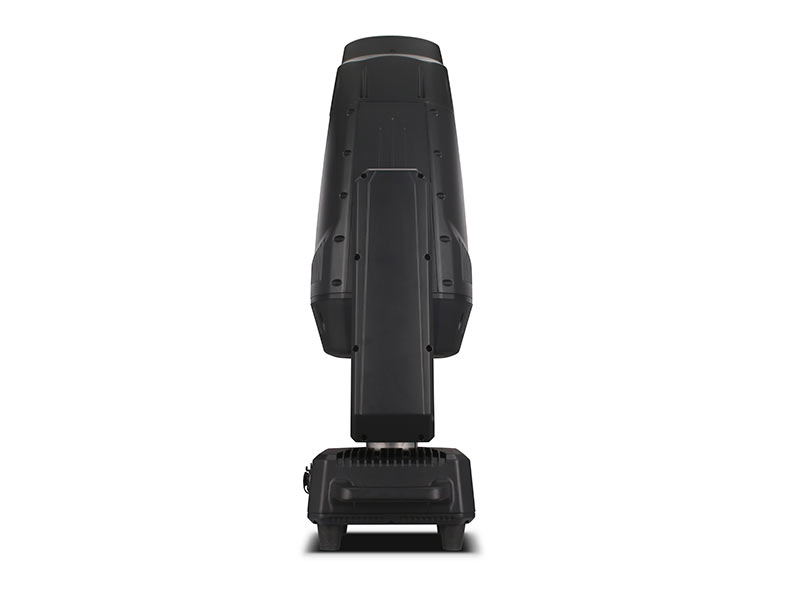

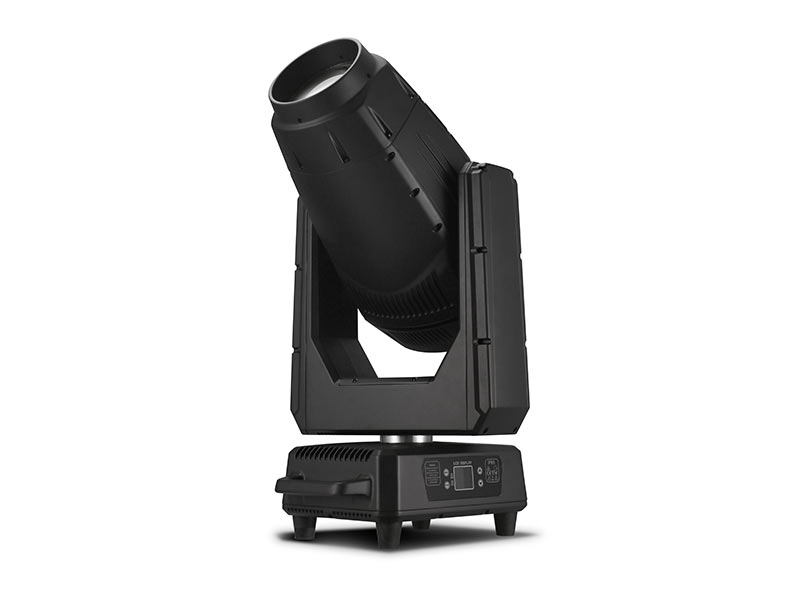

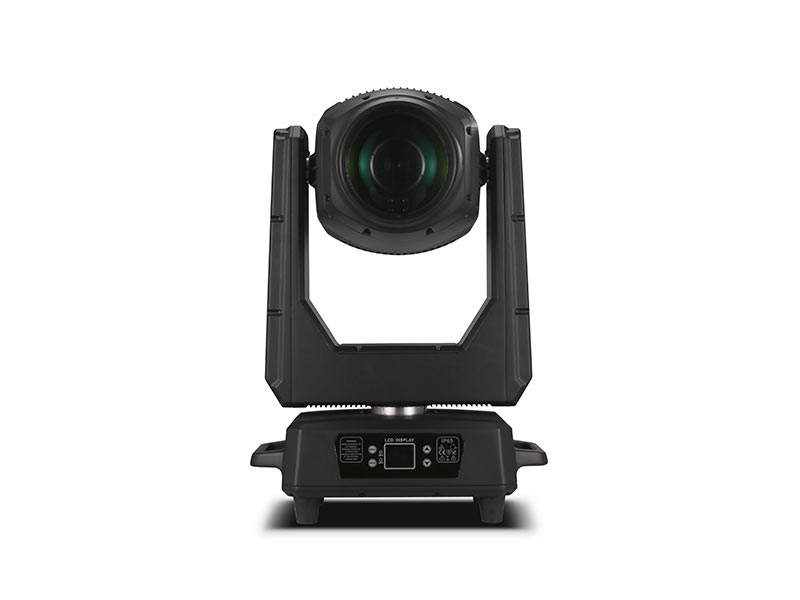

AROLLA 800 BSWF IP

800 BSWF IP

AROLLA 800 BSWF IP is an exceptionally powerful IP66 moving BSWF, high lumen delivery output, and ready for all weather.

● 700W LED source 8000K white
● 1154651ux @5meter
● IP66 Rating

SPECIFICATIONS

LIGHT SOURCE

● LED: 700W 8000K WHITE
● Life expectancy: > 20000 hours
● CRI: Raz 75 (optional Raz90)
● CTO: 3200K~ 8000K

OPTICS

● Beam angle: 4°~36°

DYNAMIC EFFECTS

● Color: 1 color wheel, 7 colors + white
● 1x CMY wheel
● 1x Stastic gobo and 1x rotating gobo
● Prism: 3-prism
● Movement: Pan 540°, Titl 270°
● Focus: motorized focus
● Framing system: electronic, 4 shutter blades

CONTROL

● Protocols: USITT DMX512, RDM
● Channels:38/41 Chs
● Display: TFT touch display

ELECTRONICS

● Dimmer: linear 0 ~ 100% electronic dimmer, 16 bit
● Strobe: 0-20 Hz
● Operating temperature: -20° ~ +45°

ELECTRICAL

● Mains power supply: 100-240V - 50/60Hz
● Max power consumption : 850 W

PHYSICAL

● IP rating: IP66
● Body: Magnesium aluminum, black
● Cooling: Temp controlled, overheating protection
● Signal connection: Seetronic XLR 3/5p IN/OUT connectors
● Power connection: Seetronic powerCON waterproof IN/OUT connectors
● Dimensions (LxWxH):415x240x766 mm
● Weight:28.0 kgs

CERTIFICATIONS

● Certifcations: CE

Effects

CMY

COLOR WHEEL

FIXED GOBO WHEEL

(Diameter 14MM,External diameter 17.9MM,Thickness 1.1MM

ROTATING GOBO WHEEL

(Diameter 14MM,External diameter 22.9MM,Thickness 1.1MM

FRAMING+ANIMATION+IRIS

ACCESSORY

● True 1 power cord: 1pcs
1.5m" IP DMX cable: 1pcs 1.5m
● Safety cord: 1pcs
● Clamps: 2pcs

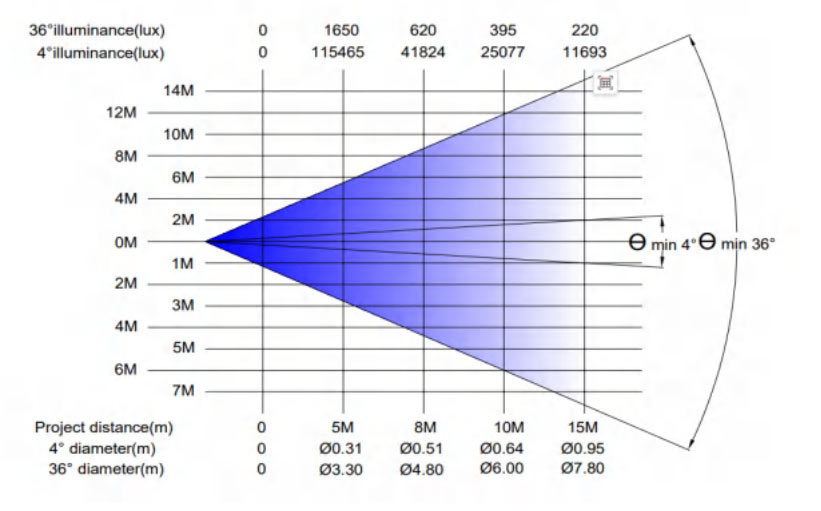

ILLUMINATION
