AROLLA 800 BSWF

800 BSWF

AROLLA 800 BSWF is an exceptionally powerful IP20 LED moving BSWF,accuracy framing system and high delivery output.

700W LED white
4 blade shutters
● 1 animation wheel
Linear CTO 2500K-6500K
High CRI>90
108000lux @5m @4°

SPECIFICATIONS



LIGHT SOURCE

LEDs: 700W white LED engine, CRI>90
Life expectancy: 20,000 hours

OPTICS

Beam angle: 4°~50°
Lens diameter: 中138mm
Linear CTO: 2500k~6500K

DYNAMIC EFFECTS

1x CMY wheel
1x color wheel: 6+ white colors, rainbow effect
1x rotating glass gobo wheel: 7 gobos
1x static metal gobo wheel: 6+1 gobos
1x animation wheel
4-F prism
6%- 100% iris system

CONTROL

Protocols: USITT DMX512, RDM
Channels: 38 /41 Chs
Display: LCD touch display

ELECTRONICS

Movement: Pan/Tilt 540°/2709, 16 bit solution
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1~20 Hz
Focus: linear motorized, frost: 1x frost filter
Framing: motorized, 4x blades shutters
Operating temperature: -20° ~ +45°

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption : 950 W

PHYSICAL

IP rating: IP20
Body: Flame-retardant plastic, black
Cooling: Temp controlled, overheating protection
Signal connection: Seetronic XLR 3+ 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (LxWxH):400x285x693 mm
Weight:28.0 kgs

CERTIFICATIONS

Certifcations: CE



Effects



CMY

COLOR WHEEL

FIXED GOBO WHEEL

(Diameter 14MM,External diameter 17.9MM,Thickness 1.1MM

ROTATING GOBO WHEEL

(Diameter 14MM,External diameter 22.9MM,Thickness 1.1MM

FRAMING+ANIMATION+IRIS



ACCESSORIES



True 1 power cord : 1 pcs 1.5m
IP DMX cable: 1pcs 1.5m
Folding clamp: 2pcs
Safety cord: 1 pcs

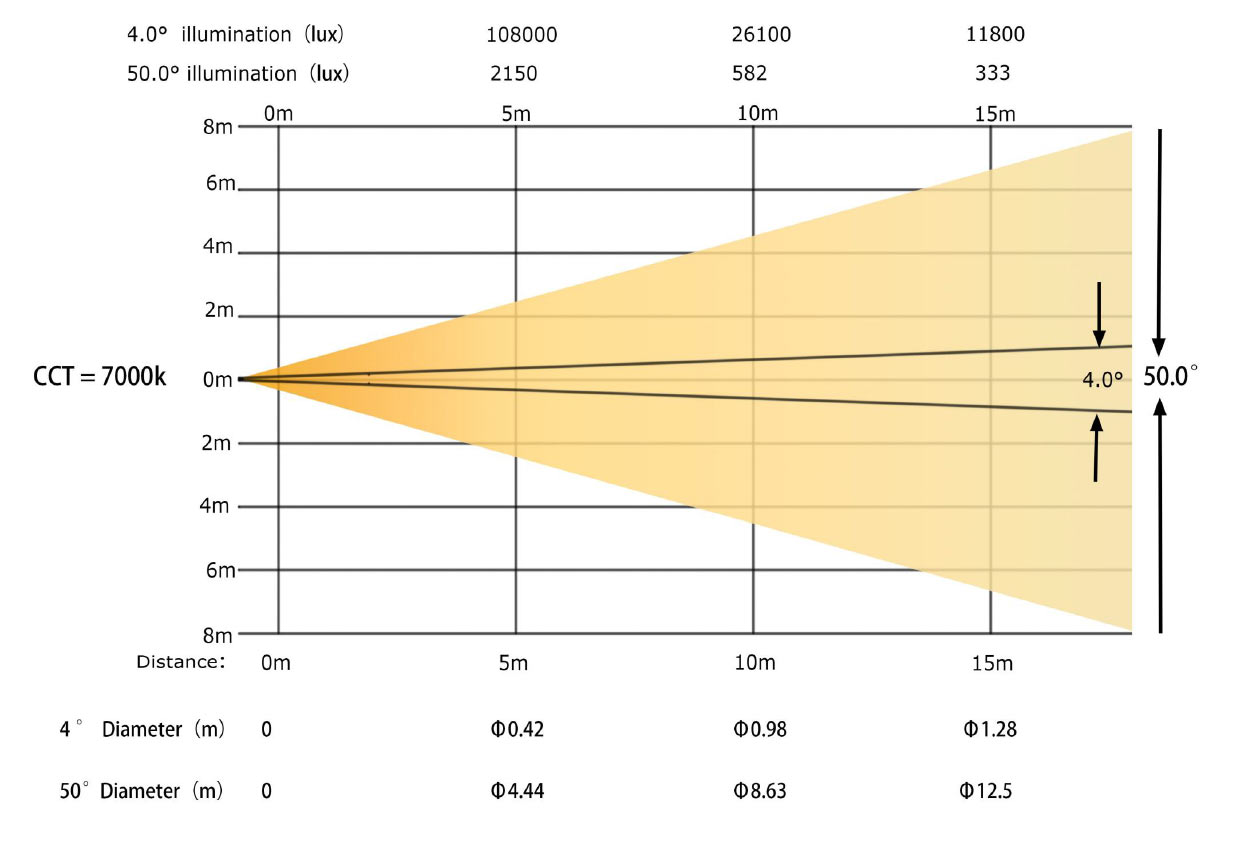

ILLUMINATION

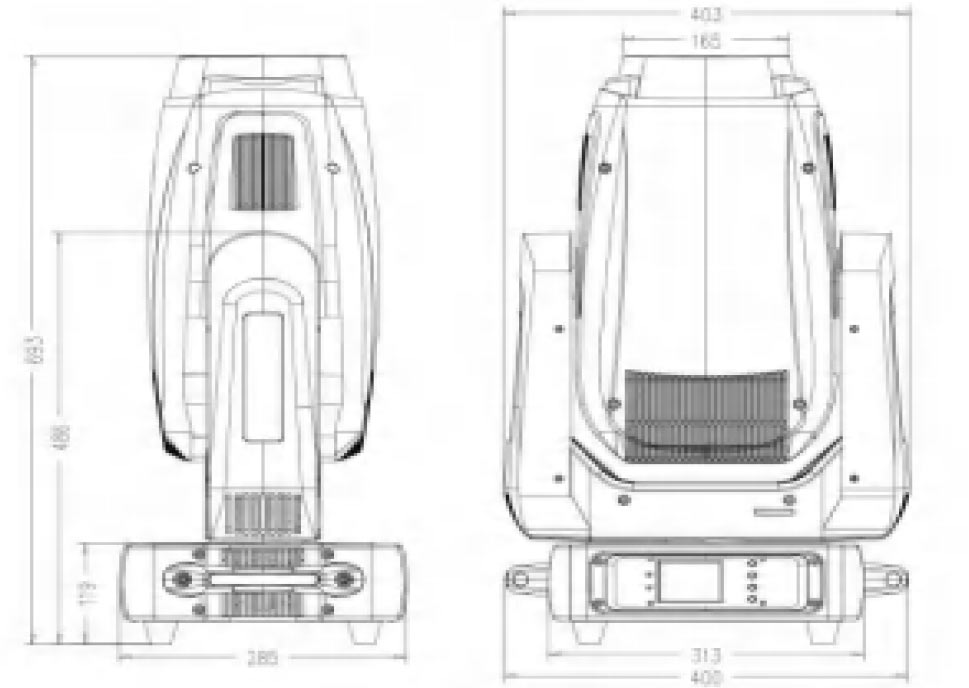

DIMENSION
