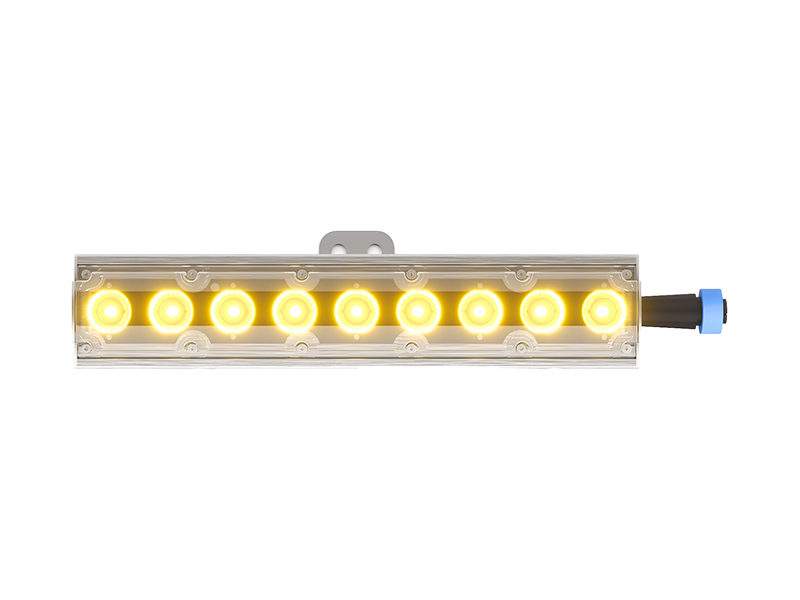

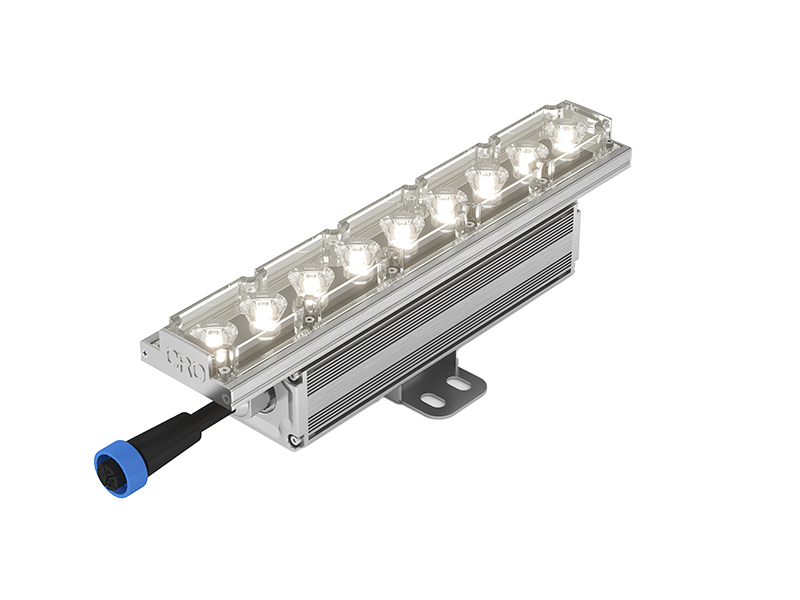

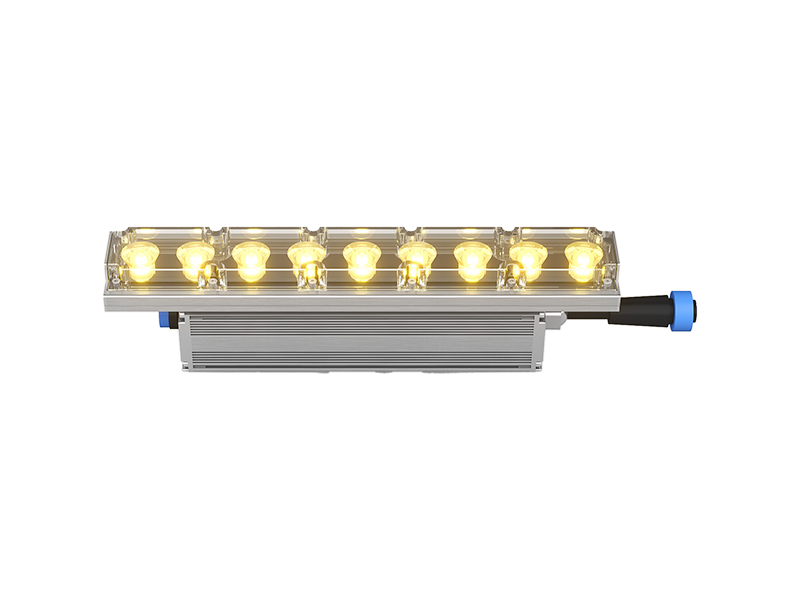

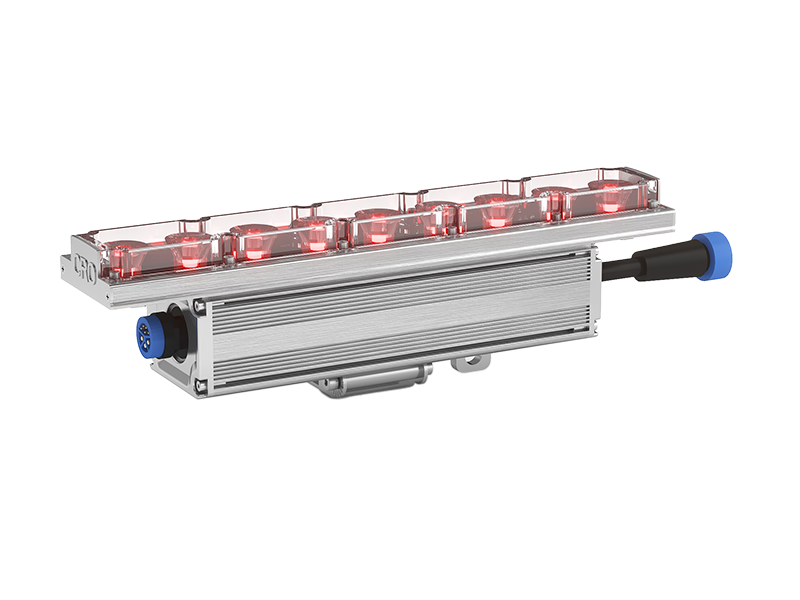

GrazeONE S

IP67 LED linear graze washer

GrazeONE S is an exceptionally powerful IP67 LED linear wall light,highlumen delivery ouput,and ready for all weathers. With Flux Boosting technology, any single color or mixed color can be constant as the power consumption and more 2-3 times output than tradional products in the market.

● 30W, optional（5W/15W）

● 52lm/w

● RGBL/RGBW

● Flux boosting technology

● IP67

SPECIFICATIONS

LIGHT SOURCE

● LEDs: 9x high premium LEDs RGBL/RGBW(quad-colors)

● Total output: 52lm/w

● CRI: Ra>80

● Lumen maintance: L90B10 >90.000 hrs, Ta = 25°C / 77°F

OPTICS

● Beam angle: 15°/30°/45°/60°/15°x60°/15°x30°/30°x60°

● CCT: 1800k~10000K

DYNAMIC EFFECTS

● 24 preset LEE colors

● Dim Modes: 4 selectable dimming modes available

CONTROL

● Power Supply: Integrated

● Protocols: DMX512, RDM, ON/OFF

● Channels: 1chs/4chs/8chs/11chs

● Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz

ELECTRONICS

● Dimmer: linear 0 ~ 100% 24 bit electronic dimmer

● Storage Temperature: -40 °C to 85 °C (device must reach start-up temperature
value before operating)

● Start-up Temperature: -25 °C to 50 °C

● Operating temperature: -40 °C ~ +50 °C

ELECTRICAL

● Mains power supply: 90-277VAC, 50/60Hz((optional, 24VDC)

● Max power consumption : 30W, optional（5W/15W）

PHYSICAL

● Material: extruded aluminum + PMMA top lens

● Finish: Finished aluminum, gray(RAL 9006), black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)

● Cooling: convection, overheating protection

● Connection: 8-pin integrated DMX & POWER in&out with IP connectors

● Dimensions: 305x62x97 mm(including bracket)

● Weight: 1.0kgs

● IP rating: IP67

CERTIFICATIONS

● Certifcations: CE, RoHS, 3G

Standard Included

● 1x GrazeONE S

● 1x Manual

● 1x Safety Cable

Optional Accessories

● End Terminal Cap

● IP 8-Pin Extension Cable

● Power+Data Box

● Glare Shield

● Louver

● Wall-mounted sets

● Hanging sets

EFFECTS

Fluxcolor boost technology

Fluxcolor boosting technology is a sophisticated software algorithm integrated into CRO multi-channel light ﬁttings. It optimizes the use of the luminaire's available power to deliver peak brightness for individual colors (R, G, B) as well as their combinations, all within the luminaire's total maximum power limit. Since the luminaires maximum power remains constant, there is no requirement for extra cables or power supplies in the project design.

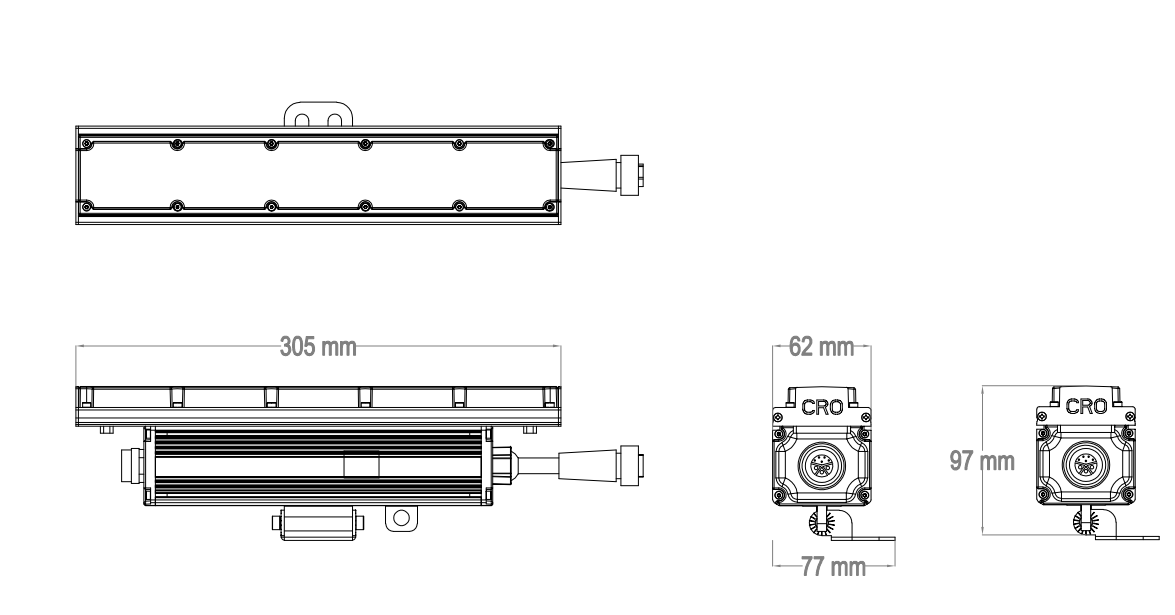

DIMENSION

Filename	Size	Uploaded	Download
MANUALS
GrazeONE S_manual.pdf	150k	2025-11-01
DMX chart & personalities
GrazeONE S.xml	150k	2025-11-18
GrazeONE S.dwg	150k	2025-11-18
