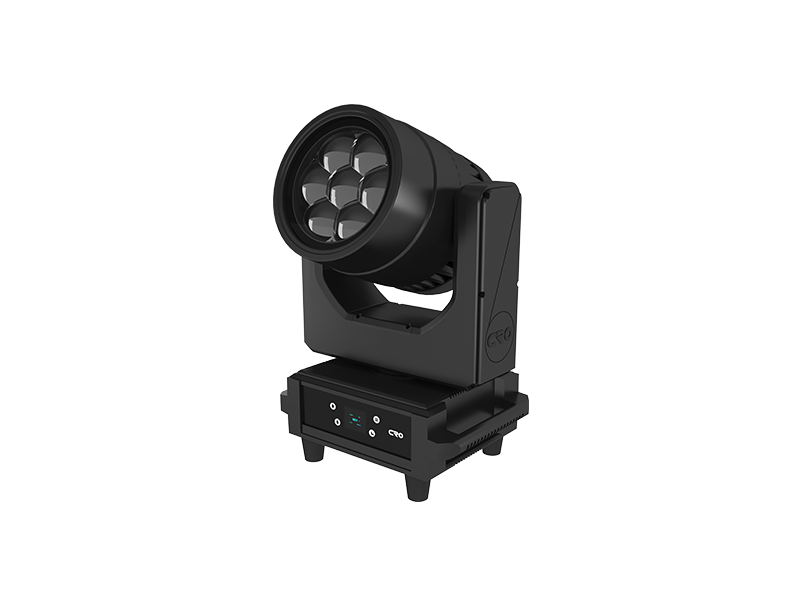

Zonda 7 wash

IP66 moving wash

Zonda 7 wash is a compact full-color-spectrum LED moving wash, delivering up to 38,693Lux@5m, equipped with 3.5°-45° motorized zoom and extremely 24-bit smooth dimming technology, durable construction and elegant design for all weathers, tailored for large indoor or outdoor applications.

● 7x50W RGBL

● 3.5°-45°

● 38,693Lux @ 5meter

● IP66 Rating

SPECIFICATIONS

LIGHT SOURCE

● Light Source: 7x 50W RGBL

● CRI: Ra≥83 @3200K

● Lux: 38,693 Lux@5meter

● Color Temperature (range): 1800K-10000K

● Life Expectancy: 50,000hours

OPTICS

● Beam Angle: 3.5°-45°

● Field Angle: 7.5°-56°

DYNAMIC EFFECTS

● Pan and Tilt: 540°/247°

● Pan and Tilt Ranges: 540°,360°,180°pan/247°,180°,90° tilt

● Dimming: 24-bit, extremely smooth electronic dimming

● Dimmer Modes: 4 selectable dimming modes available

● Dimmer Curves: 4 selectable dimming curves available

● Strobe/Shutter: Electronic

● Strobe Rate: 0 - 30 Hz

● Color Temperature Presets: Yes

● Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz

CONTROL

● Protocols: DMX512, RDM, optional(Art-Net, sACN)

● DMX Channels: 16/31/34/40/62ch

● Firmware Upgrade: Built-in program copying function, DMX, USB-C

CONNECTIONS

● Power Connection: seetronic powerCON TRUE In/Out IP65

● Signal Connection: seetronic 3/5-pin XLR In/Out IP65

● Data Connection: IP65 RJ45 Ethernet In/Out(optional)

● Firmware Connection: USB-C

ELECTRICAL

● Input Voltage: 90-240VAC 50/60Hz

● Max power consumption: 410W

● Power and Current: 407 W, 3.70 A @ 110 V, 60 Hz

● Power and Current: 403 W, 3.67 A @ 110 V, 50 Hz

● Power and Current: 405 W, 1.76 A @ 230 V, 60 Hz

● Power and Current: 400 W, 1.73 A @ 230 V, 50 Hz

● Power Linking: 3 units @ 110 V; 6 units @ 230 V

PHYSICAL

● Housing Material: Die-cast magnesium aluminum, black

● Cooling: Temp controlled, noiseless fan for forced air

● Temperature (Ambient): 4 °F to 113 °F (-20 °C to +45 °C)

● Dimensions: 320 x 226 x 462mm

● Weight: 12.0kgs

● IP rating: IP66

CERTIFICATIONS

● Certifcations: CE, RoHS

Standard Included

● 1x Zonda 7 wash

● 1x Seetronic PowerCon IP65 power cord

● 1x Manual

● 1x Safety Cable

Optional Accessories

● DMX Cable IP

● IP Rated EtherCon Cable

● OMEGA

● Clamp

● Flight case

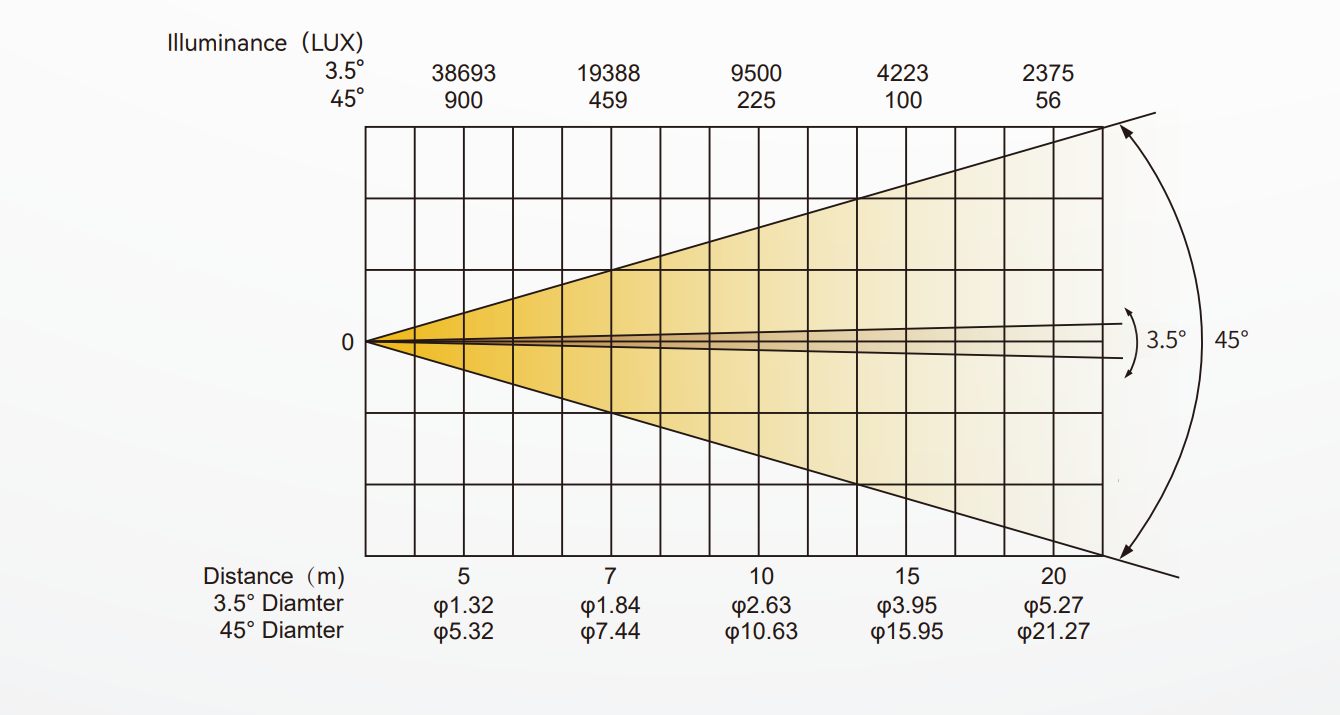

PHOTOMETRICS

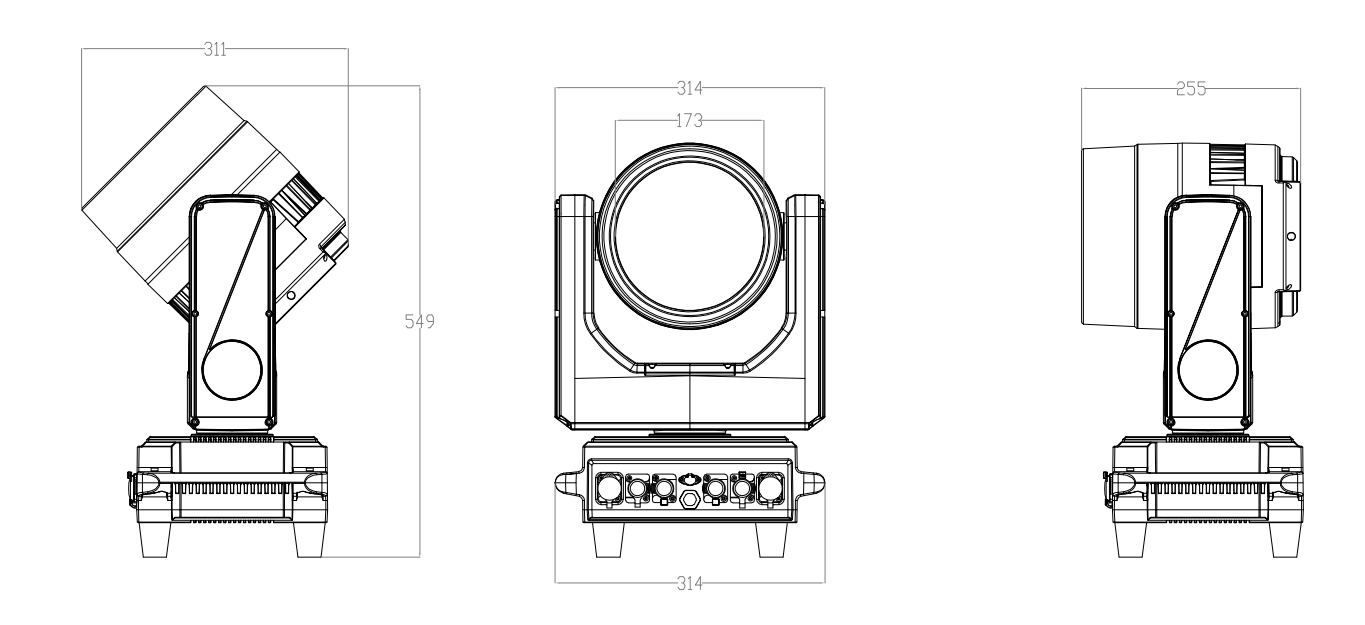

DIMENSION

Filename	size	Uploaded	Download
Datasheet
Zonda 7 wash datasheet.pdf	966kb	2026-04-13
