ColorPanel L Q
IP66 premium LED flood light
ColorPanel L Q is an exceptionally powerful IP66 LED flood light,highlumen delivery ouput,an d ready for all weathers.
● Max.300W RGBW/RGBL
● 12,900lm
● IP66
| SPECIFICATIONS |
|
LIGHT SOURCE ● LEDs: Quad RGBW/RGBL ● Total output: 12,900 lm ● Life expectancy: 50,000 hours OPTICS ● Beam angle: 10°/15°/30°/45°/60°/10°x60°/30°x60° ● CCT: 1800k~8000K DYNAMIC EFFECTS ● Preset macro colors CONTROL ● Protocols: DMX512, RDM, ON/OFF ● Channels: 1/4/5/7/8 Chs |
ELECTRONICS ● Dimmer: linear 0 ~ 100% electronic dimmer ● Operating temperature: -20° ~ +50° ELECTRICAL ● Mains power supply: 100-277V - 50/60Hz ● Max power consumption : 300 W PHYSICAL ● Body: die-cast aluminum, grey/black ● Cooling: convection, overheating protection ● Signal connection: 3-pin signal cable in&out, 3m, open ends ● Power connection: 3-pin power cable, 3m, open ends ● Dimensions: 645x140x355 mm ● Weight: 13.0 kgs ● IP rating: IP66 CERTIFICATIONS ● Certifcations: CE, RoHS |
| Effects |
Color Temperature :
|
INSTALLATION METHOD |

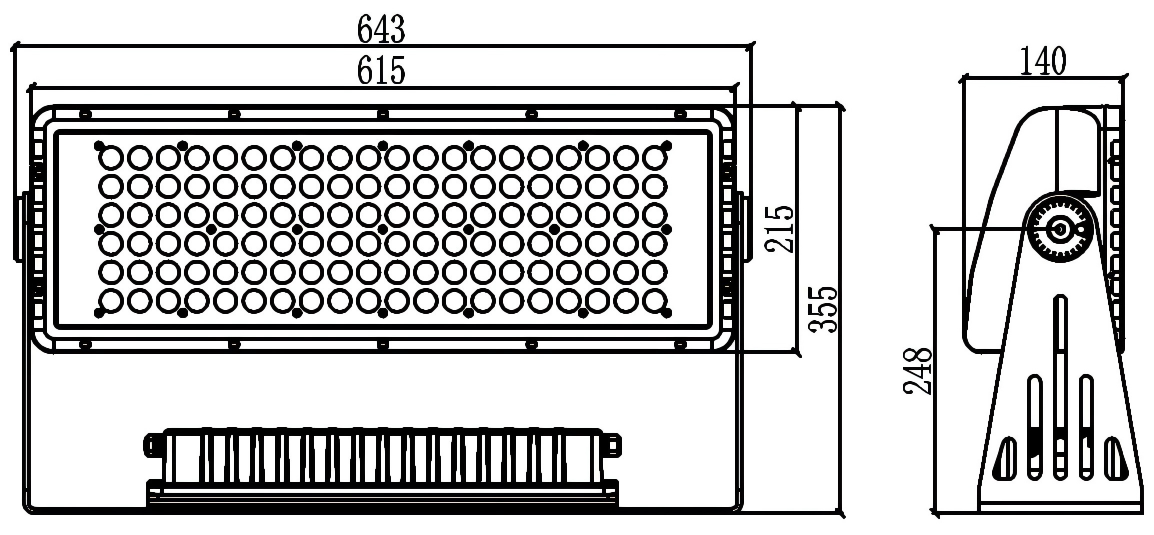

| DIMENSION |
| Filename | size | Uploaded | Downloading |
| SPECIFICATIONS | |||
 ColorPanel XL Q_dimension.pdf |
150k | 2025-07-01 |  |
