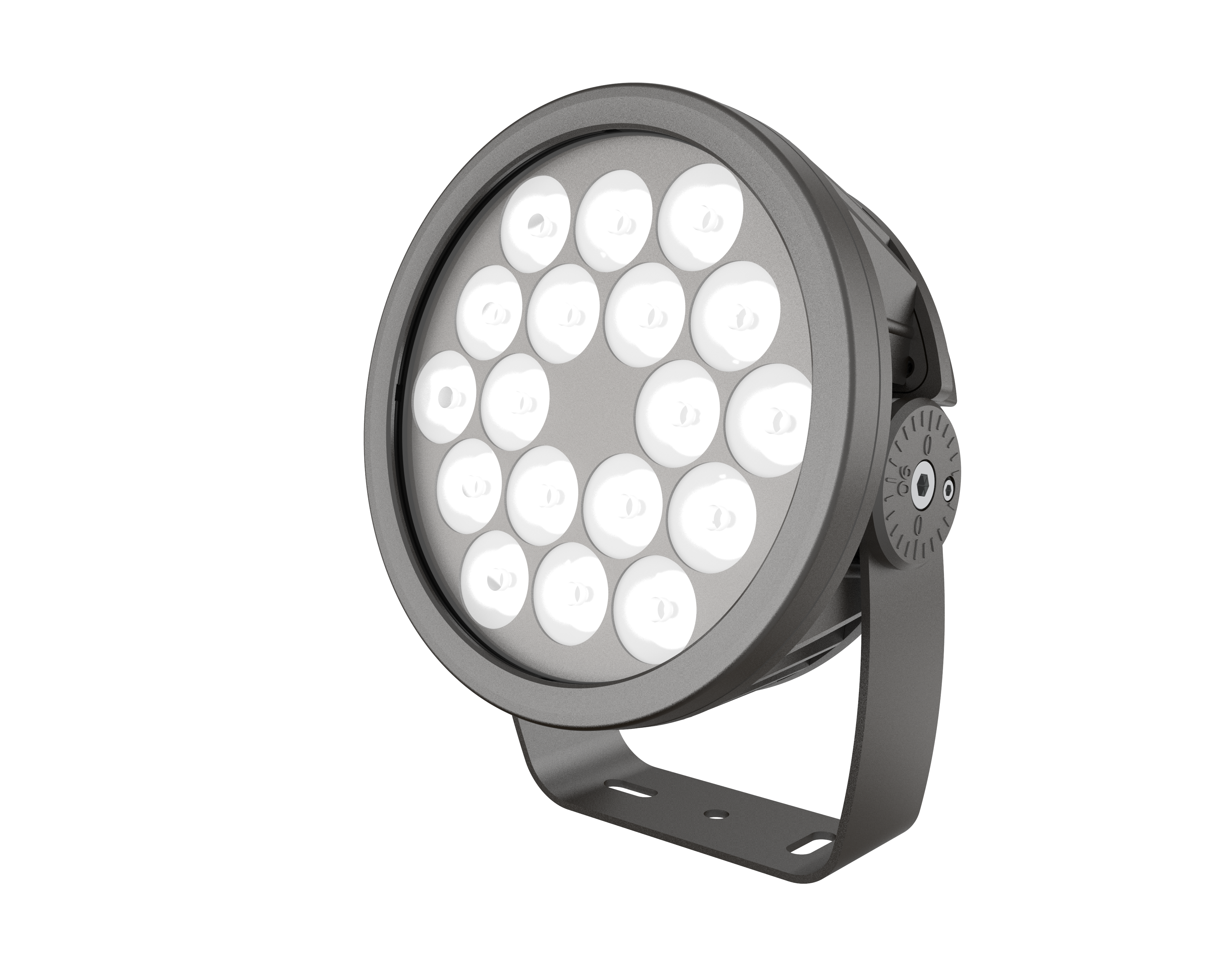

ColorSpot S Q

IP66 premium LED spot light

ColorSpot M Q is an exceptionally powerful IP66 LED spot light,highlumen delivery ouput,and ready for all weathers.

● Max.100W RGBW/RGBL

● 4,300lm

● IP66

SPECIFICATIONS

LIGHT SOURCE

● LEDs: Quad RGBW/RGBL

● Total output: 4,300 lm

● Life expectancy: 50,000 hours

OPTICS

● Beam angle: 10°/15°/30°/45°/60°/10°x60°/30°x60°

● CCT: 1800k~8000K

DYNAMIC EFFECTS

● Preset macro colors

CONTROL

● Protocols: DMX512, RDM, ON/OFF

● Channels: 1/4/5/7/8 Chs

ELECTRONICS

● Dimmer: linear 0 ~ 100% electronic dimmer

● Operating temperature: -20° ~ +50°

ELECTRICAL

● Mains power supply: 100-277V - 50/60Hz

● Max power consumption : 100 W

PHYSICAL

● Body: die-cast aluminum, grey/black

● Cooling: convection, overheating protection

● Signal connection: 3-pin signal cable in&out, 3m, open ends

● Power connection: 3-pin power cable, 3m, open ends

● Dimensions (LxWxH):260x145x365 mm

● Weight: 5.8 kgs

● IP rating: IP66

CERTIFICATIONS

● Certifcations: CE, RoHS

INSTALLATION METHOD

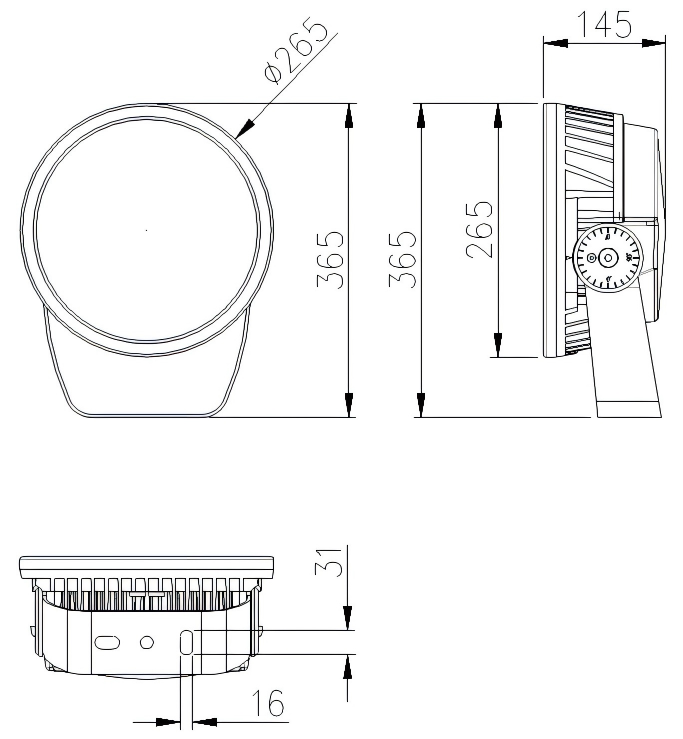

DIMENSION
