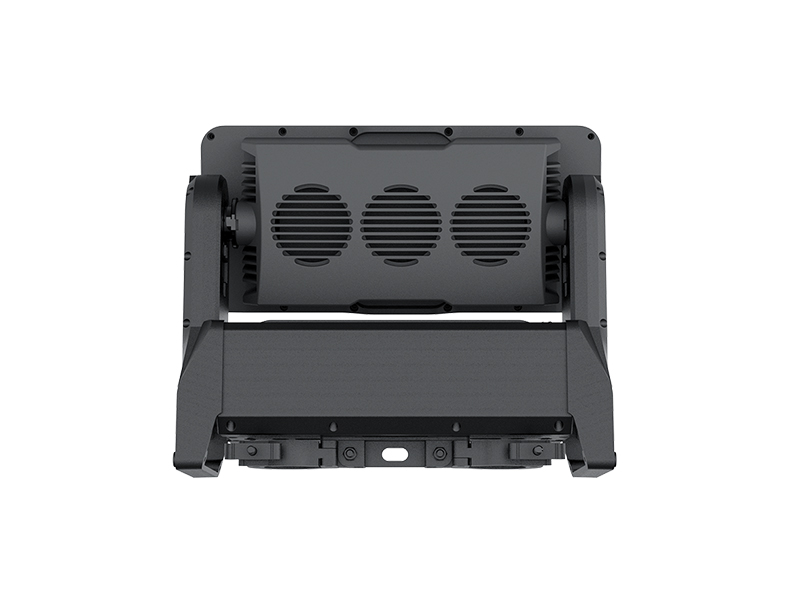

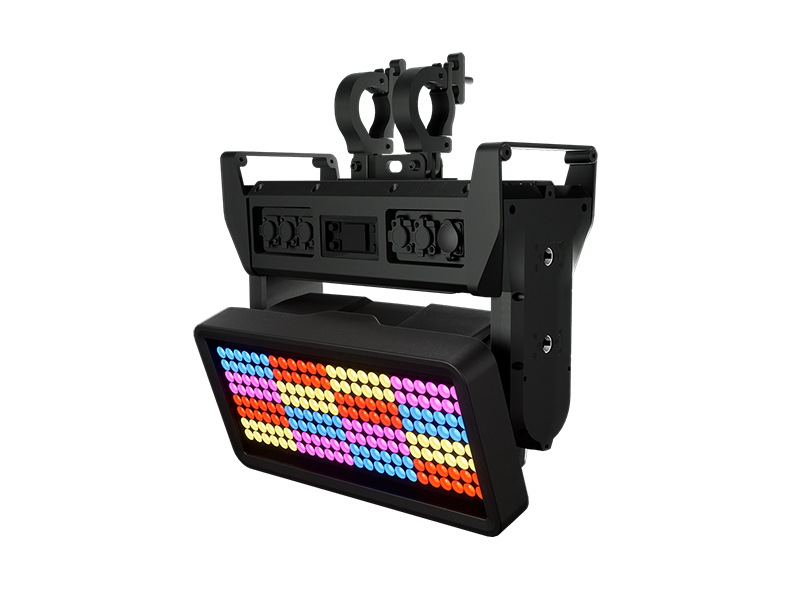

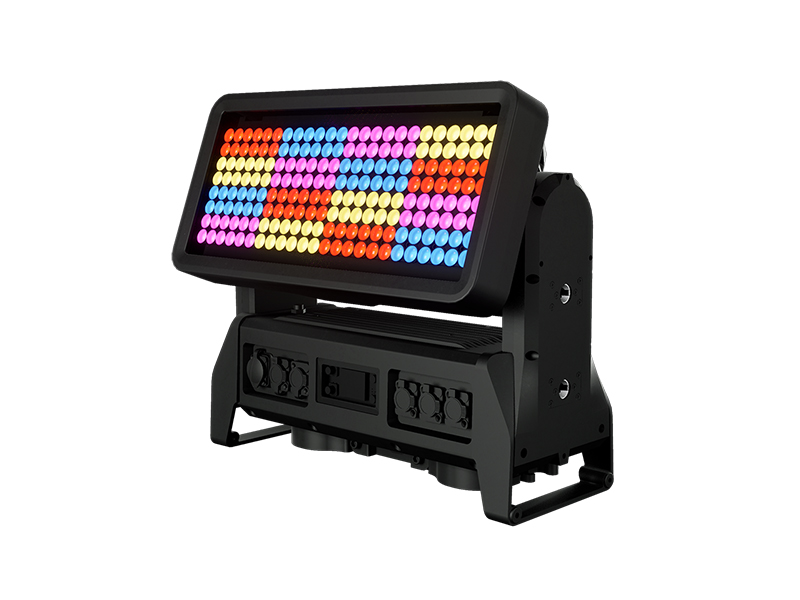

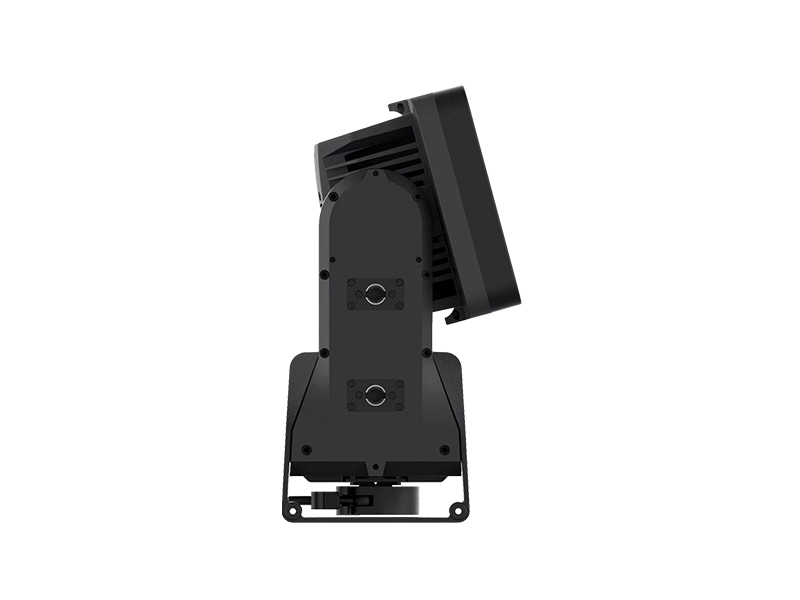

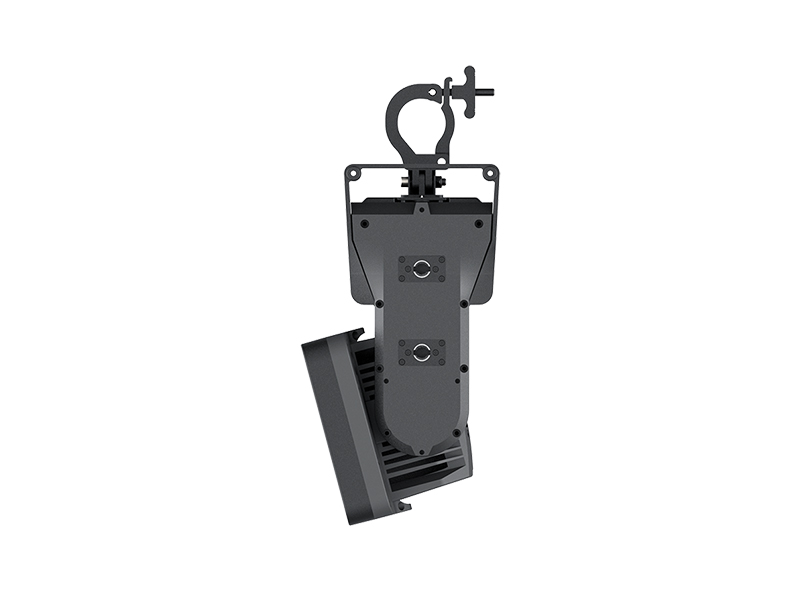

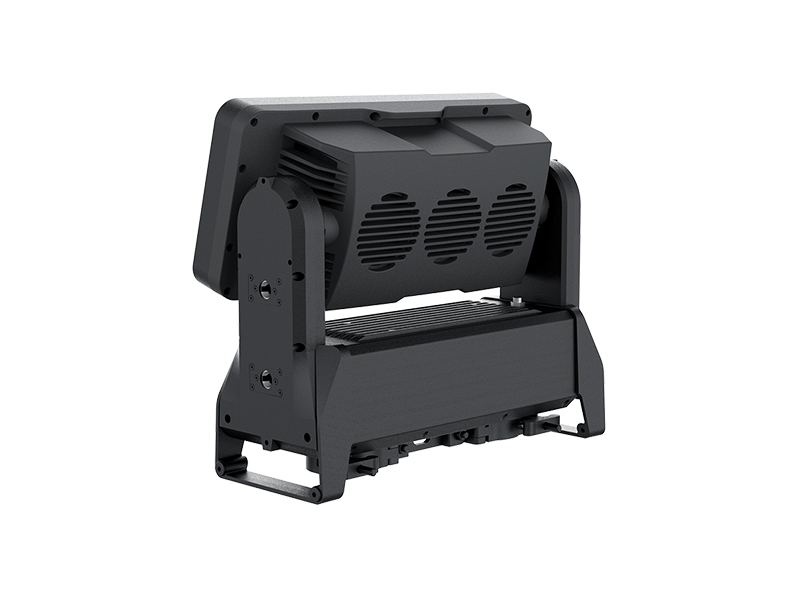

COLOR SPOT PRO IP C7
IP65 moving spot & strobe
C7 is an exceptionally powerful IP65moving spot & strobe,high lumen delivery ouput and ready for all weathers.
● 1500W
● Spot, pixel
● 108,860lm
● IP65 Rating
| SPECIFICATIONS |
|
LIGHT SOURCE ● LEDs: 192x 10W RGBW, OSRAM 5050, optioal RGBL ● LED Segments: 16(4x4) ● 108,860lm ● CRI: Ra≥90 ● CTO: 2700K-8000K ● Life expectancy: 50000 hours OPTICS ● 23° lens optics ● Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz DYNAMIC EFFECTS ● Tilt180° ● Tilt Ranges: 0°to180°(endcode) ● Standalone Color Mixing: Yes ● Dim Modes: 4 selectable dimming modes available ● Built-in Automated Programs:Yes CONTROL ● Protocols: DMX512, RDM, optional (Art-Net, sACN) ● Optional WDMX+CRMX(Timo FX RDM) ● Display: LCD ● Channels: 6/10/14/53/71 CHs |
ELECTRONICS ● Dimmer: linear 0 ~ 100% electronic 16bit dimmer ● Strobe Rate: 0 to 30Hz ● Operating temperature: -20° ~ +45° ELECTRICAL ● Mains power supply: 100-240VAC- 50/60Hz ● Max power consumption: 1500W PHYSICAL ● Housing Material: Magnesium alloy, black ● Cooling: Temp controlled, noiseless fan for forced air ● Signal connection: Seetronic XLR 3/5p IN/OUT ● Power connection: Seetronic powerCON TRUE1 In/Out ● IP65 RJ45 Ethernet In/Out(optional) ● Dimensions (LxWxH): 424x187.96x357.5mm ● Weight: 12.4kgs ● IP rating: IP65 CERTIFICATIONS ● Certifcations: CE,RoHS Standard Included ● 1x C7 ● 1x 2.0m Seetronic Powerkon IP65 power cord ● 1x integrated fold clamp of S7/C7/G7 series ● 1x Manual ● 1x Safety Cable Optional Accessories ● Flight case 1-in-1 ● IP Rated EtherCon Cable ● IP DMX Cable |

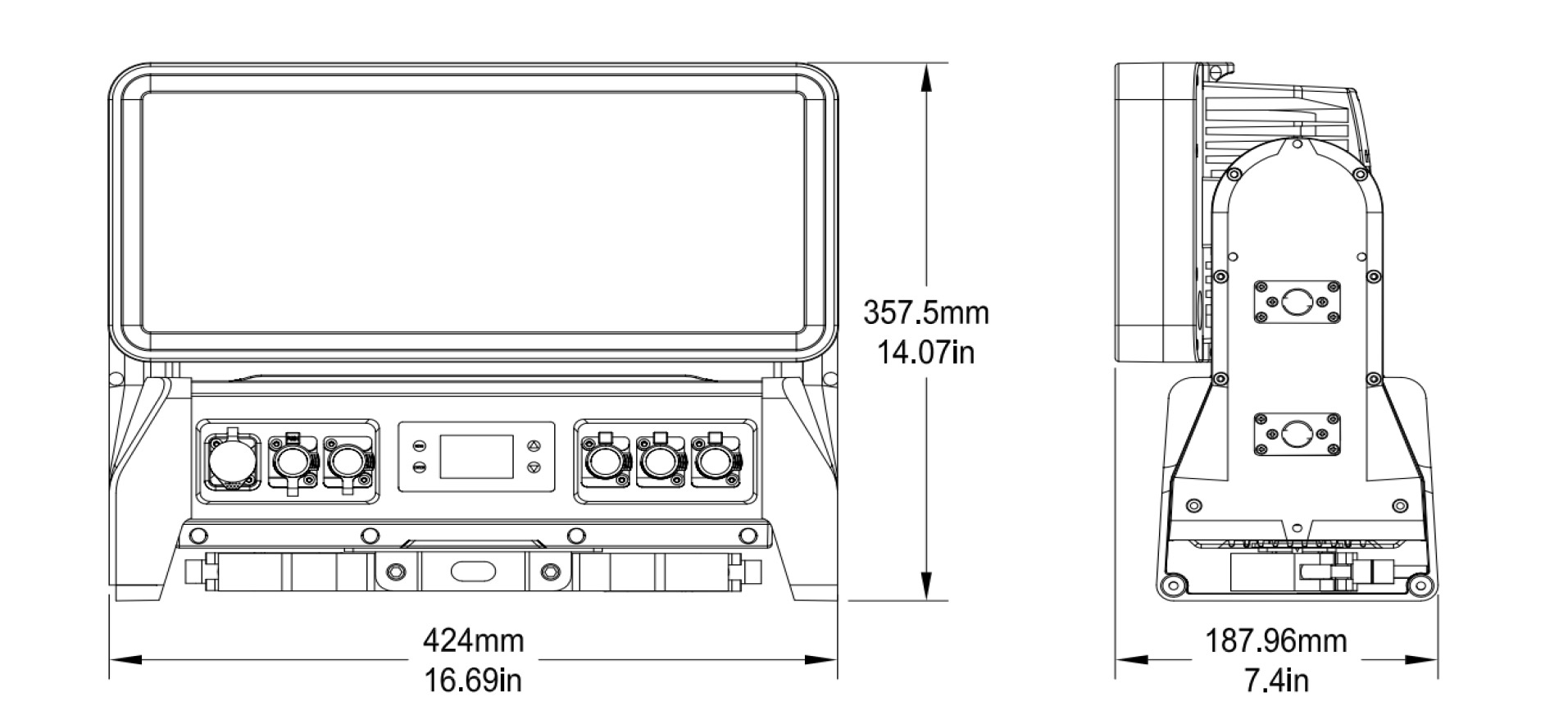

| DIMENSION |
| Filesname | Size | Uploaded | Download |
| MANUALS | |||
 C7 User Manual.pdf |
800k | 2025-07-01 |  |
