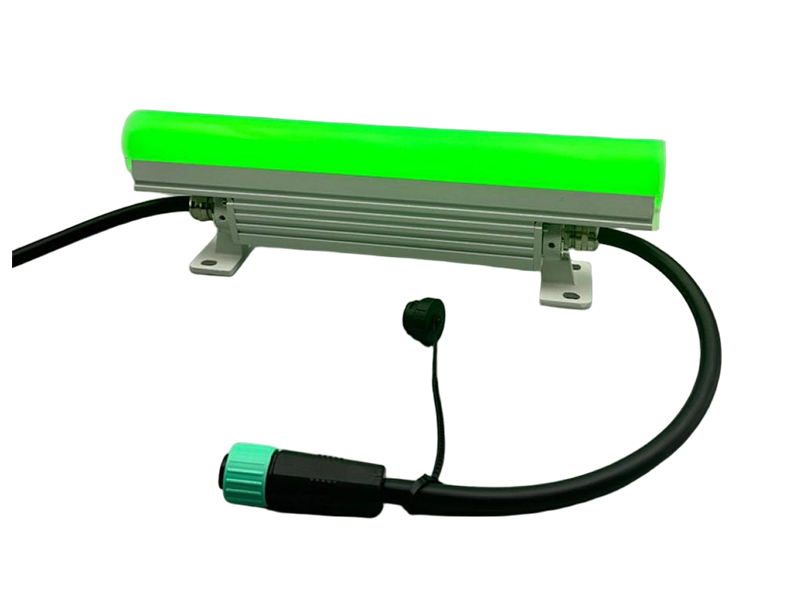

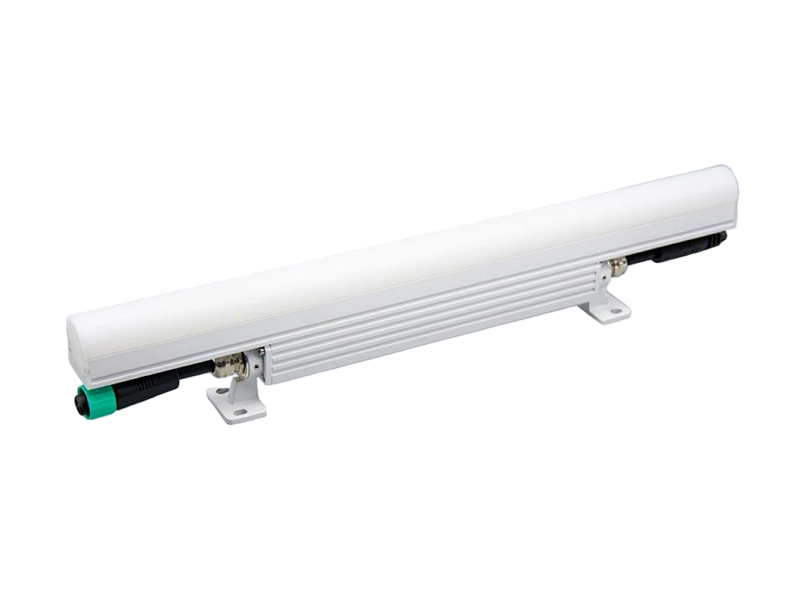

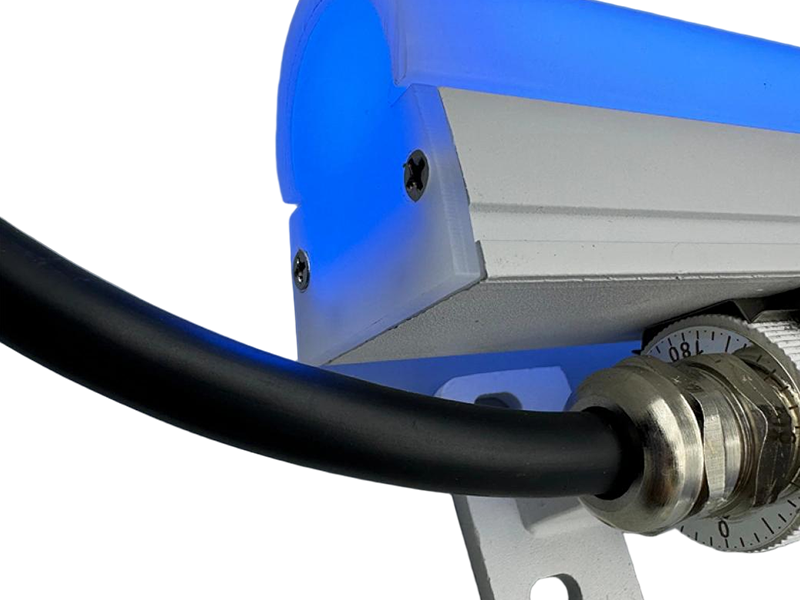

ArcLine

IP66 LED pixel mapping light

ArcLine is an exceptionally powerful IP66 LED pixel mapping light,high lumen delivery output,and ready for all weathers.

● Available 1ft/2ft/3ft/4ft

● 25lm/w

● IP66

SPECIFICATIONS

LIGHT SOURCE

● LEDs: RGBW/CW/WW

● Total output: 200lm/375lm/450lm/750lm/900lm

● Life expectancy: 50,000 hours

OPTICS

● Beam angle: 120°

DYNAMIC EFFECTS

● Segments control: 1/3/4/6/8 segments

CONTROL

● Protocols: DMX512, RDM, ON/OFF

● Channels: 8Chs/12Chs/24Chs/32Chs

ELECTRONICS

● Dimmer: linear 0 ~ 100% electronic dimmer

● Operating temperature: -20° ~ +50°

ELECTRICAL

● Mains power supply: 100-277VAC, 50/60Hz

● Max power consumption : 8W/15W/18W/30W/36W

PHYSICAL

● Body: extruded aluminum, white/grey/black

● Cover: clear polycarbonate

● Cooling: convection, overheating protection

● Connection: 6-pin Power+DMX cable with IP connectors

● Dimensions: (300/500/600/1000/1200) x37.8x94.3 mm

● Weight: 0.8kgs/1.6kgs/1.8kgs/2.4kgs/3.2 kgs

● IP rating: IP66

CERTIFICATIONS

● Certifcations: CE, RoHS, ETL

Effects

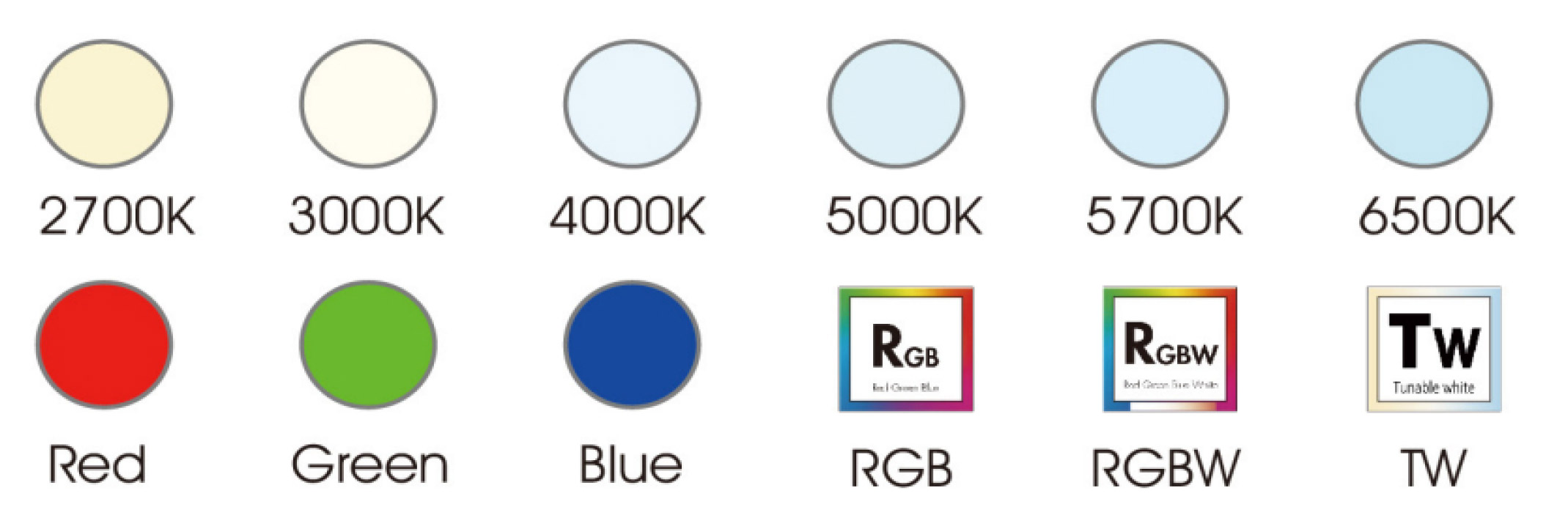

Color Temperature :

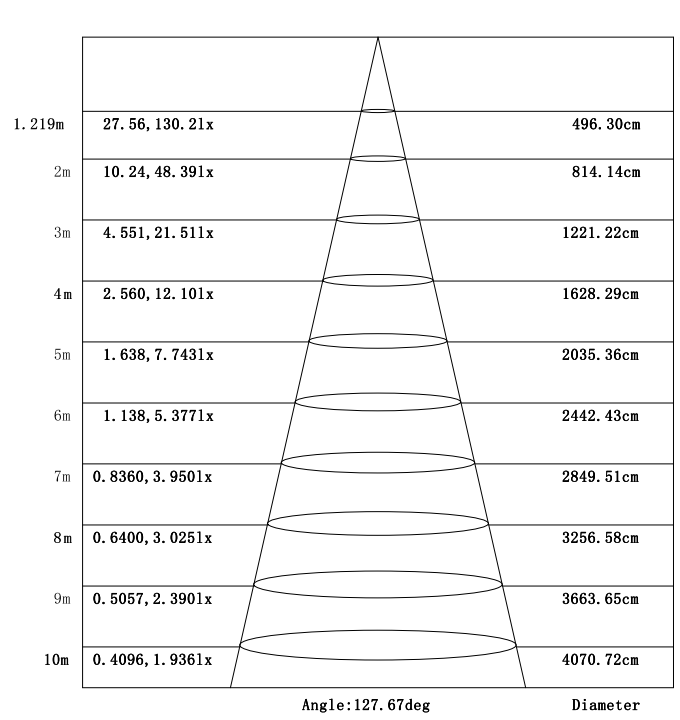

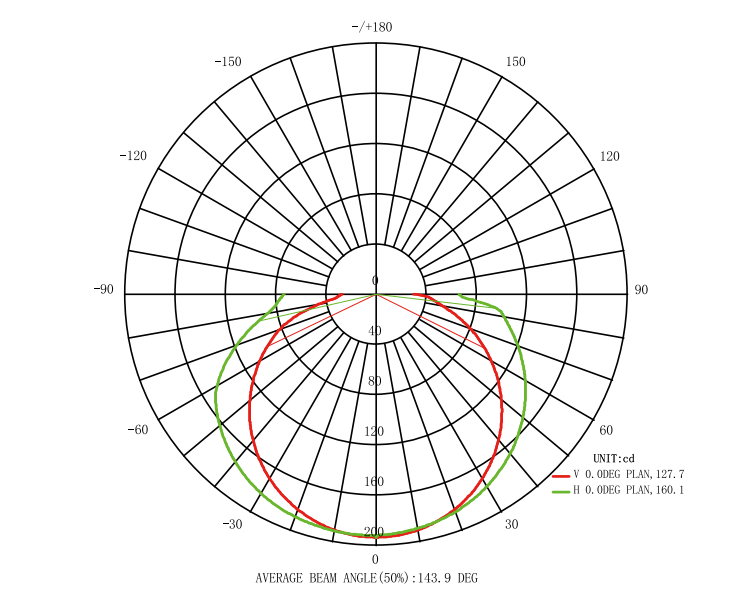

IES:

ACCESSORIES

Standard:

● Safety cord: 1pcs

● Manual: 1pcs

Optional :

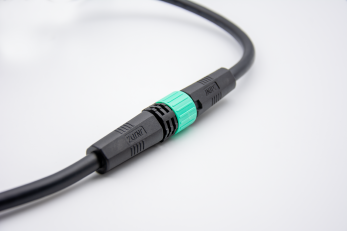

● 7-pin extension cable: 1m/2m/3m/4m/5m/7m/10m

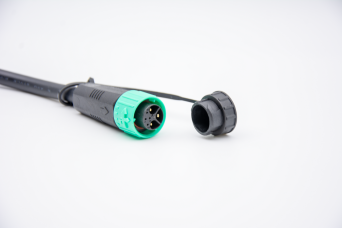

● Leader cable: 1m, one side with 7-pin female IP connector, another side with open wires

● End terminal cap

● Glare shield

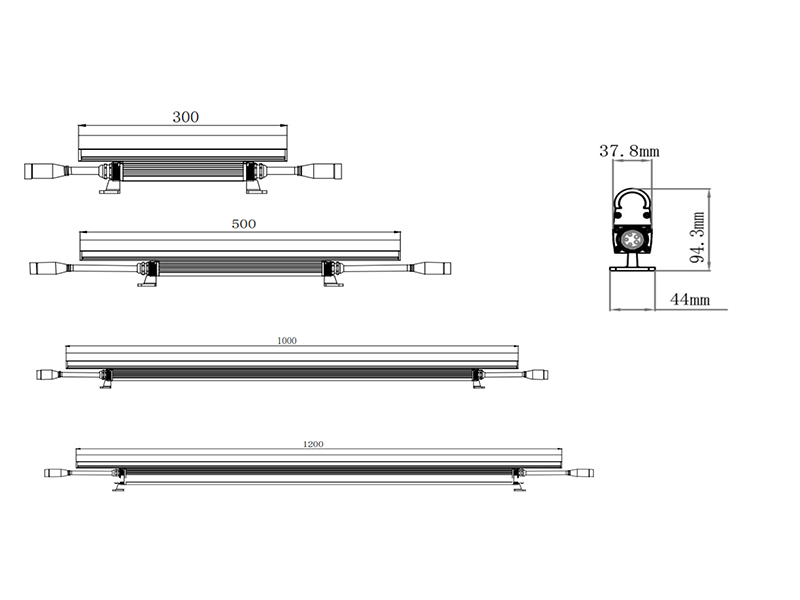

DIMENSION
