GOBO 650 PRO IP
IP65 LED gobo projector
GOBO 650 PRO IP is an exceptionally powerful IP65 gobo projector, high-power and lumen output，with accuare framming system.
● 7500K LED module
● Exchangeable glass gobo
● High output >20,000lumen
● Electronic framming system
● IP65 Rating
| SPECIFICATIONS |
|

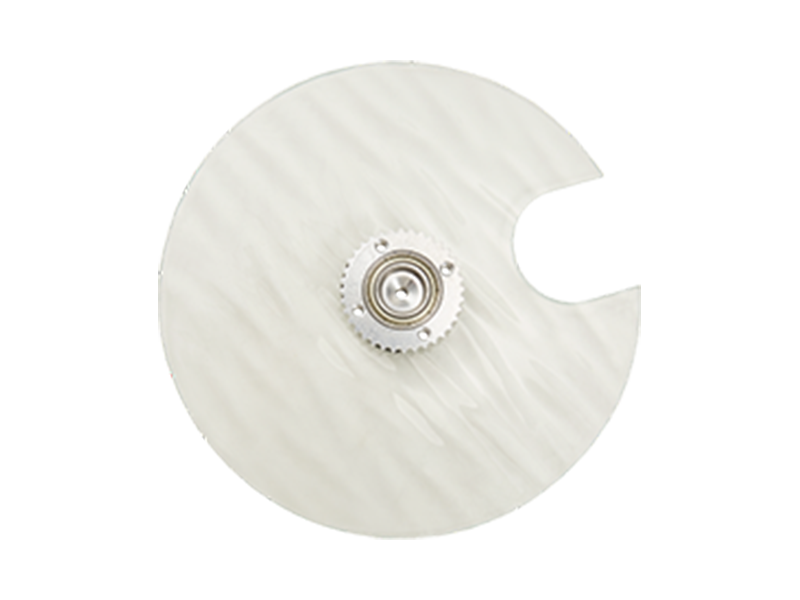

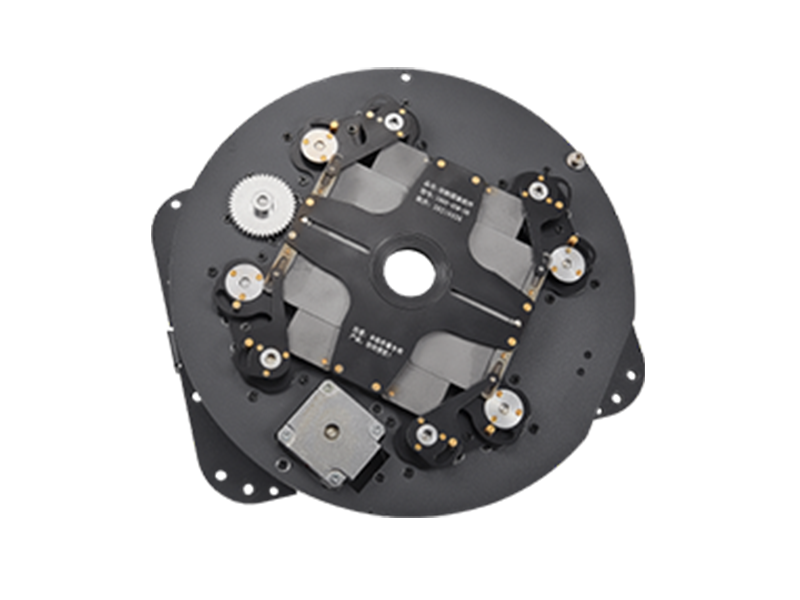

LIGHT SOURCE ● LEDs: 600W 7500K LED module ● Life expectancy: 50000 hours OPTICS ● Beam angle: 10°-50° electronic DYNAMIC EFFECTS ● Gobo: 6 rotating exchangeable glass gobo + open ● Color wheel: 7+open ● Animation wheel: can float left and right, adjustable speed ● Prism: 4-F ● Framming: 4 electronic blade shutters ● Dimmer: 0-100% linear dimmer CONTROL ● Protocols: DMX512, RDM ● Pixel control: 11Chs ● Display: LCD touch display |
ELECTRONICS ● Dimmer: linear 0 ~ 100% electronic dimmer ● Operating temperature: -20° ~ +45° ELECTRICAL ● Mains power supply: 100-240V - 50/60Hz ● Max power consumption : 650 W PHYSICAL ● IP rating: IP65 ● Body: die-cast aluminum (grey/black) ● Cooling: Temp controlled, overheating protection ● Signal connection: Permanently mounted 3-pin signal cable in&out, 2m, open ends ● Power connection: Permanently mounted mains cable, 2m, open ends ● Dimensions: 538x349x428 mm ● Weight: 23 kgs CERTIFICATIONS ● Certifcations: CE, RoHS |
| Effects |

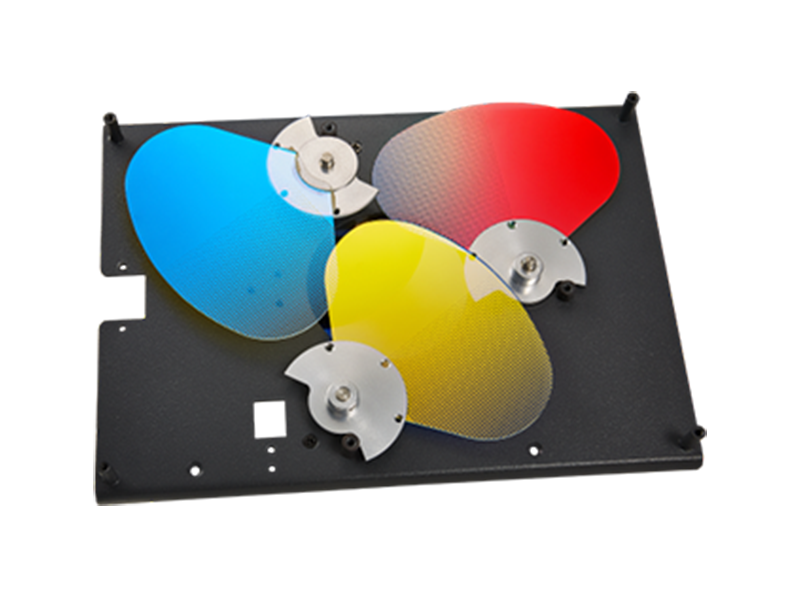

CMY

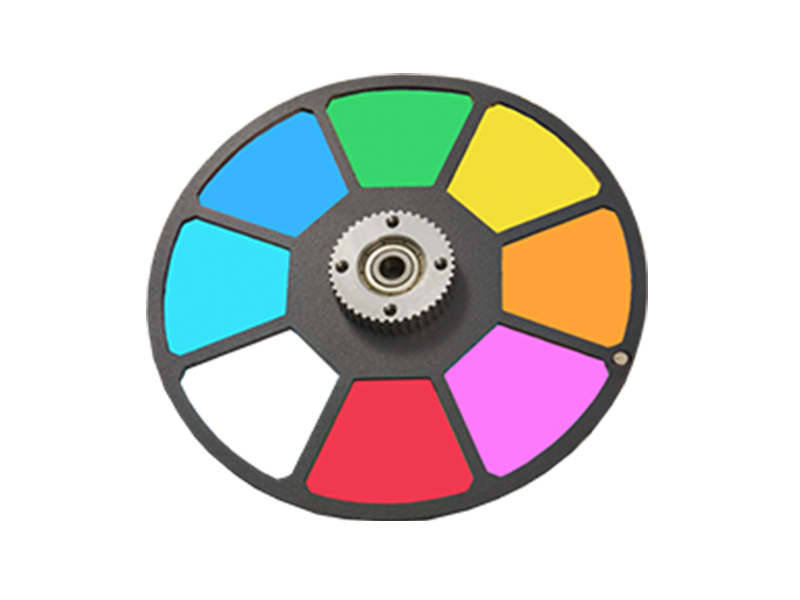

COLOR WHEEL

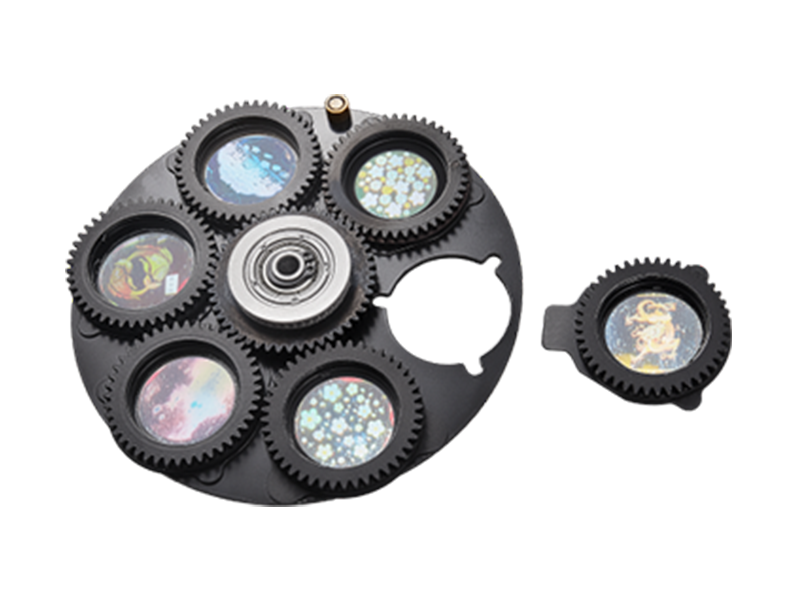

ROTATING GOBO WHEEL
(Diameter 14MM,External diameter 22.9MM,Thickness 1.1MM
| ACCESSORIES |
● Safety cord: 1pcs

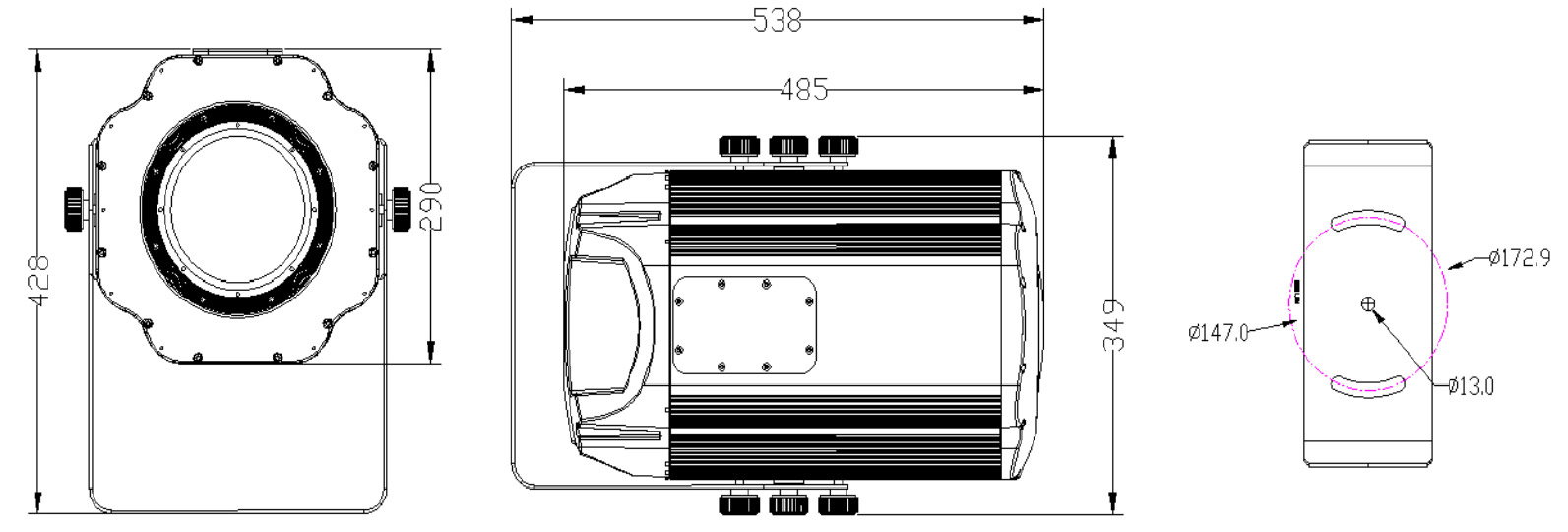

| DIMENSION |

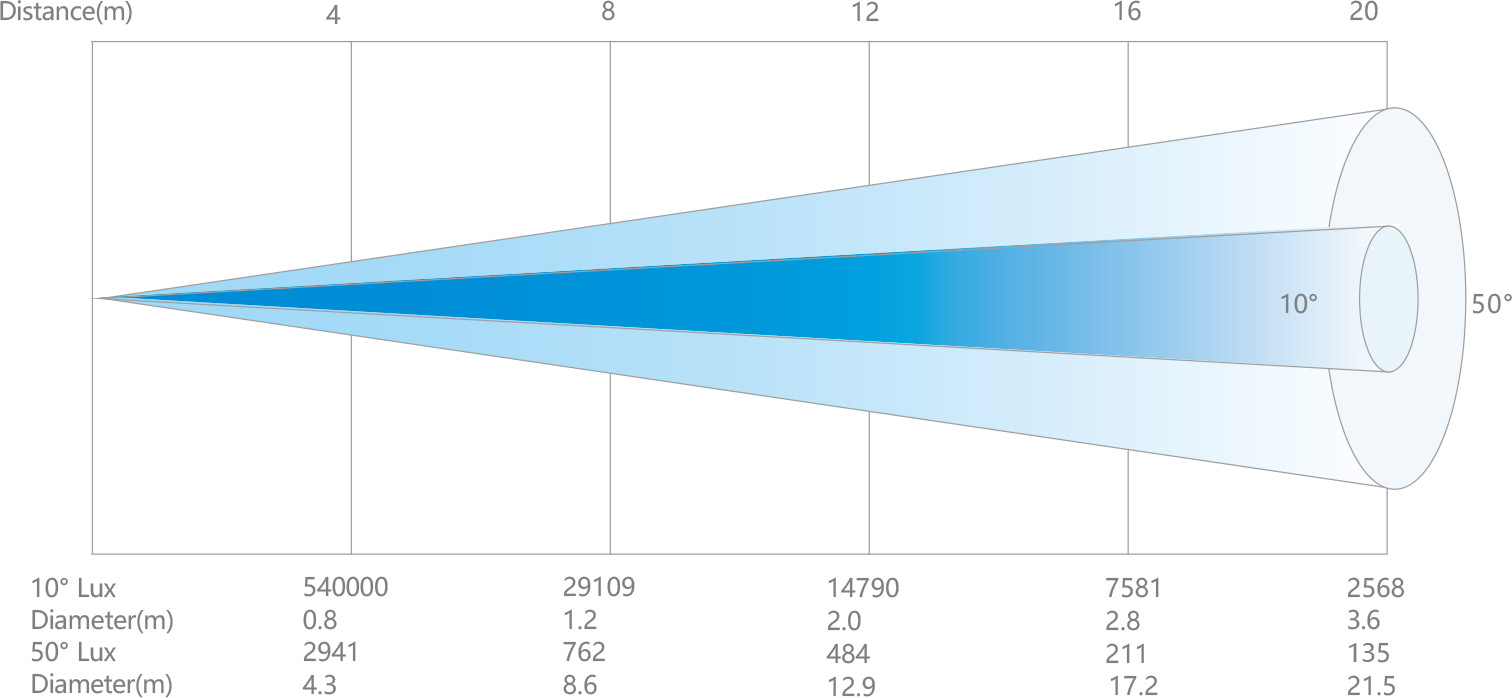

| ILLUMINATION |
| Filename | size | Uploaded | Downloading |
| MANUALS | |||
 GOBO 650 PRO IP_datasheet.pdf |
150k | 2025-07-01 |  |
