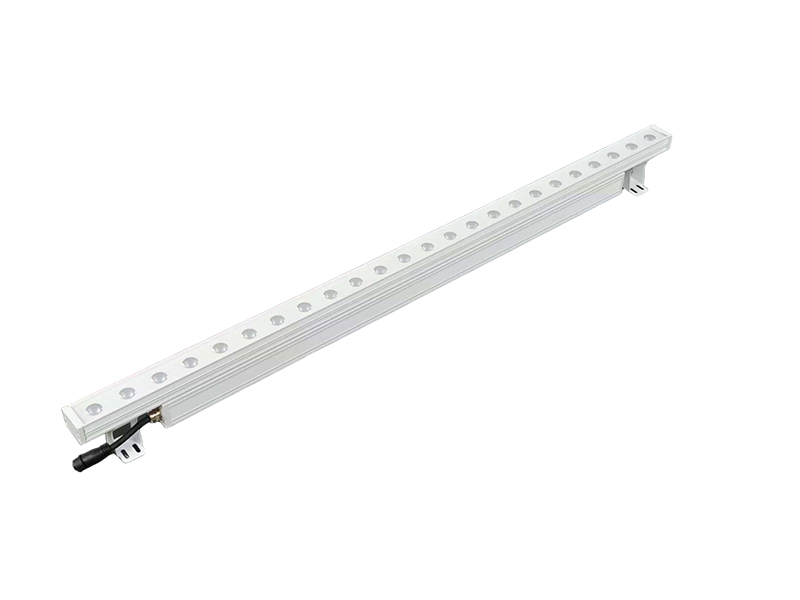

ArcGraze

IP66 LED linear graze washer

ArcGraze is an exceptionally powerful IP66 LED linear wall light,highlumen delivery ouput,and ready for all weathers.

● Available 1ft/2ft/3ft/4ft

● 40lm/w

● IP66

SPECIFICATIONS

LIGHT SOURCE

● LEDs: RGBW/CW/WW

● Total output: 480lm/960lm/1440lm/1920lm

● Life expectancy: 50,000 hours

OPTICS

● Beam angle: 15°/25°/30°/45°/60°/15°x60°/15°x45°/30°x60°

● CCT: 2700k~6000K

DYNAMIC EFFECTS

● Preset macro colors

CONTROL

● Protocols: DMX512, RDM, ON/OFF

● Channels: 1chs/4chs/8chs/12chs/16chs/20chs

ELECTRONICS

● Dimmer: linear 0 ~ 100% electronic dimmer

● Operating temperature: -20° ~ +50°

ELECTRICAL

● Mains power supply: 100-277VAC, 50/60Hz

● Max power consumption : 12W/24W/36/48W

PHYSICAL

● Body: extruded aluminum, grey/black

● Cooling: convection, overheating protection

● Signal connection: 3-pin DMX cable in&out with IP connectors

● Power connection: 3-pin Power cable in&out with IP connectors

● Dimensions: (300/600/900/1200)x40x89 mm

● Weight: 0.7kgs/1.4kgs/2.1kgs/2.8kgs

● IP rating: IP66

CERTIFICATIONS

● Certifcations: CE, RoHS, ETL

Effects

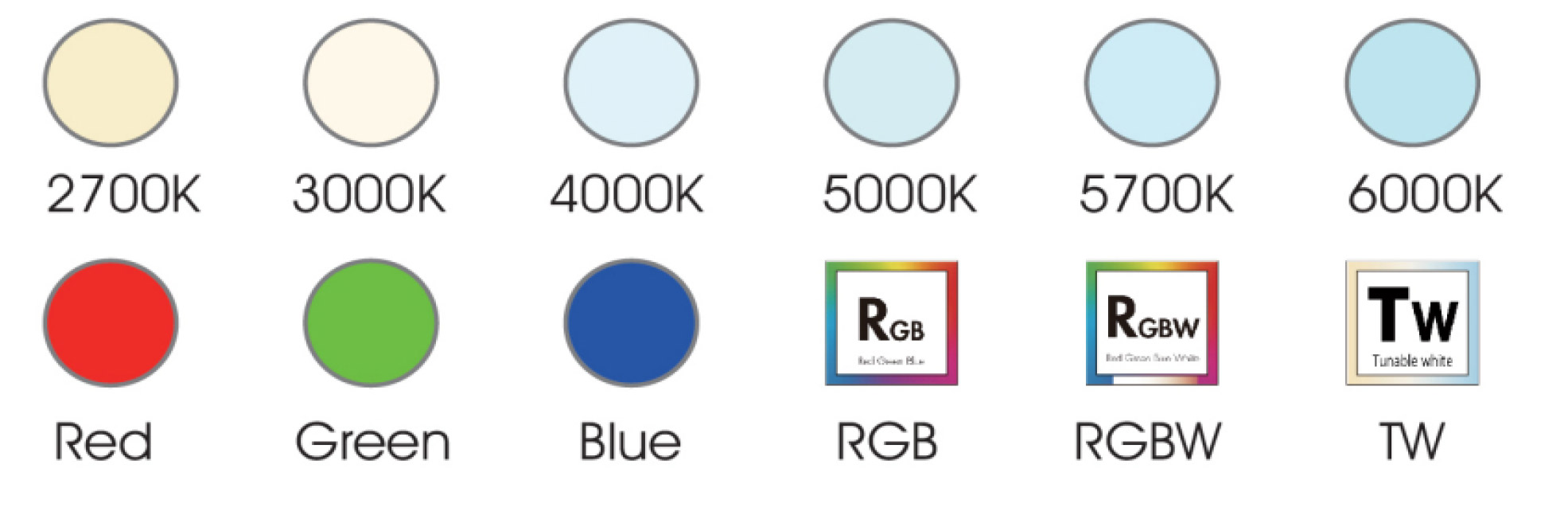

COLOR WHEEL

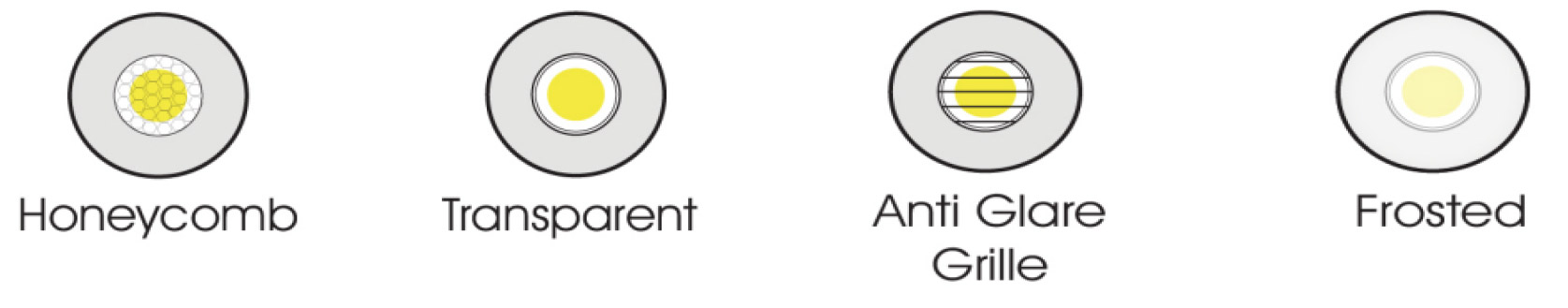

Lens:

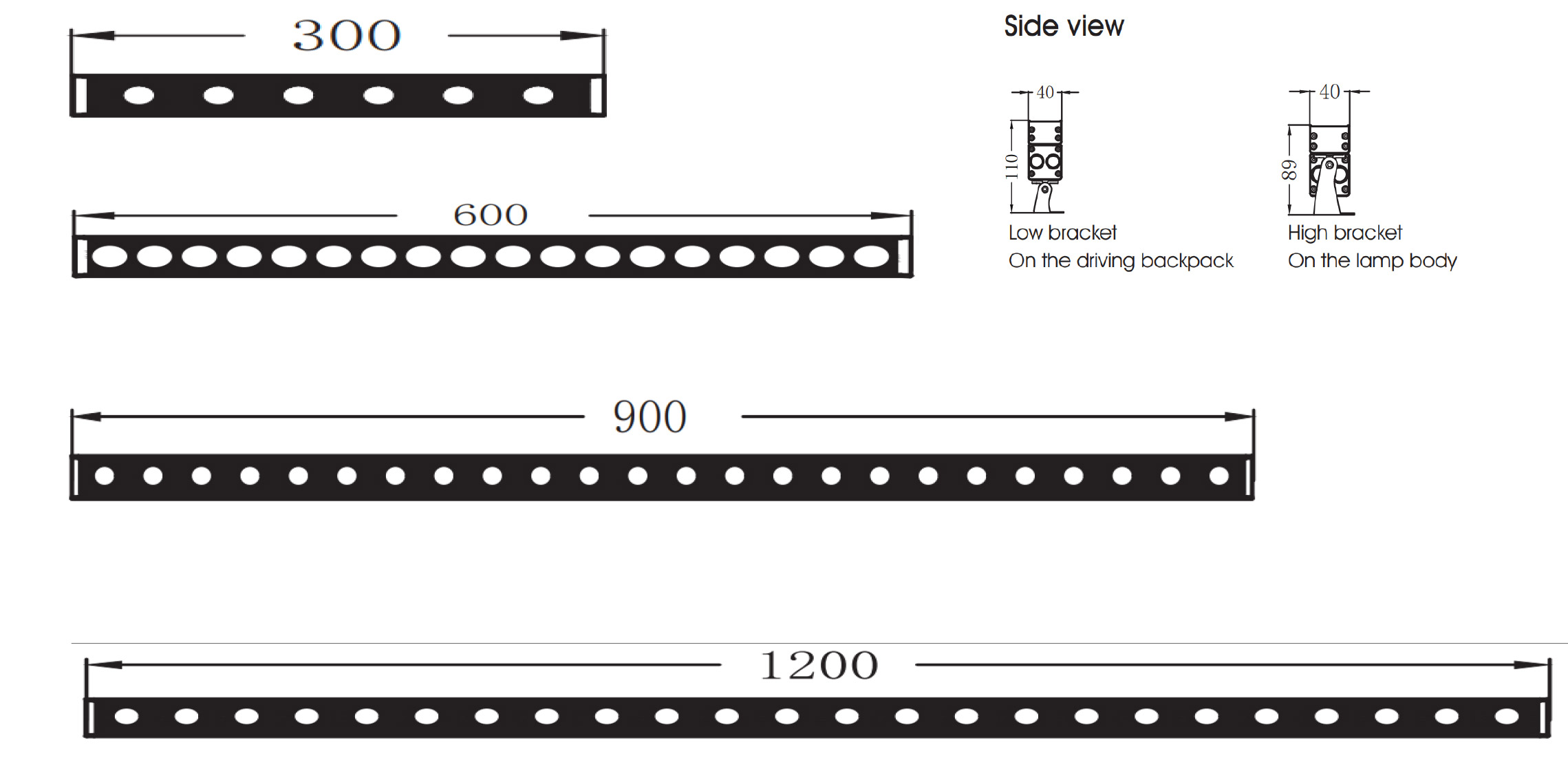

DIMENSION
