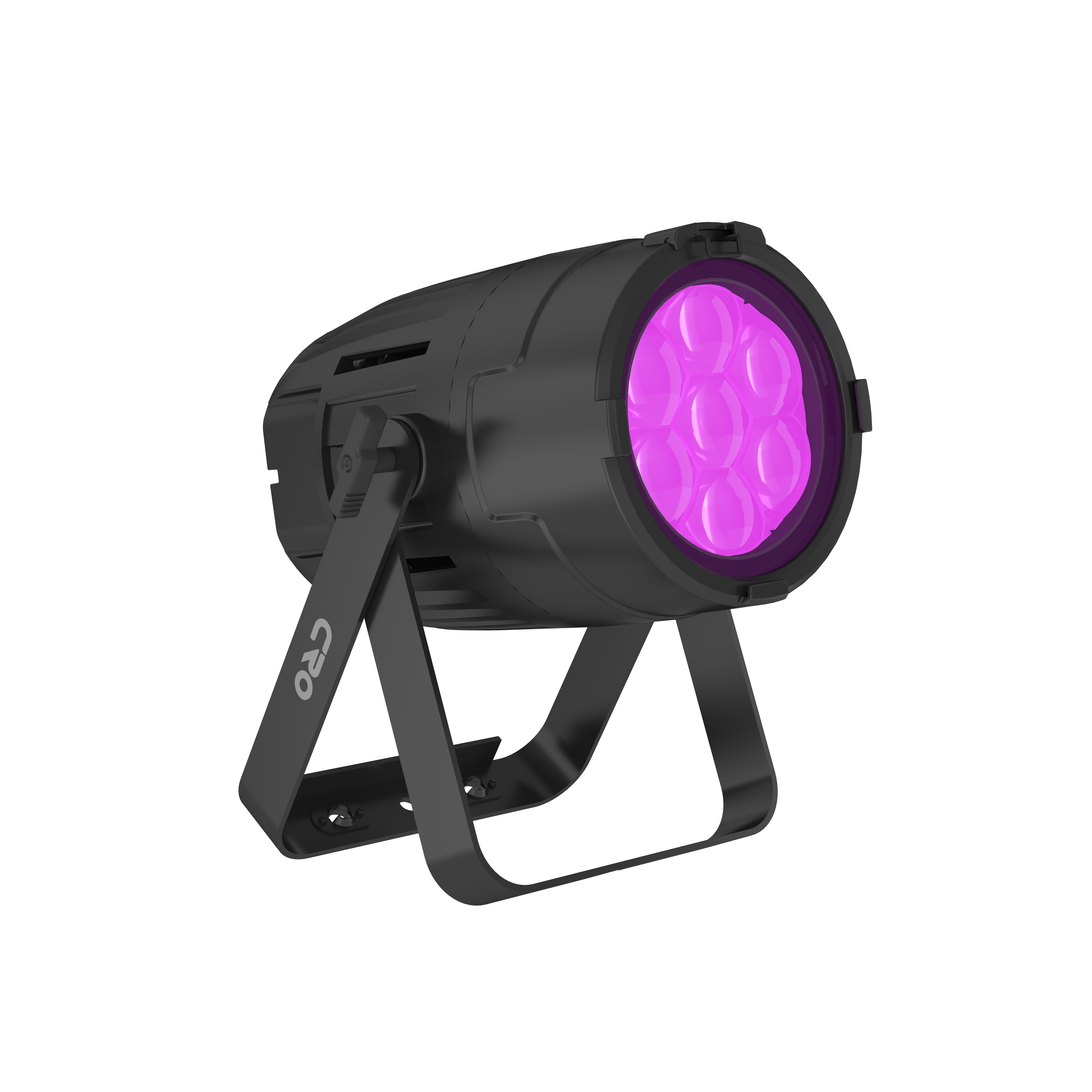

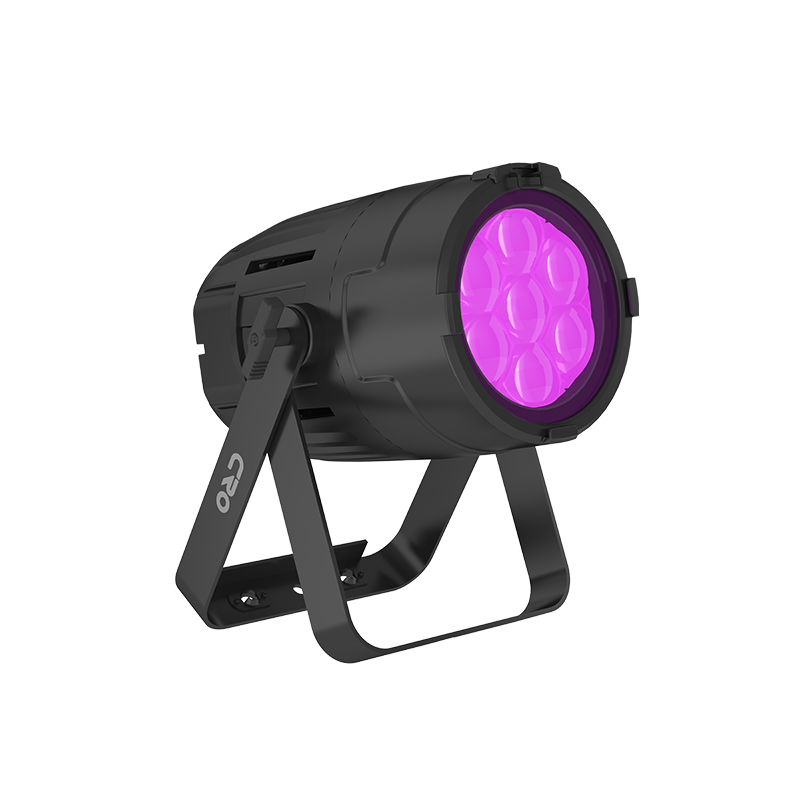

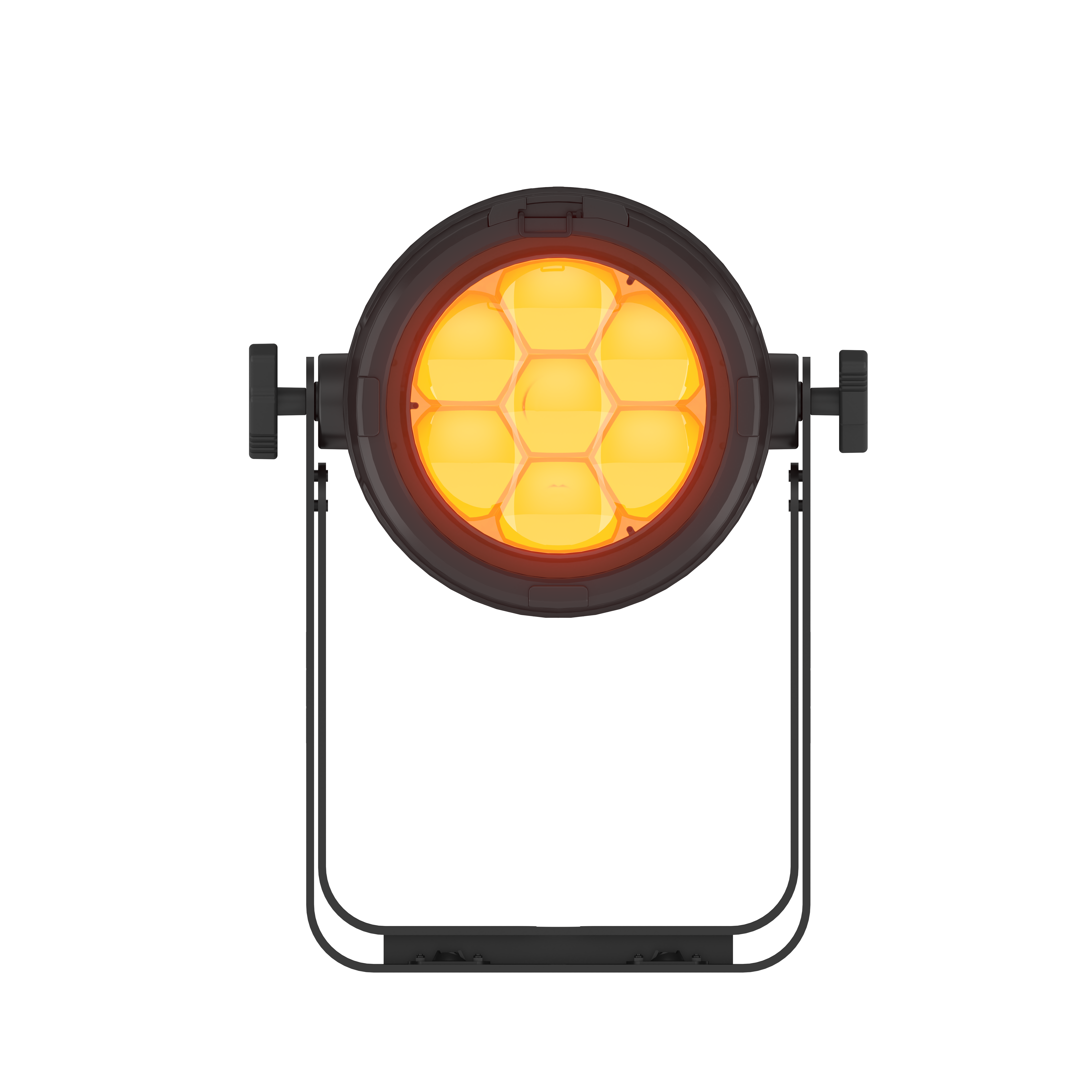

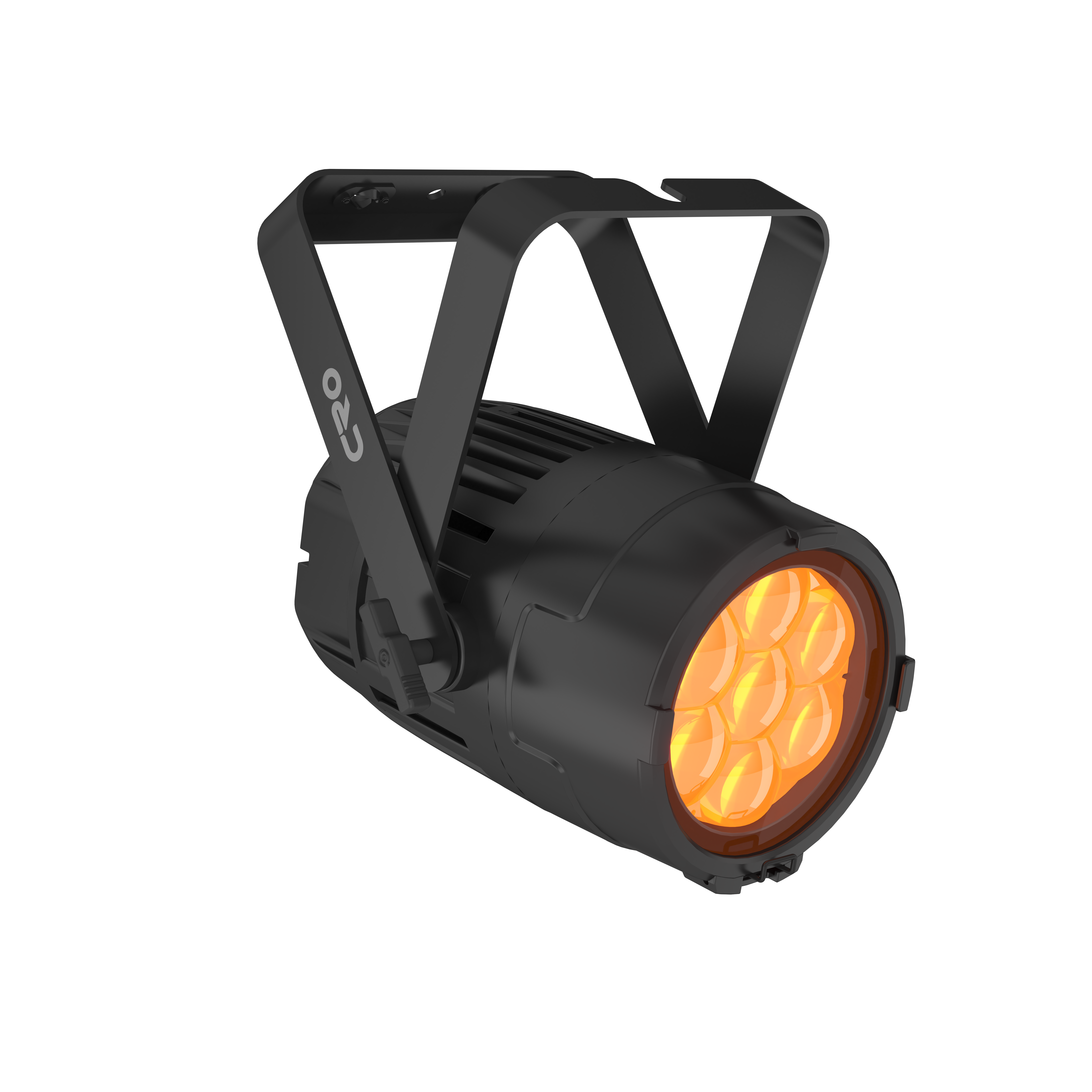

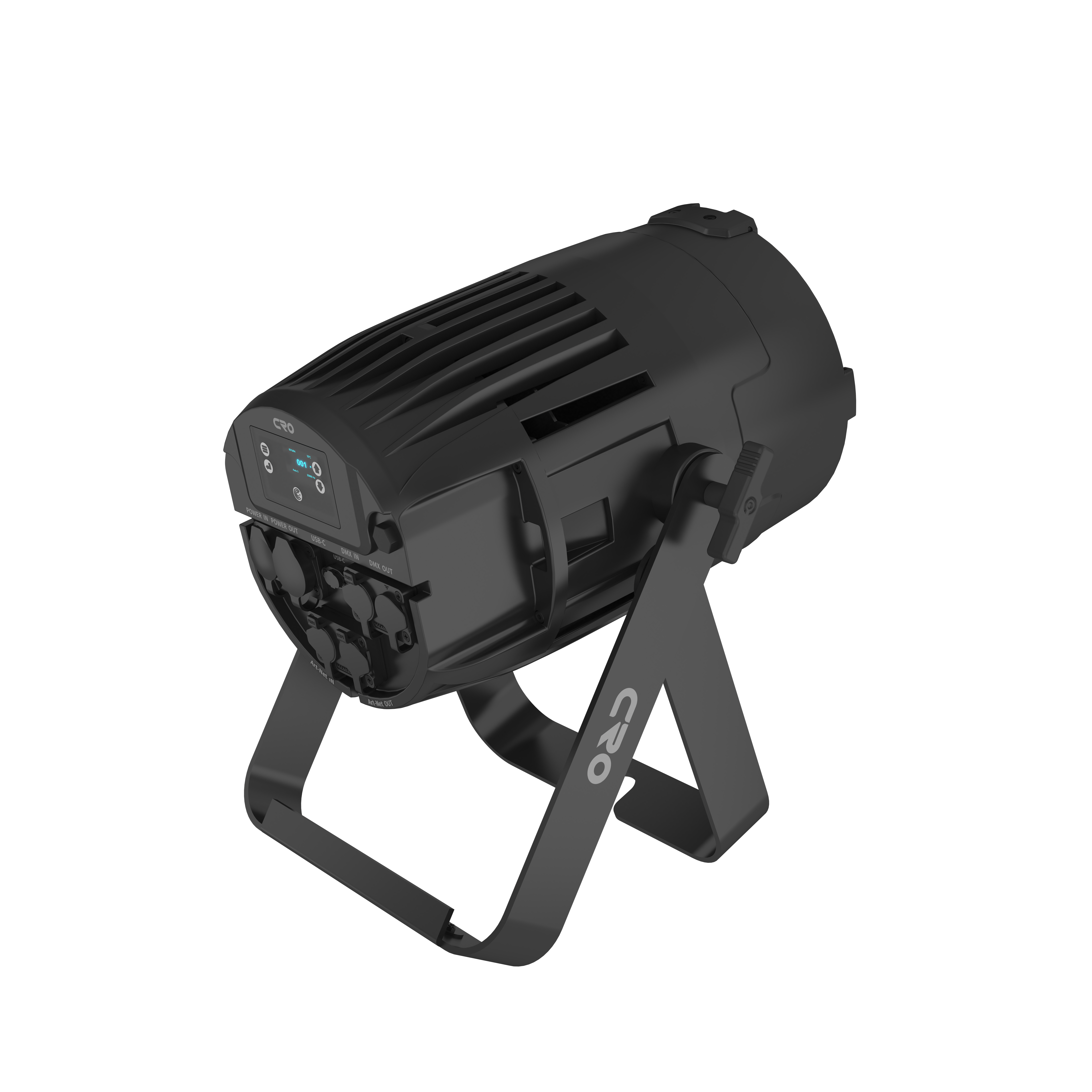

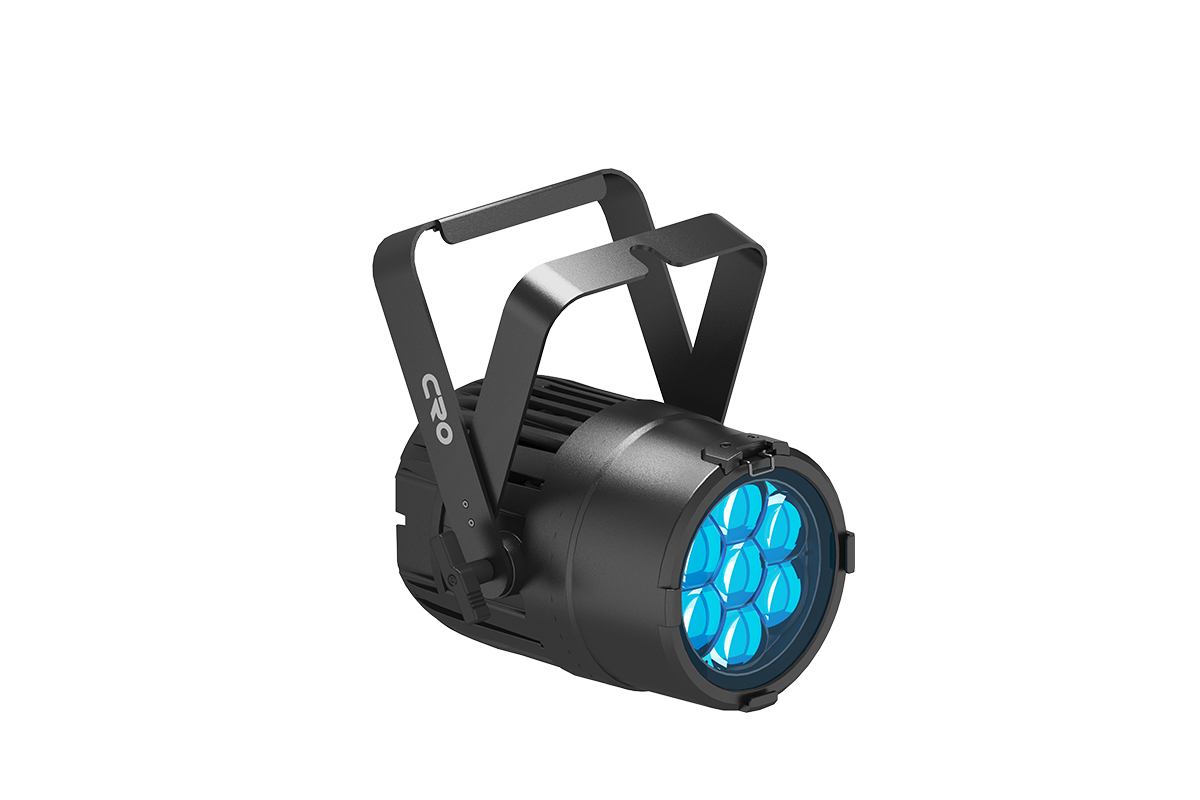

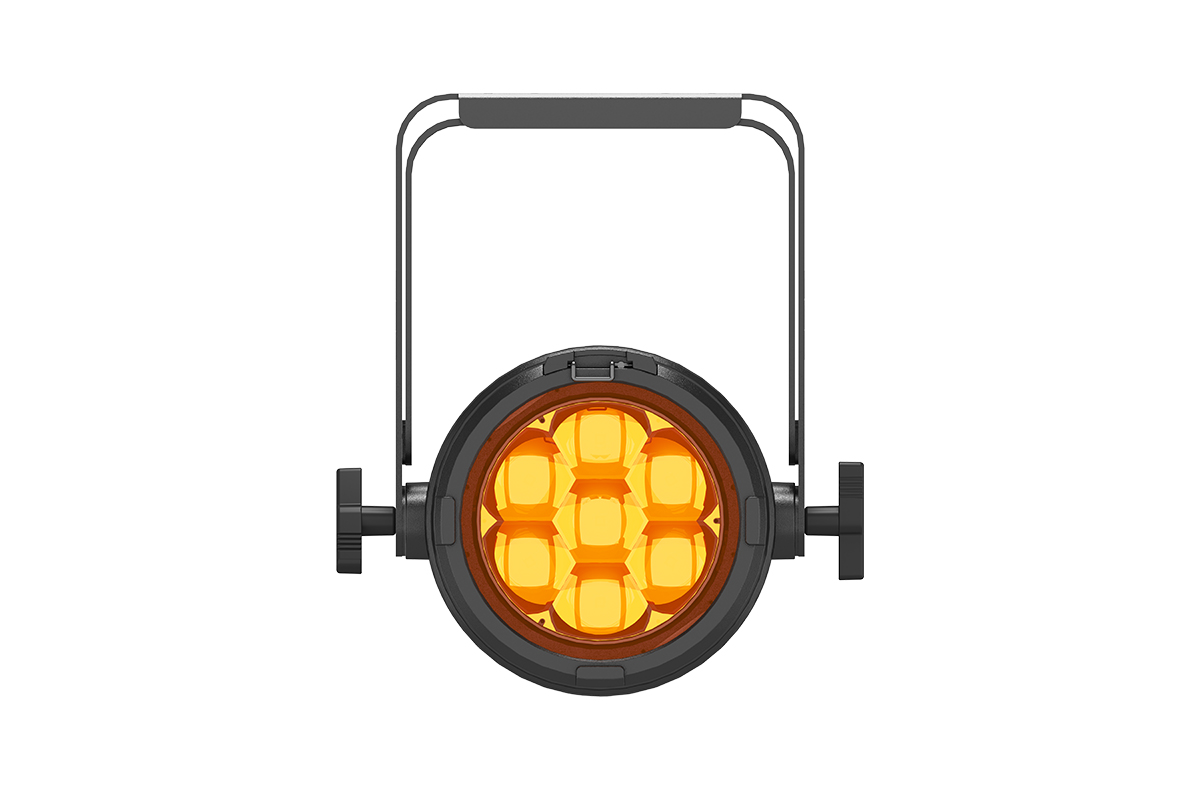

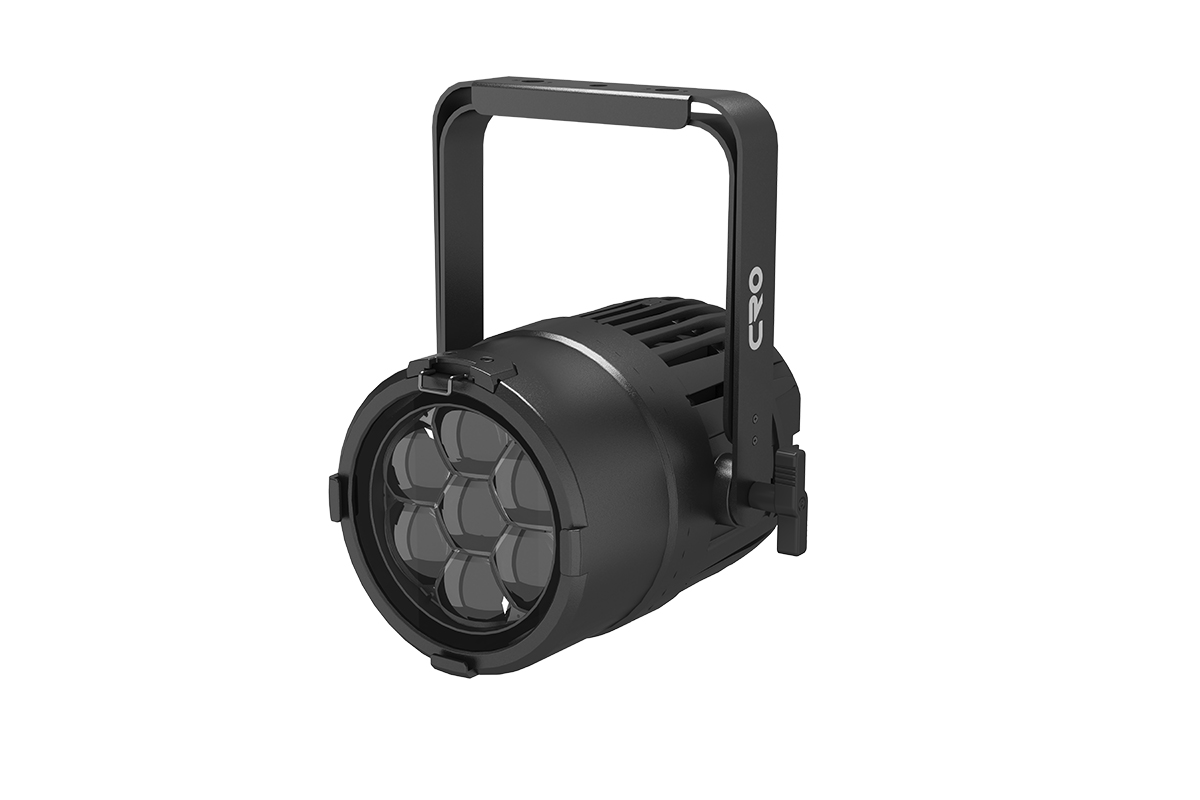

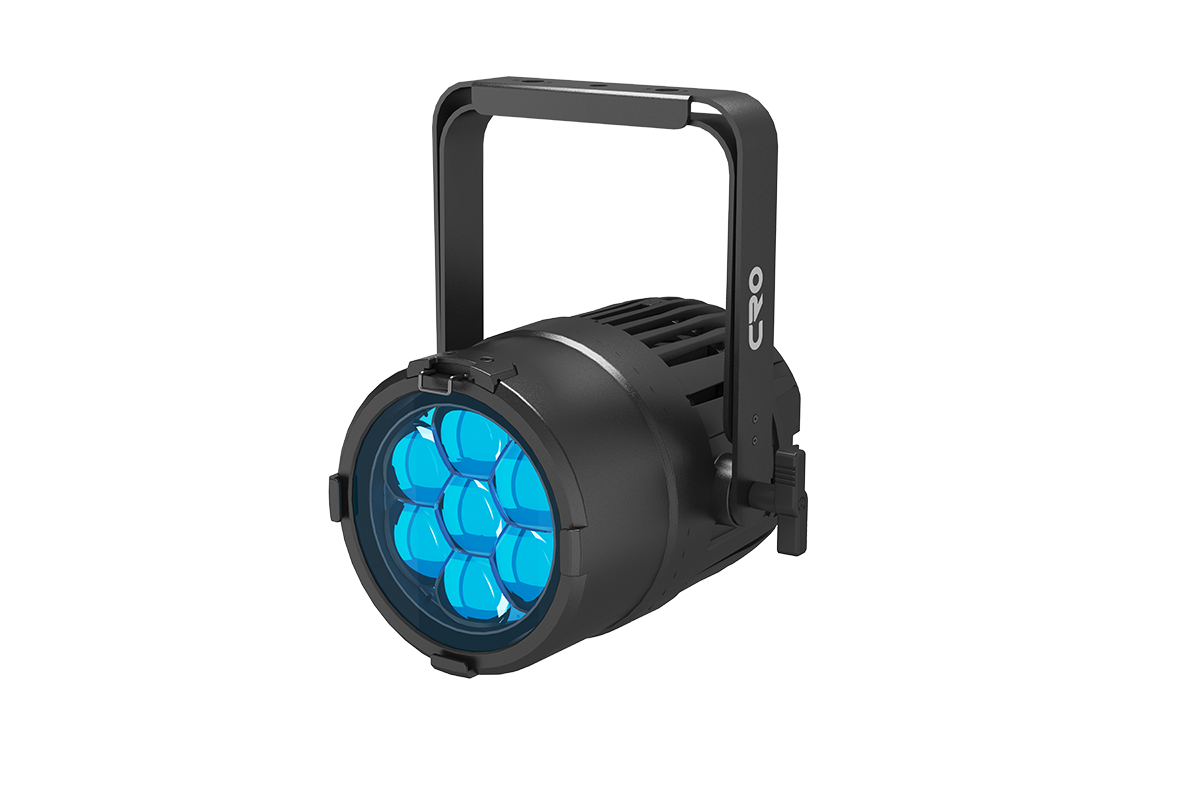

JalPar7 Quad Zoom

IP66 Par Zoom Light

JalPar7 Quad Zoom is a compact and light weight LED par zoom, delivering up to 30,600Lux@5meter, equipped with 3.2°-48° motorized zoom and extremely 24-bit smooth dimming technology, provide preset LEE colors and CCT, factory color calibration system precise retain consistency colors, durable construction and elegant design for all weathers, tailored for large indoor or outdoor applications.

● 7x50W RGBL

● 3.2°-48°

● 30,600 Lux@5meter

● IP66 Rating

SPECIFICATIONS

LIGHT SOURCE

● Light Source: 7x 50W RGBL/RGBW

● CRI: Ra≥83 @3200K (RGBL)

● CRI: Ra≥90, R9≥90 (CCT mode, RGBW)

● Lux: 30,600Lux@5meter (RGBL)

● Lux: 27,540Lux@5meter (RGBW)

● Color Temperature (range): 1800K-10000K (RGBL)

● Color Temperature (range): 2700K-8000K (RGBW)

● Life Expectancy: 50,000hours

OPTICS

● Beam Angle: 3.2°-38°

● Field Angle: 6.0°-48°

DYNAMIC EFFECTS

● Dimming: 24-bit, extremely smooth electronic dimming

● Dimmer Modes: 4 selectable dimming modes available

● Dimmer Curves: 4 selectable dimming curves available

● Strobe/Shutter: Electronic

● Strobe Rate: 0 - 30 Hz

● Color Temperature Presets: Yes

● One-push Button(Focus Mode): Yes

● Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz

CONTROL

● Protocols: DMX512, RDM, Art-Net, sACN

● DMX Channels: 1/2/4/7/8/13/14/18/9/9ch

● Firmware Upgrade: Built-in program copying function, DMX, USB-C

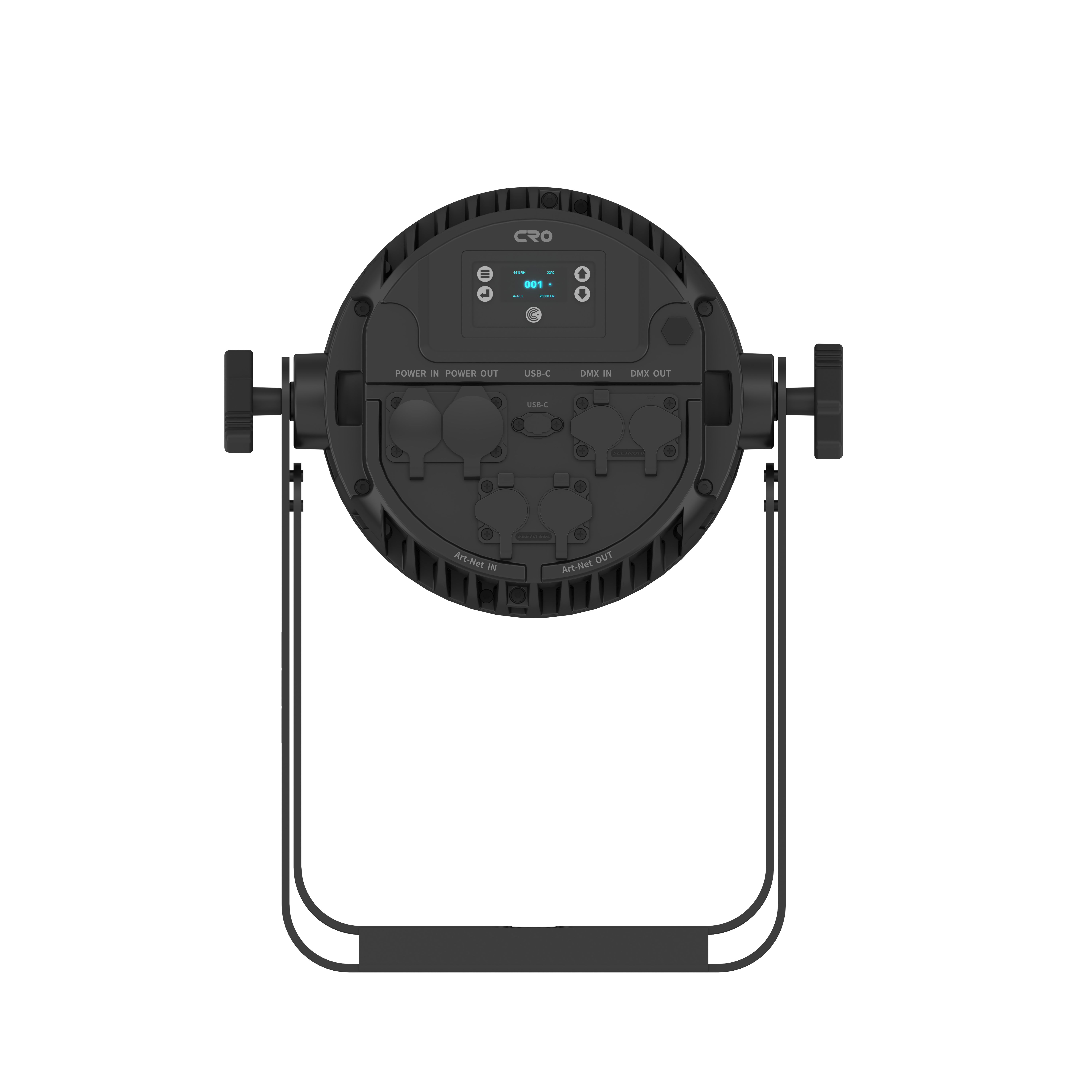

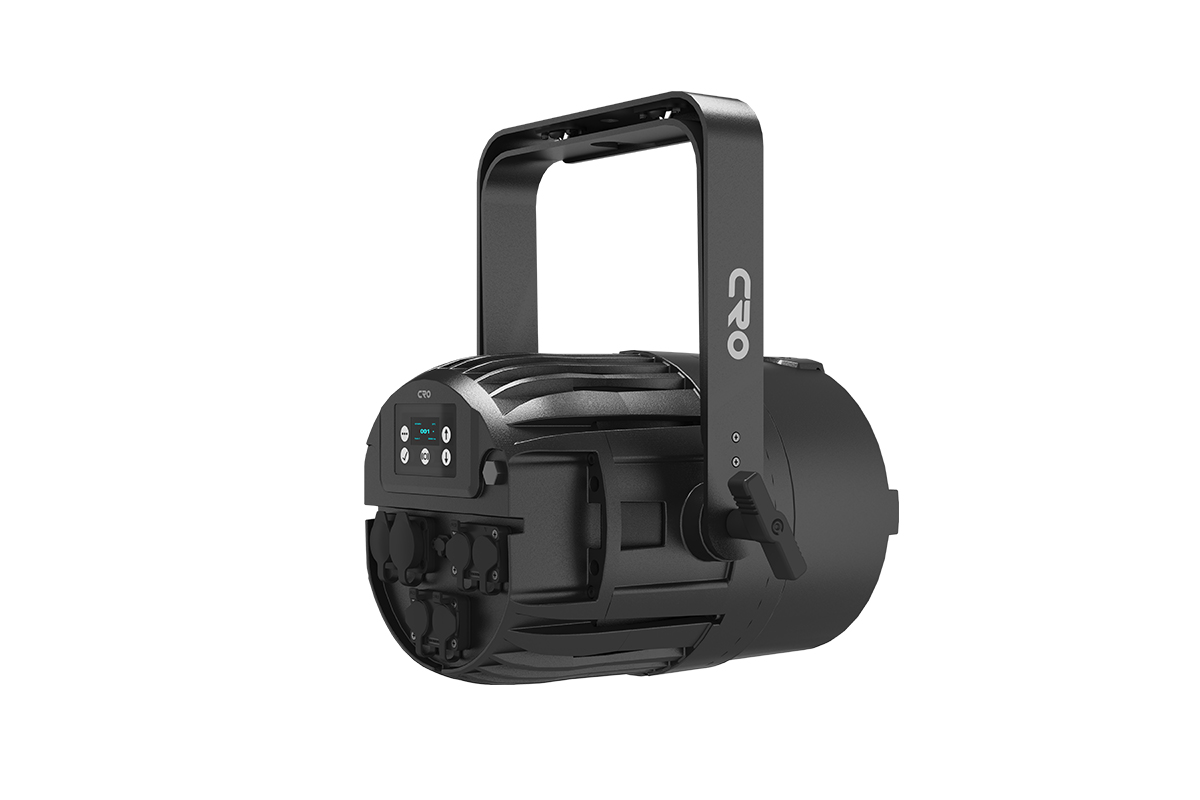

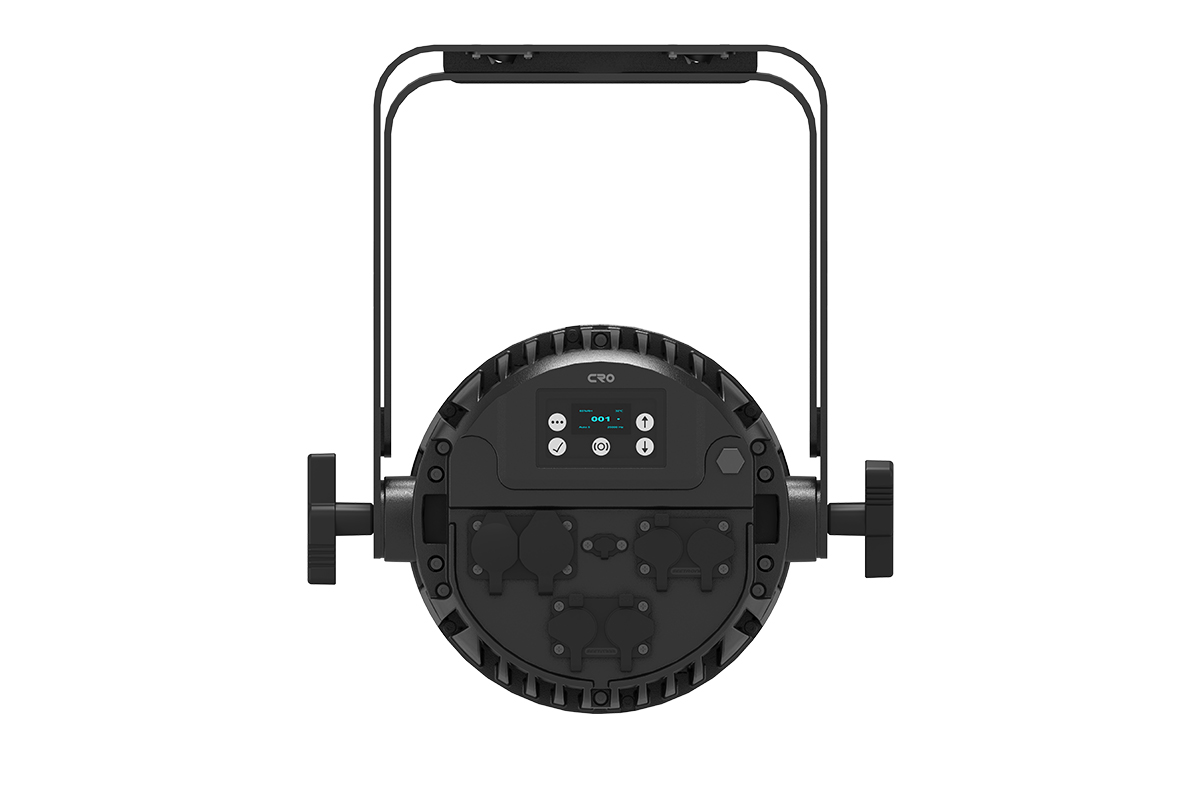

CONNECTIONS

● Power Connection: seetronic powerCON TRUE In/Out IP

● Signal Connection: seetronic 3/5-pin XLR In/Out IP

● Data Connection: IP RJ45 Ethernet In/Out

● Firmware Connection: USB-C IP

ELECTRICAL

● Input Voltage: 90-240VAC 50/60Hz

● Max power consumption: 305W

● Power and Current: 297 W, 3.24 A @ 110 V, 60 Hz

● Power and Current: 295 W, 3.22 A @ 110 V, 50 Hz

● Power and Current: 292 W, 1.53 A @ 230 V, 60 Hz

● Power and Current: 293 W, 1.54 A @ 230 V, 50 Hz

● Power Linking: 4 units @ 110 V; 8 units @ 230 V

PHYSICAL

● Housing Material: Die-cast magnesium aluminum, black

● Cooling: Temp controlled, noiseless fan for forced air

● Temperature (Ambient): 4 °F to 113 °F (-20 °C to +45 °C)

● Dimensions: 311.6x340x396mm

● Weight: 7.0kgs

● IP rating: IP66

CERTIFICATIONS

● Certifcations: CE, RoHS

Standard Included

● 1x JalPar7 Quad Zoom

● 1x Seetronic PowerCon IP65 power cord

● 1x Manual

● 1x Safety Cable

Optional Accessories

● DMX Cable IP

● IP Rated EtherCon Cable

● OMEGA

● Clamp

● Flight case

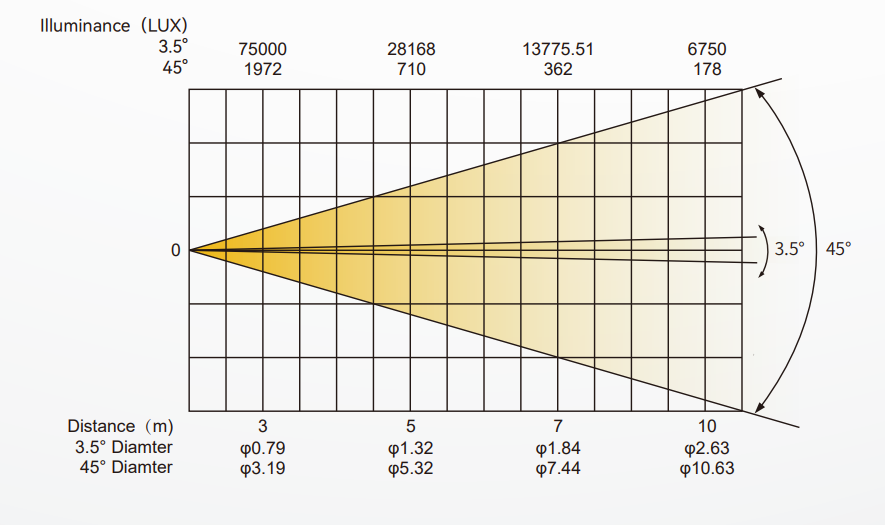

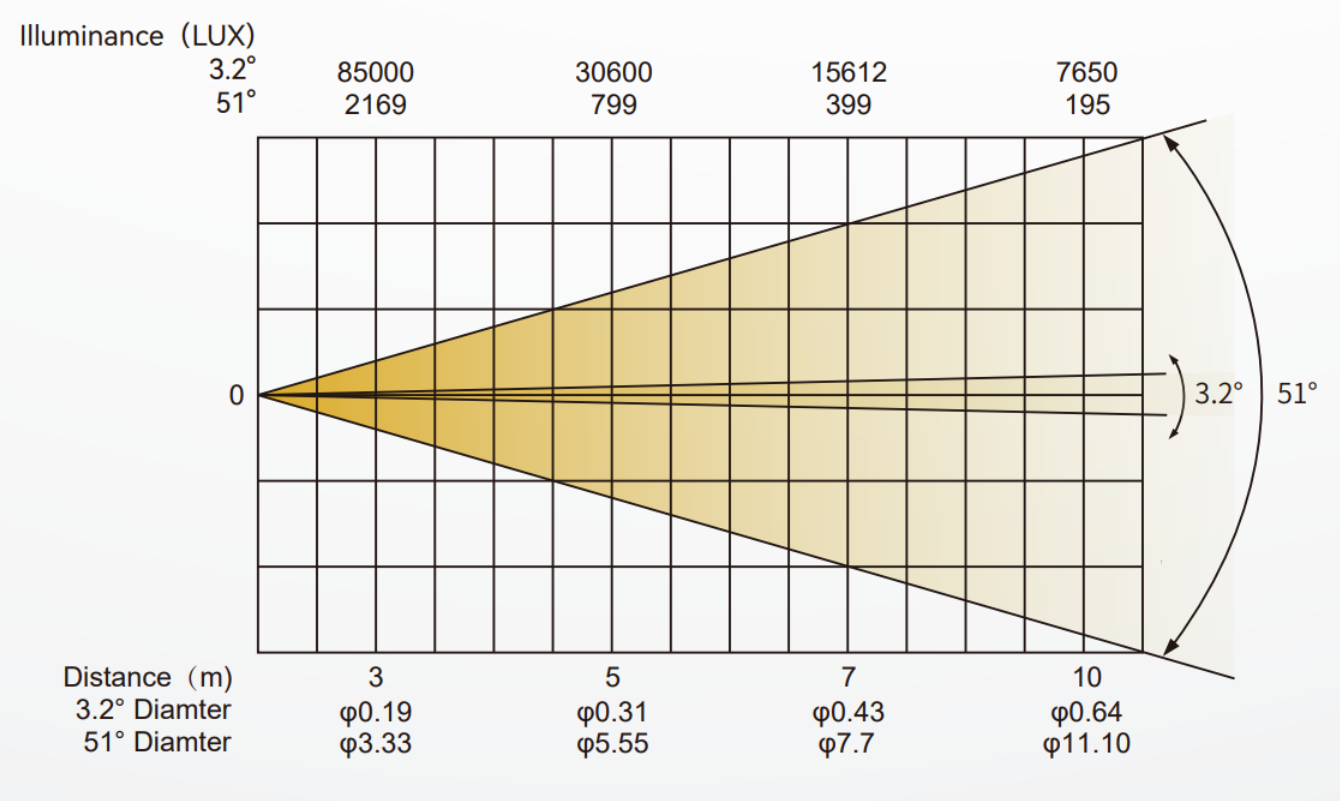

PHOTOMETRICS

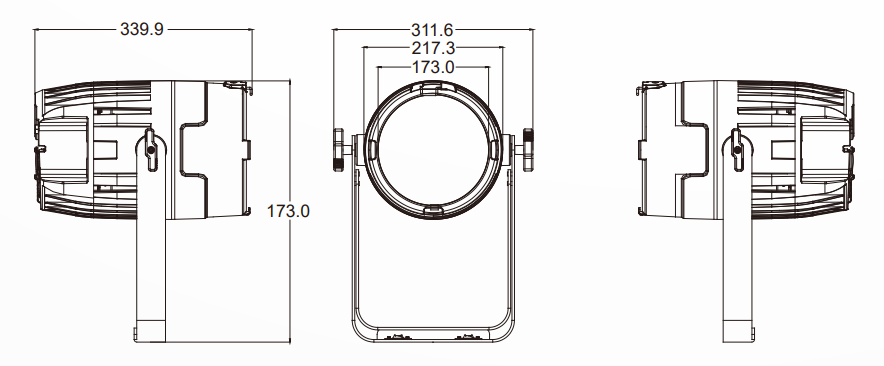

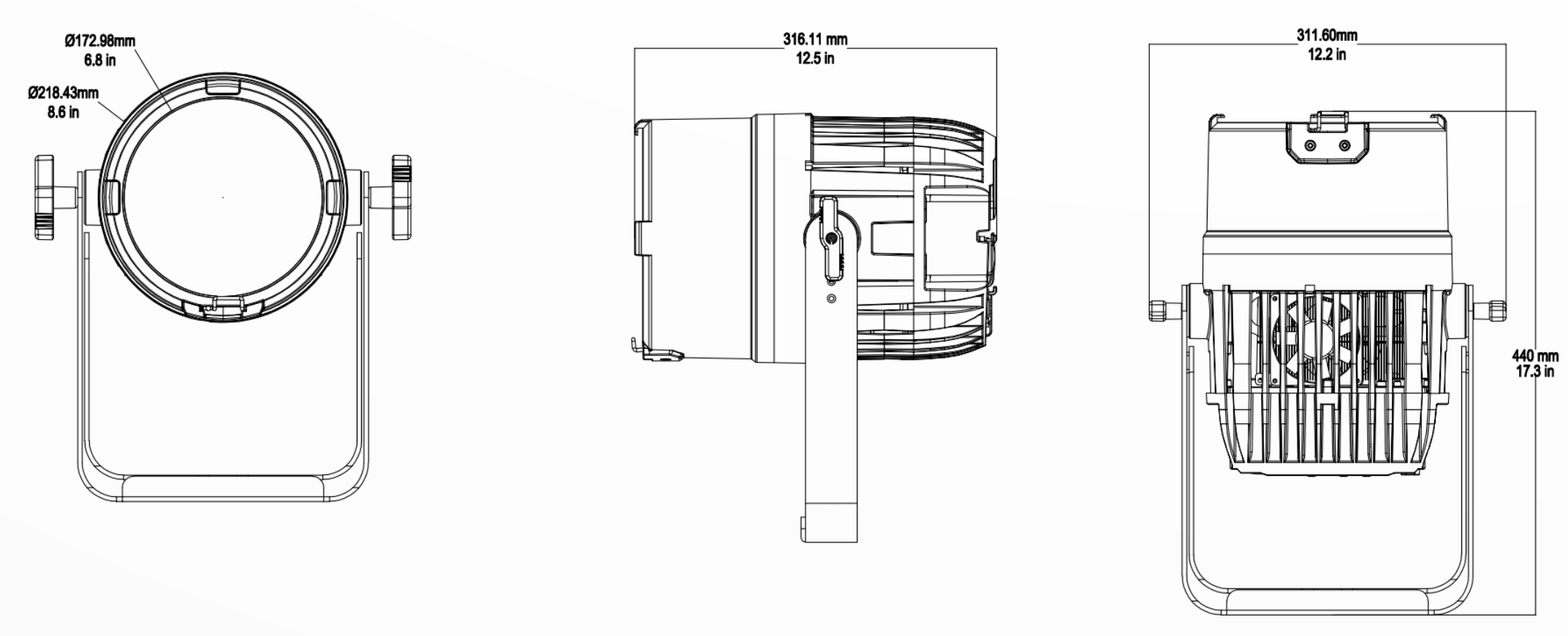

DIMENSION

Filename	size	Uploaded	Download
Datasheet
JalPar7 Quad Zoom data sheet.pdf	966kb	2026-08-13
