Dino C1

IP66 Spot & Strobe

Dino C1 is a compact full-color-spectrum LED spot light, delivering up to 64,100Lm equipped with customzied 23° can be a dazzling and diverse sections effect, extremely 24-bit smooth dimming technology, durable construction and elegant design for all weathers, perfect for big events, concerts.

● 192x15W RGBW LEDs

● 64,100Lm

● 23°

● IP66 Rating

SPECIFICATIONS

LIGHT SOURCE

● Light Source: 192*15W RGBW LEDs (optional RGBL)

● CRI: Ra≥85 @3200K

● Luminous flux: 64,100Lm

● Lux: 7,800Lux@5meter

● Color Temperature (range): 2700K-800K

● Life Expectancy: 50,000hours

OPTICS

● Beam Angle: 23°

● Field Angle: 39°

DYNAMIC EFFECTS

● Dimming: 24-bit, extremely smooth electronic dimming

● Dimmer Modes: 4 selectable dimming modes available

● Dimmer Curves: 4 selectable dimming curves available

● Strobe/Shutter: Electronic

● Strobe Rate: 0 - 30 Hz

● Color Temperature Presets: Yes

● Section control: 4x4 section controls

● Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz

CONTROL

● Protocols: DMX512, RDM, optional(Art-Net, sACN)

● DMX Channels: 1/7/8/67/68ch

● Firmware Upgrade: Built-in program copying function, DMX, USB-C

CONNECTIONS

● Power Connection: seetronic powerCON TRUE In/Out IP65

● Signal Connection: seetronic 3/5-pin XLR In/Out IP65

● Data Connection: IP65 RJ45 Ethernet In/Out(optional)

● Firmware Connection: USB-C

ELECTRICAL

● Input Voltage: 90-240VAC 50/60Hz

● Max power consumption: 1380W

● Power and Current: 1380 W, 12.54 A @ 110 V, 60 Hz

● Power and Current: 1377 W, 12.51 A @ 110 V, 50 Hz

● Power and Current: 1379 W, 5.99 A @ 230 V, 60 Hz

● Power and Current: 1376 W, 5.98 A @ 230 V, 50 Hz

● Power Linking: 3 units @ 110 V; 6 units @ 230 V

PHYSICAL

● Housing Material: Die-cast magnesium aluminum, black

● Cooling: Temp controlled, noiseless fan for forced air

● Temperature (Ambient): 4 °F to 113 °F (-20 °C to +45 °C)

● Dimensions: 516x198x269 mm

● Weight: 11.0kgs

● IP rating: IP66

CERTIFICATIONS

● Certifcations: CE, RoHS

Standard Included

● 1x Dino C1

● 1x Seetronic PowerCon IP65 power cord

● 1x Manual

● 1x Safety Cable

Optional Accessories

● DMX Cable IP

● IP Rated EtherCon Cable

● OMEGA

● Clamp

● Flight case

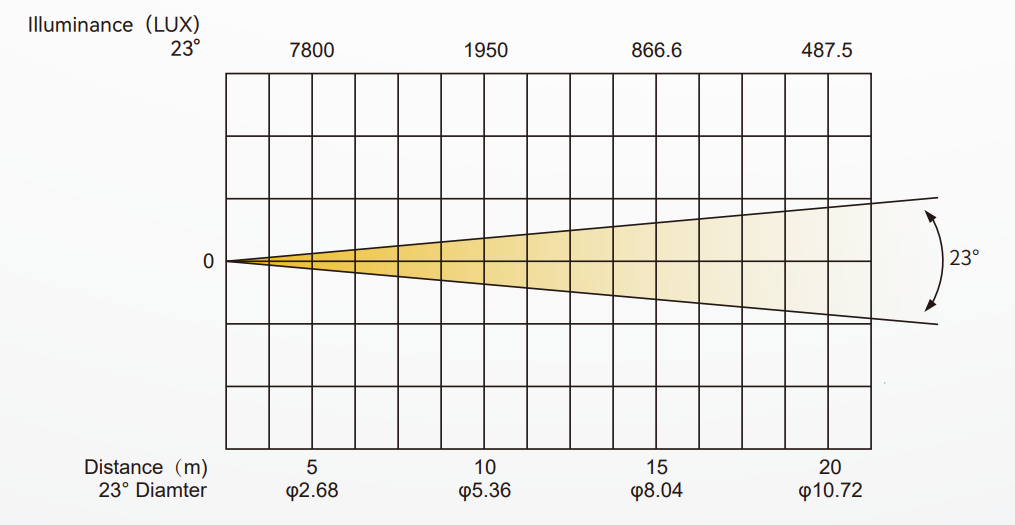

PHOTOMETRICS

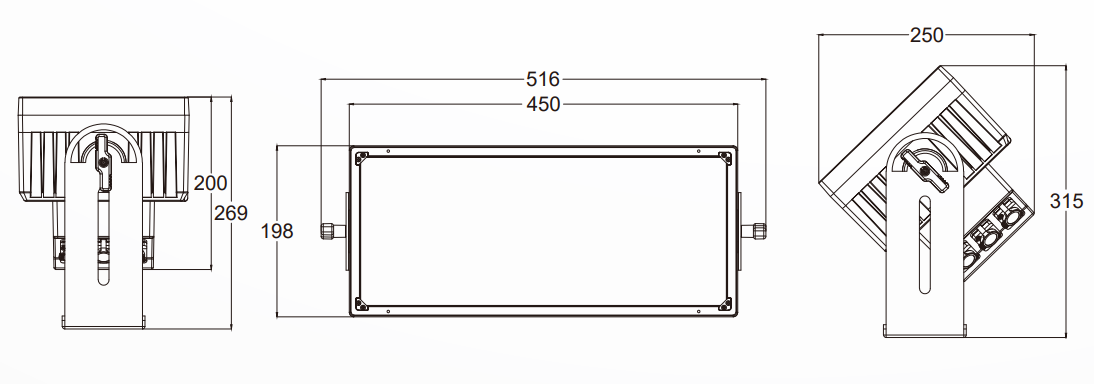

DIMENSION

Filename	size	Uploaded	Download
Datasheet
Dino C1 datasheet.pdf	2196kb	2026-04-13
