EnzoPar 8 UV

IP66 UV Par Light

EnzoPar 8 UV is a compact, lightweight, durable, and elegant design all-weather par light, carrying the 365nm True UV Diode LEDs, equipped with dedicated black filter glass, ≥70% UV light transmittance at 365 wavelengths, avaiable with 10°/25°/45°.

Perfect for a wide range of applications from live events and broadcast to theatrical productions, this fixture excels in any indoor or outdoor environment where a compact, high-performance color wash is required.

● 8x3W UV Diode LEDs

● 10° (optional 25°, 45°)

● Black filter glass: ≥70% UV light transmittance

● IP66 Rating

SPECIFICATIONS

LIGHT SOURCE

● Light Source: 8x3W UV Diode LEDs

● Wavelength: 365nm True UV Peak Wavelength

● Life Expectancy: 20,000hours

OPTICS

● Beam Angle: 10° (optional 25°, 45°)

DYNAMIC EFFECTS

● Strobe/Shutter: Electronic

● Strobe Rate: 0 - 30 Hz

CONTROL

● Protocols: DMX512, RDM

● DMX Channels: 0/1/2ch（Lights up immediately when powered on at 0ch）

● Firmware Upgrade: Built-in program copying function, DMX, USB-C

CONNECTIONS

● Power Connection: seetronic powerCON TRUE In/Out IP65

● Signal Connection: seetronic 3/5-pin XLR In/Out IP65

● Firmware Connection: USB-C

ELECTRICAL

● Input Voltage: 90-240VAC 50/60Hz

● Max power consumption: 24W

● Power and Current: 24 W, .218 A @ 110 V, 60 Hz

● Power and Current: 24 W, .218 A @ 110 V, 50 Hz

● Power and Current: 24 W, .104 A @ 230 V, 60 Hz

● Power and Current: 24 W, .104 A @ 230 V, 50 Hz

● Power Linking: 45 units @ 110 V; 95 units @ 230 V

PHYSICAL

● Housing Material: Die-cast aluminum, black

● Cooling: Convection,overheating protection

● Temperature (Ambient): 4 °F to 113 °F (-20 °C to +45 °C)

● Dimensions: 199x135x226 mm

● Weight: 2.5kgs

● IP rating: IP66

CERTIFICATIONS

● Certifcations: CE, RoHS

Standard Included

● 1x EnzoPar 8 UV

● 1x Seetronic PowerCon IP65 power cord

● 1x Manual

● 1x Safety Cable

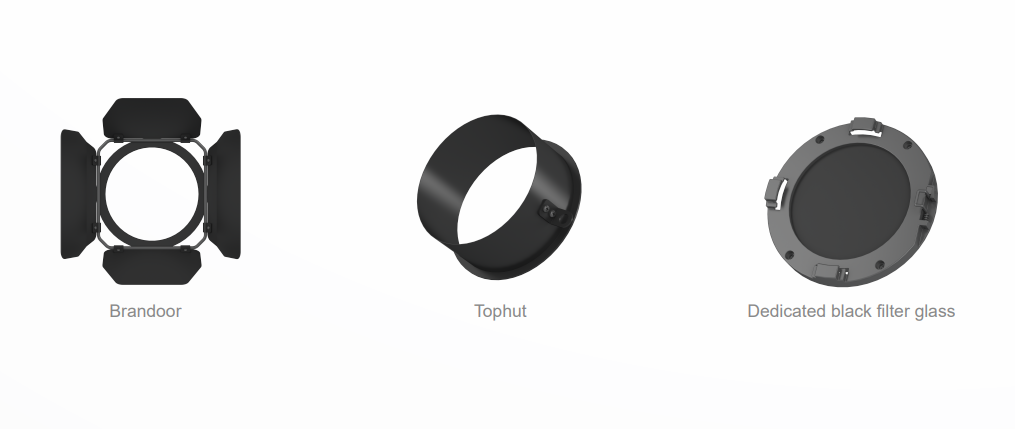

Optional Accessories

● DMX Cable IP

● OMEGA

● Dedicated black filter glass

● Brandoor

● Tophut

OPTIONAL

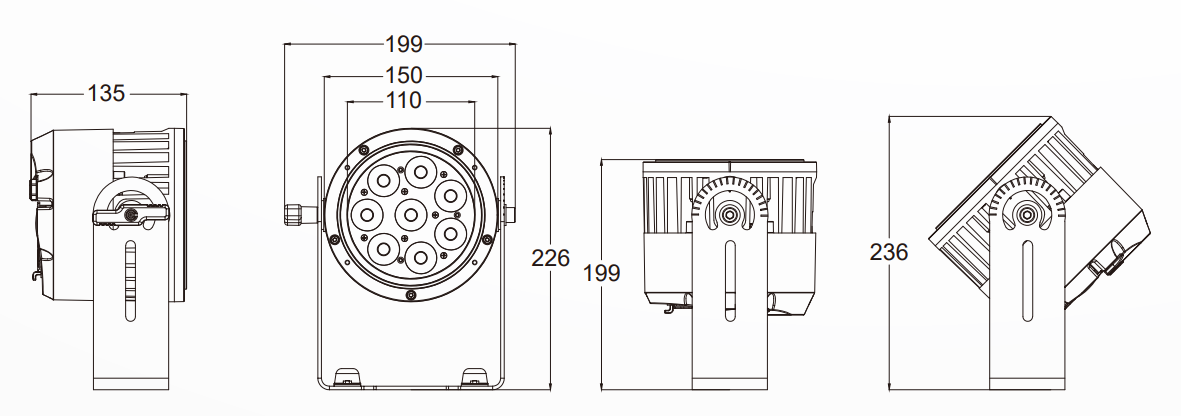

DIMENSION

Filename	size	Uploaded	Download
Datasheet
EnzoPar 8 UV datasheet.pdf	1121kb	2026-04-13
