EnzoPar 8 Quad

IP66 Par Light

EnzoPar 8 Quad is a compact, lightweight, durable, and elegant design all-weather par light, carrying RGBL/RGBW LED that delivers extreme high-output, flicker-free color with smooth 24-bit dimming.

Perfect for a wide range of applications from live events and broadcast to theatrical productions, this fixture excels in any indoor or outdoor environment where a compact, high-performance color wash is required.

● 8x10W RGBL

● 11.2°

● 1350Lux @ 5meter

● IP66 Rating

SPECIFICATIONS

LIGHT SOURCE ● Light Source: 8x 10W RGBL ● CRI: Ra≥83 @3200K ● Lux: 1350 Lux@5meter ● Color Temperature (range): 1800K-10000K ● Life Expectancy: 50,000hours OPTICS ● Beam Angle: 11.2° (optional 25°, 45°) ● Field Angle: 16.8° DYNAMIC EFFECTS ● Dimming: 24-bit, extremely smooth electronic dimming ● Dimmer Modes: 4 selectable dimming modes available ● Dimmer Curves: 4 selectable dimming curves available ● Strobe/Shutter: Electronic ● Strobe Rate: 0 - 30 Hz ● Color Temperature Presets: Yes ● Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz CONTROL ● Protocols: DMX512, RDM ● DMX Channels: 1/3/6/7/12/12/17/8/8cH ● Firmware Upgrade: Built-in program copying function, DMX, USB-C CONNECTIONS ● Power Connection: seetronic powerCON TRUE In/Out IP65 ● Signal Connection: seetronic 3/5-pin XLR In/Out IP65 ● Firmware Connection: USB-C	ELECTRICAL ● Input Voltage: 90-240VAC 50/60Hz ● Max power consumption: 84W ● Power and Current: 84 W, .763A @ 110 V, 60 Hz ● Power and Current: 83 W, .754A @ 110 V, 50 Hz ● Power and Current: 83 W, .360A @ 230 V, 60 Hz ● Power and Current: 82 W, .356A @ 230 V, 50 Hz ● Power Linking: 13 units @ 110 V; 28 units @ 230 V PHYSICAL ● Housing Material: Die-cast aluminum, black ● Cooling: Convection,overheating protection ● Temperature (Ambient): 4 °F to 113 °F (-20 °C to +45 °C) ● Dimensions: 199x135x226 mm ● Weight: 2.5kgs ● IP rating: IP66 CERTIFICATIONS ● Certifcations: CE, RoHS Standard Included ● 1x EnzoPar 8 Quad ● 1x Seetronic PowerCon IP65 power cord ● 1x Manual ● 1x Safety Cable Optional Accessories ● DMX Cable IP ● OMEGA ● Accessory holder ● Brandoor ● Tophut ● Diffuser(15°x1°,30°,50°,60°)

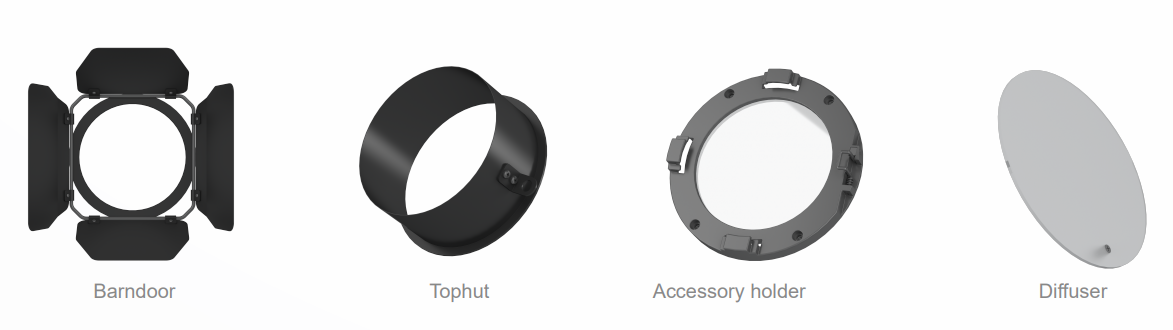

OPTIONAL

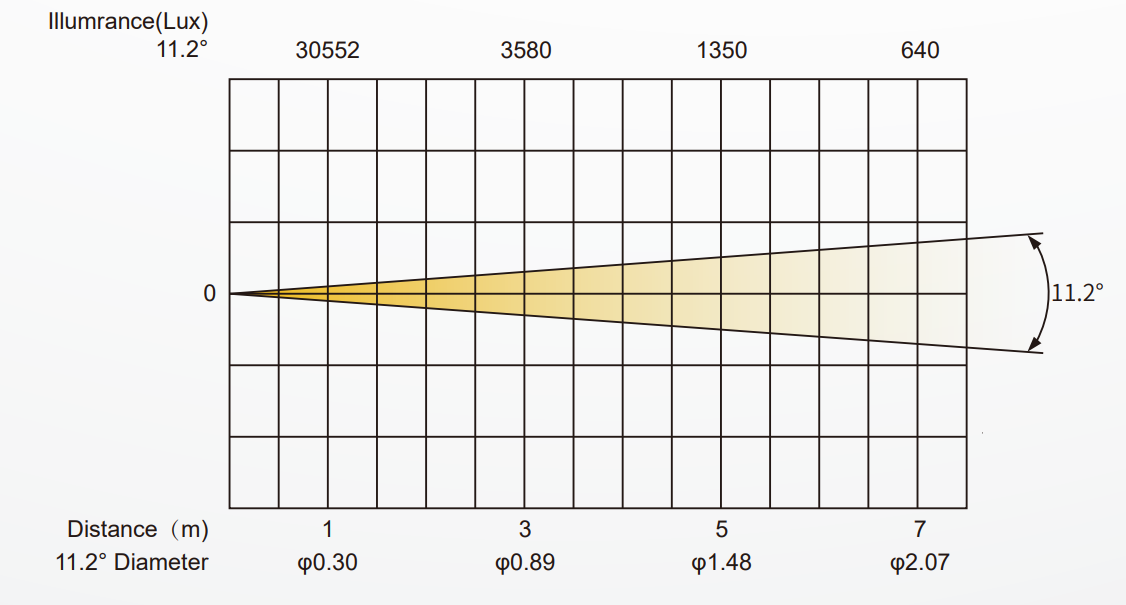

PHOTOMETRICS

DIMENSION

Filename	size	Uploaded	Download
Datasheet
EnzoPar 8 Qaud datasheet.pdf	1197kb	2026-04-13
